testo 550i - Heat pump kit

testo 550i - Heat pump kit

300564 3550 02

testo 550i - Heat pump kit

300564 3550 02

Compact design designed for control via smartphone/tablet

IP54 protection for outdoor use

Suitable for use on monobloc or split heat pump systems

Supplied with testo 770-3 clamp meter for compressor current testing

Simple digital documentation and 'on-site' reporting via bluetooth connection to free Testo Smart App.

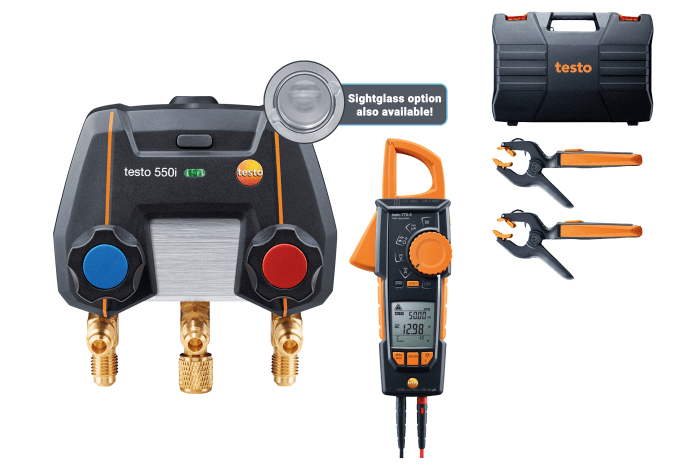

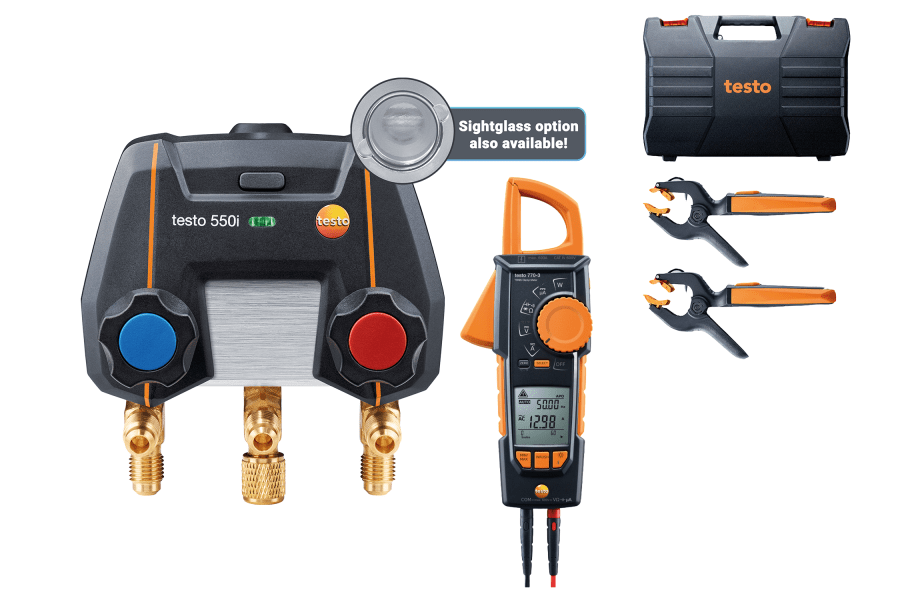

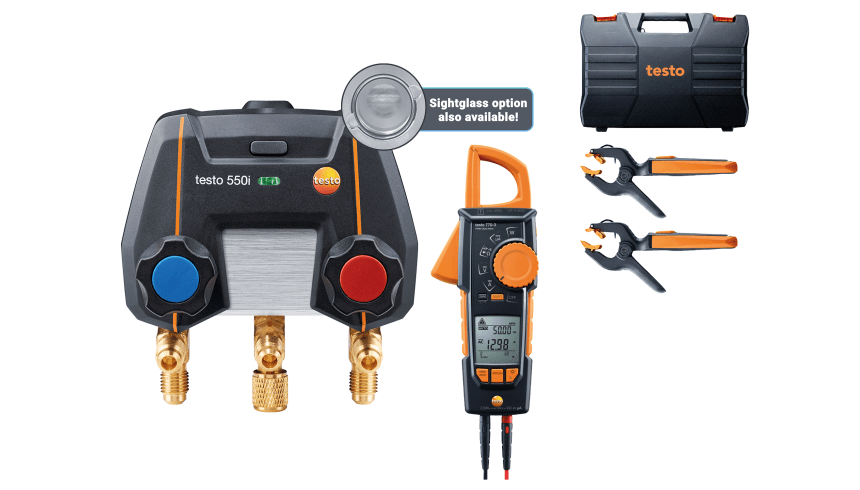

The kit for app-controlled, wireless measurements and digital documentation on your smartphone. You will get the testo 550i app-controlled digital manifold with Bluetooth, 2-way valve block and sturdy hook. For wireless temperature measurement on either flow/return pipework or for superheat/subcooling calculation, the 2 x testo 115i Smart Probes supplied allow simple and effective measurement, and the testo 770-3 clampmeter can be used for compressor current measurenet and other electrical testing. You’ll be ideally equipped to carry out your measuring tasks on either monobloc or split system Heat Pumps ,and the kit can also be used for general refrigeration and air-conditining service applications as well.

testo 550i digital 2-way manifold (without sightglass) including batteries (3 x AAA) and calibration protocol for use with testo Smart App (free download).
2 x testo 115i bluetooth pipe clamp thermometers
1 x testo 770-3 clampmeter
Carry case
User guides

All activities, from measurement through to documentation, using the testo Smart App on your Smartphone

: 0564 2550 02

Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet

: 0560 2115 02

Easy to operate thanks to the fully retractable pincer arm

: 0590 7703

All in one: One app for all Bluetooth^®-enabled Testo measuring instruments for air conditioning/refrigeration systems and heat pumps

: 0501 5001

All activities, from measurement through to documentation, using the testo Smart App on your Smartphone

0564 2550 02

Pressure measurement

Measuring range	-1 to 60 bar
Accuracy	±0.5 % fs
Resolution	0.01 bar
Probe connection	3 x 7/16" – UNF
Overload rel. (high pressure)	65 bar

General technical data

Weight	595 g
Dimensions	77 x 109 x 63 mm
Operating temperature	-10 to +50 °C
Protection class	IP54
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	Black
Auto-off	10
Battery life	130 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®
Radio range	150 m
Refrigerants in instrument	R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
Refrigerants update via App	R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
Refrigerant	A2L / A3 compatibel
Storage temperature	-20 to +60 °C
* when not connected via Bluetooth

Convenient temperature measurement on refrigeration, air conditioning and heating systems – thanks to wireless connection to your smartphone or tablet

0560 2115 02

Temperature - NTC

Measuring range	-40 to +150 °C
Accuracy	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C

General technical data

Weight	127.4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®
Radio range	100 m
Refrigerant	A2L / A3 compatibel
Storage temperature	-20 to +60 °C

Easy to operate thanks to the fully retractable pincer arm

0590 7703

Temperature - TC Type K (NiCr-Ni)

Measuring range	-20 to +500 °C
Accuracy	±1 °C (0 to +100 °C)
Resolution	0.2 °C

DC voltage

Measuring range	1.0 to 600.0 V
Resolution	max. 1 mV
Accuracy	± (0.8 % of mv + 3 Digit)

AC voltage

Measuring range	1.0 mV to 600.0 V
Resolution	max. 1 mV
Accuracy	± (1 % of mv + 3 Digit)

DC current

Measuring range	0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.1 (clamp) 0.1 (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)

AC current

Measuring range	0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.1 A (clamp) 0.1 μA (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables)

Resistance

Resolution	max. 0.01 Ohm
Measuring range	0.01 to 60.0 MOhm
Accuracy	± (1.5 % of mv + 3 Digit)

Capacitance

Resolution	max. 0.01 nF
Measuring range	2 nF to 60.00 mF
Accuracy	± (1.5 % of mv + 5 Digit)

Frequency

Resolution	max. 0.1 Hz
Measuring range	0.01 Hz to 9999 kHz
Accuracy	± (1 % of mv + 1 Digit)

Active Power

Measuring range	0.1 W to 600 kW
Accuracy	± (5 % of mv + 5 Digit)
Resolution	0.1 W

Reactive Power

Measuring range	0.1 to 600.0 kvar
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.1 var

Apparent Power

Measuring range	0.1 VA to 600.0 kVA
Accuracy	± 1 Digit
Resolution	0.1 VA

Direct current DC Voltage

Measuring range	0.1 W to 600.0 kW
Accuracy	± 1 Digit
Resolution	max. 0.1 W

Power Factor

Measuring range	-1.00 to +1.00
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.01

General technical data

Operating humidity	0 to 80.0 %RH
Weight	378 g
Dimensions	249 x 96 x 43 mm
Operating temperature	-10 to +50 °C
Connectable probes	1 x temperature probe (adapter required for type K thermocouples)
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	Black
Standards	EN 61326-1; EN 61010-2-032; EN 61140
Battery type	3 AAA micro batteries
Display type	LCD (Liquid Crystal Display)
Display size	2 lines
Interface	2 measuring jacks
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE
Internal_resistance	11 MOhm (AC / DC)

Instrument Measurement Functions

Diode test	yes
Continuity testing	yes
Display ligthing	yes
Hold	yes
MinMax	yes
Power Measurement	yes
Temperature measurement with adapter	yes
True RMS	yes
Inrush current measurement	yes
Bluetooth	yes
Display (counts)	6,000
μA current measuring range	yes
Autom. measurement parameter detection	yes

All in one: One app for all Bluetooth^®-enabled Testo measuring instruments for air conditioning/refrigeration systems and heat pumps

0501 5001
