testo 550s - Heat pump kit
300564 5502 02testo 550s - Heat pump kit
300564 5502 02Large graphic display allows all measurement values at a glance. IP54 protection for use outdoors.
Test menu sequences for pressure leak test, vacuum, discharge line temperature, and target superheat
(note - requires testo 552i vacuum probe for vacuum measurement)
(note - requires testo 552i vacuum probe for vacuum measurement)
Suitable for use on monobloc or split heat pump systems
Supplied with testo 770-3 clamp meter for compressor current testing and testo 560i digital scales for refrigerant charging
Simple digital documentation and 'on-site' reporting via bluetooth coonnection to free Testo Smart App.

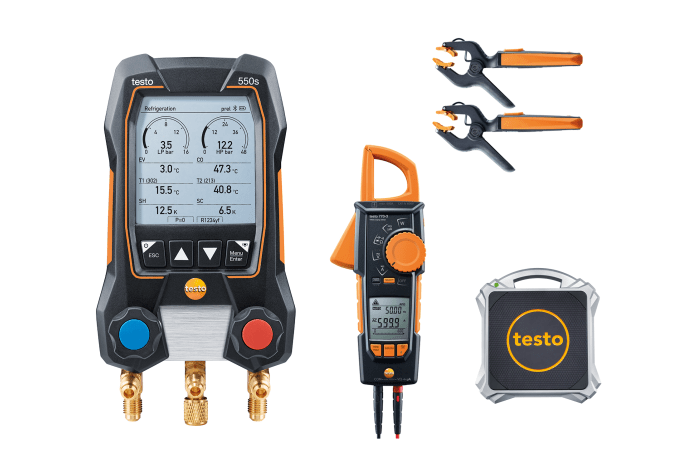

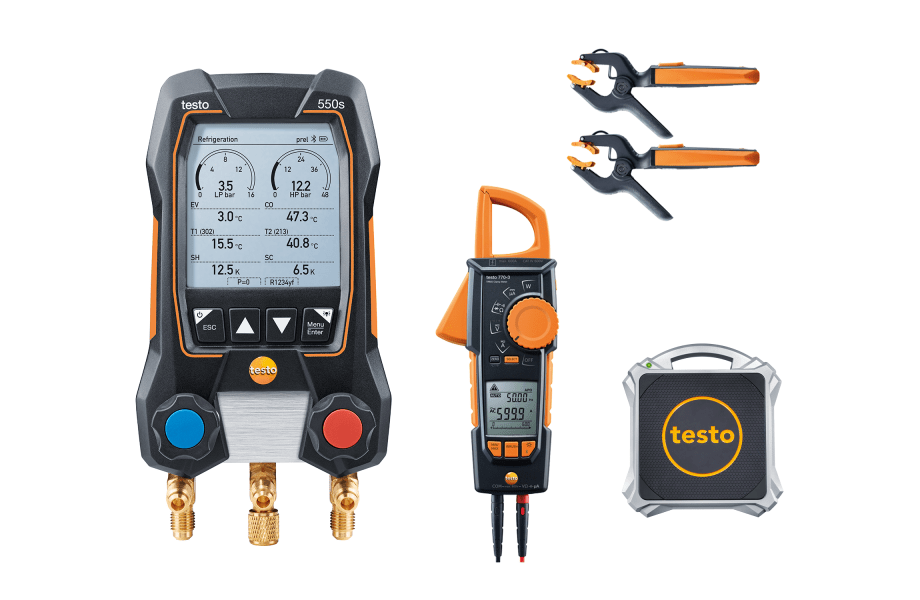

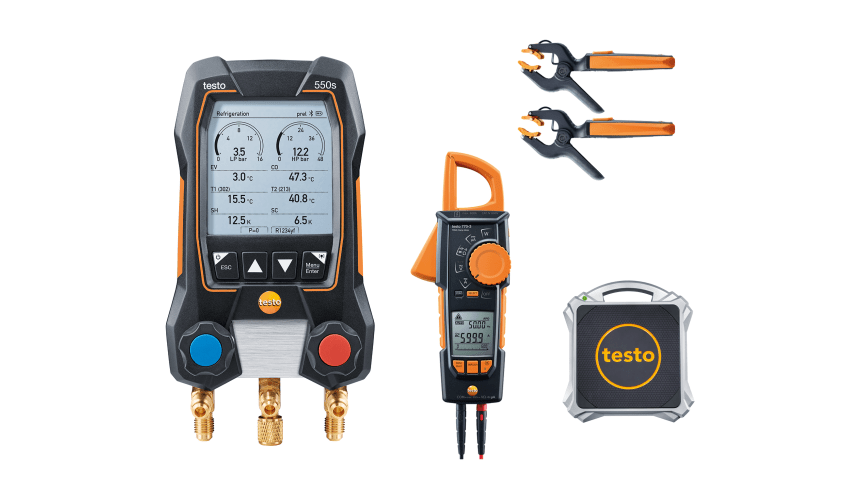

With this kit, you’ll be ready to start your measurements in the commissioning, servicing and maintenance of heat pumps, refrigeration, or air-conditioning systems straight away: You will get the testo 550s smart digital manifold with Bluetooth and 2-way valve block, two testo 115i bluetooth temperature pipe clamp probes allow simple measurement of superheat and subcool values. The testo 770-3 clampmeter can be used for compressor current measurement, and completing the package is the testo 560i digital refrigerant scales for accurate and effective charging of refrigerants via weight.
- testo 550s digital 2-way manifold (without sightglass) including batteries (4 x AA) and calibration protocol. Bluetooth connection use with testo Smart App (free download).
- 2 x testo 115i bluetooth pipe clamp thermometers
- 1 x testo 770-3 clampmeter
- 1 x testo 560i digital refrigerant scale set
- Carry case
- User guides
Temperature - NTC
| Measuring range | -40 to +150 °C |
|---|---|
| Accuracy | ±1.3 °C (-20 to +85 °C) |
| Resolution | 0.1 °C |
General technical data
| Weight | 127.4 g |
|---|---|
| Dimensions | 183 x 90 x 30 mm |
| Operating temperature | -20 to +50 °C |
| Product-/housing material | Plastic |
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | black/orange |
| Battery type | 3 AAA micro batteries |
| Battery life | 150 h |
| Data transfer | Bluetooth® |
| Radio range | 100 m |
| Storage temperature | -20 to +60 °C |
Temperature - TC Type K (NiCr-Ni)
| Measuring range | -20 to +500 °C |
|---|---|
| Accuracy | ±1 °C (0 to +100 °C) |
| Resolution | 0.2 °C |
DC voltage
| Measuring range | 1.0 to 600.0 V |
|---|---|
| Resolution | max. 1 mV |
| Accuracy | ± (0.8 % of mv + 3 Digit) |
AC voltage
| Measuring range | 1.0 mV to 600.0 V |
|---|---|
| Resolution | max. 1 mV |
| Accuracy | ± (1 % of mv + 3 Digit) |
DC current
| Measuring range | 0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) |
|---|---|
| Resolution | 0.1 (clamp) 0.1 (measuring cables) |
| Accuracy | ± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp) |
AC current
| Measuring range | 0.1 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables) |
|---|---|
| Resolution | 0.1 A (clamp) 0.1 μA (measuring cables) |
| Accuracy | ± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables) |
Resistance
| Resolution | max. 0.01 Ohm |
|---|---|
| Measuring range | 0.01 to 60.0 MOhm |
| Accuracy | ± (1.5 % of mv + 3 Digit) |
Capacitance
| Resolution | max. 0.01 nF |
|---|---|
| Measuring range | 2 nF to 60.00 mF |
| Accuracy | ± (1.5 % of mv + 5 Digit) |
Frequency
| Resolution | max. 0.1 Hz |
|---|---|
| Measuring range | 0.01 Hz to 9999 kHz |
| Accuracy | ± (1 % of mv + 1 Digit) |
Active Power
| Measuring range | 0.1 W to 600 kW |
|---|---|
| Accuracy | ± (5 % of mv + 5 Digit) |
| Resolution | 0.1 W |
Reactive Power
| Measuring range | 0.1 to 600.0 kvar |
|---|---|
| Accuracy | ± (10 % of mv + 5 Digit) |
| Resolution | 0.1 var |
Apparent Power
| Measuring range | 0.1 VA to 600.0 kVA |
|---|---|
| Accuracy | ± 1 Digit |
| Resolution | 0.1 VA |
Direct current DC Voltage
| Measuring range | 0.1 W to 600.0 kW |
|---|---|
| Accuracy | ± 1 Digit |
| Resolution | max. 0.1 W |
Power Factor
| Measuring range | -1.00 to +1.00 |
|---|---|
| Accuracy | ± (10 % of mv + 5 Digit) |
| Resolution | 0.01 |
General technical data
| Operating humidity | 0 to 80.0 %RH |
|---|---|
| Weight | 378 g |
| Dimensions | 249 x 96 x 43 mm |
| Operating temperature | -10 to +50 °C |
| Connectable probes | 1 x temperature probe (adapter required for type K thermocouples) |
| System requirements | requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0 |
| Product colour | Black |
| Standards | EN 61326-1; EN 61010-2-032; EN 61140 |
| Battery type | 3 AAA micro batteries |
| Display type | LCD (Liquid Crystal Display) |
| Display size | 2 lines |
| Interface | 2 measuring jacks |
| Storage temperature | -15 to +60 °C |
| Overvoltage Category | CAT IV 600V; CAT III 1000V |
| Authorizations | CSA; CE |
| Internal_resistance | 11 MOhm (AC / DC) |
Instrument Measurement Functions
| Diode test | yes |
|---|---|
| Continuity testing | yes |
| Display ligthing | yes |
| Hold | yes |
| MinMax | yes |
| Power Measurement | yes |
| Temperature measurement with adapter | yes |
| True RMS | yes |
| Inrush current measurement | yes |
| Bluetooth | yes |
| Display (counts) | 6,000 |
| μA current measuring range | yes |
| Autom. measurement parameter detection | yes |
General technical data
| System requirements | requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0 |
|---|---|
General technical data
| Operating humidity | 0 to 80 %RH |
|---|---|
| Weight | 4.36 kg (incl. batteries and bag) |
| Measuring range | 0 to 100 kg |
| Accuracy | Operating temperature +22 °C: ≤ ±(10 g+ 0.03 %rdg) (0 to 30 kg) ≤ ±(10 g+ 0.05 %rdg) (30 to 100 kg) |
| Resolution | 0.01 kg |
| Dimensions | 310 x 287 x 58 mm (LxWxH) |
| Operating temperature | -10 to +50 °C |
| Protection class | IP44 |
| Battery type | 4 x type AA batteries |
| Battery life | > 70 h at +25 °C |
| Interface | Bluetooth® 4.2 |
| Radio range | 30 m |
| Storage temperature | -10 to +50 °C |
Air probes
Surface probes
Thermocouples
Sets
Accessories
Transport and Protection
Refrigeration systems, air conditioning systems, heat pumps
- Determination of high and low pressure, automatic determination of condensation and evaporation temperature and calculation of superheating/subcooling. All results can be read simultaneously on one screen
- Tightness test: Recording and analysis of the pressure curve
- Automatic calculation of the target superheat (in conjunction with the appropriate measuring instrument, e.g. Testo Smart Probe)
- Measure vacuum: Graphic progression display of the measurement with indication of the start and differential value
- Evacuation: Graphic progression display of the measurement with indication of the start and differential value (in conjunction with the appropriate Testo Smart Probe, e.g. testo 552i vacuum probe)
