testo Monobloc Heat Pump Testing Kit

Overview

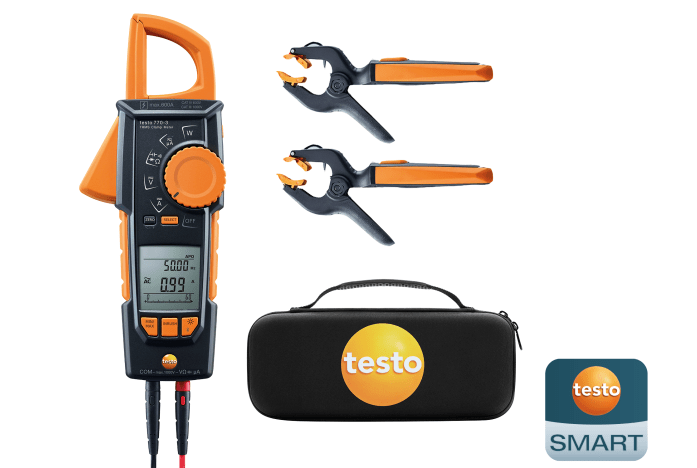

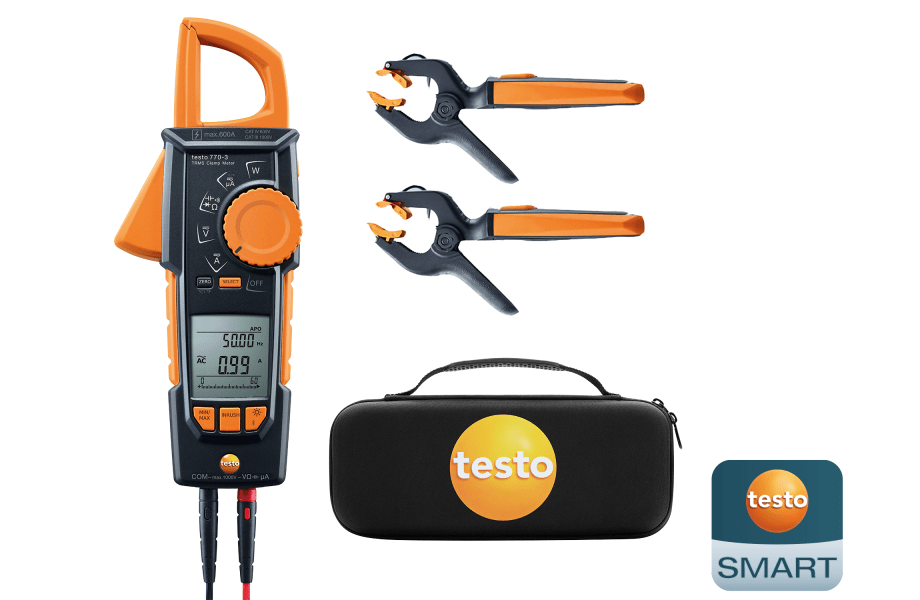

The testo Monobloc Heat Pump Testing Kit is an essential solution for engineers installing, servicing, and maintaining monobloc heat pumps. This all-in-one kit includes the testo 770-3 clamp meter for precise measurement of electrical parameters, such as voltage, current, resistance, ensuring accurate system diagnostics.

For monitoring system performance, the kit also features 2x testo 115i temperature clamp probes, designed to measure flow and return temperatures on heat pump pipework. These measurements are crucial for assessing efficiency and identifying potential issues in heat pump operation.

Smart Connectivity for Live Data & Instant Reporting

All three instruments connect via Bluetooth to the testo Smart App, allowing engineers to view real-time data directly on their smartphone. The app also enables instant report generation, improving workflow efficiency.

Portable, Durable & Built for Professionals

Housed in a rugged transport case, the testo Monobloc Heat Pump Testing Kit is designed for easy storage and portability, making it ideal for field use. With high-precision measurements, smart connectivity, and a robust design, this kit is the ultimate tool for heat pump professionals looking for efficiency, accuracy, and convenience.

Measuring range	-40 to +150 °C
Accuracy	±1.3 °C (-20 to +85 °C)
Resolution	0.1 °C

Measuring range

-40 to +150 °C

Accuracy

±1.3 °C (-20 to +85 °C)

Resolution

0.1 °C

Weight	127.4 g
Dimensions	183 x 90 x 30 mm
Operating temperature	-20 to +50 °C
Product-/housing material	Plastic
System requirements	requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery life	150 h
Battery type	3 AAA micro batteries
Data transfer	Bluetooth®
Radio range	100 m
Refrigerant	A2L / A3 compatibel
Storage temperature	-20 to +60 °C

Weight

127.4 g

Dimensions

183 x 90 x 30 mm

Operating temperature

-20 to +50 °C

Product-/housing material

Plastic

System requirements

requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery life

150 h

Battery type

3 AAA micro batteries

Data transfer

Bluetooth®

Radio range

100 m

Refrigerant

A2L / A3 compatibel

Storage temperature

-20 to +60 °C

Measuring range	-20 to +500 °C
Accuracy	±1 °C (0 to +100 °C)
Resolution	0.2 °C

Measuring range

-20 to +500 °C

Accuracy

±1 °C (0 to +100 °C)

Resolution

0.2 °C

Measuring range	1.0 to 1000.0 V
Resolution	max. 1 mV
Accuracy	± (0.8 % of mv + 3 Digit)

Measuring range

1.0 to 1000.0 V

Resolution

max. 1 mV

Accuracy

± (0.8 % of mv + 3 Digit)

Measuring range	1.0 mV to 1000.0 V
Resolution	max. 1 mV
Accuracy	± (1 % of mv + 3 Digit)

Measuring range

1.0 mV to 1000.0 V

Resolution

max. 1 mV

Accuracy

± (1 % of mv + 3 Digit)

Measuring range	0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.1 (clamp) 0.1 (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)

Measuring range

0.01 to 600.0 A (clamp)

0.1 to 600.0 μA (measuring cables)

Resolution

0.1 (clamp)

0.1 (measuring cables)

Accuracy

± (2 % of mv + 5 Digit) (measuring cables)

± (2 % of mv + 5 Digit) (clamp)

Measuring range	0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.01 A (clamp) 0.1 μA (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (clamp) ± (1.5 % of mv + 5 Digit) (measuring cables)

Measuring range

0.01 to 600.0 A (clamp)

0.1 to 600.0 μA (measuring cables)

Resolution

0.01 A (clamp)

0.1 μA (measuring cables)

Accuracy

± (2 % of mv + 5 Digit) (clamp)

± (1.5 % of mv + 5 Digit) (measuring cables)

Resolution	max. 0.01 Ohm
Measuring range	0.10 to 60.0 MOhm
Accuracy	± (1.5 % of mv + 3 Digit)

Resolution

max. 0.01 Ohm

Measuring range

0.10 to 60.0 MOhm

Accuracy

± (1.5 % of mv + 3 Digit)

Resolution	max. 0.01 nF
Measuring range	0.001 μF to 60000.00 μF
Accuracy	± (1.5 % of mv + 5 Digit)

Resolution

max. 0.01 nF

Measuring range

0.001 μF to 60000.00 μF

Accuracy

± (1.5 % of mv + 5 Digit)

Resolution	max. 0.1 Hz
Measuring range	0.00 Hz to -10 kHz
Accuracy	± (1 % of mv + 1 Digit)

Resolution

max. 0.1 Hz

Measuring range

0.00 Hz to -10 kHz

Accuracy

± (1 % of mv + 1 Digit)

Measuring range	0.1 W to 600 kW
Accuracy	± (5 % of mv + 5 Digit)
Resolution	0.1 W

Measuring range

0.1 W to 600 kW

Accuracy

± (5 % of mv + 5 Digit)

Resolution

0.1 W

Measuring range	0.1 to 600.0 kvar
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.1 var

Measuring range

0.1 to 600.0 kvar

Accuracy

± (10 % of mv + 5 Digit)

Resolution

0.1 var

Measuring range	0.1 VA to 600.0 kVA
Accuracy	± 1 Digit
Resolution	0.1 VA

Measuring range

0.1 VA to 600.0 kVA

Accuracy

± 1 Digit

Resolution

0.1 VA

Measuring range	0.1 W to 600.0 kW
Accuracy	± 1 Digit
Resolution	max. 0.1 W

Measuring range

0.1 W to 600.0 kW

Accuracy

± 1 Digit

Resolution

max. 0.1 W

Measuring range	-1.00 to +1.00
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.01

Measuring range

-1.00 to +1.00

Accuracy

± (10 % of mv + 5 Digit)

Resolution

0.01

Operating humidity	0 to 80.0 %RH
Weight	378 g
Dimensions	249 x 96 x 43 mm
Operating temperature	-10 to +50 °C
Connectable probes	1 x temperature probe (adapter required for type K thermocouples)
Product colour	Black
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Standards	EN 61326-1; EN 61010-2-032; EN 61140
Battery type	3 AAA micro batteries
Display size	2 lines
Display type	LCD (Liquid Crystal Display)
Interface	2 measuring jacks
Storage temperature	-15 to +60 °C
Overvoltage Category	CAT IV 600V; CAT III 1000V
Authorizations	CSA; CE
Internal_resistance	11 MOhm (AC / DC)

Operating humidity

0 to 80.0 %RH

Weight

378 g

Dimensions

249 x 96 x 43 mm

Operating temperature

-10 to +50 °C

Connectable probes

1 x temperature probe (adapter required for type K thermocouples)

Product colour

Black

System requirements

requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0

Standards

EN 61326-1; EN 61010-2-032; EN 61140

Battery type

3 AAA micro batteries

Display size

2 lines

Display type

LCD (Liquid Crystal Display)

Interface

2 measuring jacks

Storage temperature

-15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CSA; CE

Internal_resistance

11 MOhm (AC / DC)

Diode test	yes
Continuity testing	yes
Display ligthing	yes
Hold	yes
MinMax	yes
Power Measurement	yes
Temperature measurement with adapter	yes
True RMS	yes
Inrush current measurement	yes
Bluetooth	yes
Display (counts)	6,000
Autom. measurement parameter detection	yes
μA current measuring range	yes

Diode test

yes

Continuity testing

yes

Display ligthing

yes

Hold

yes

MinMax

yes

Power Measurement

yes
