Globe Probe - Globe Probe

Order-Nr.  0602 0743

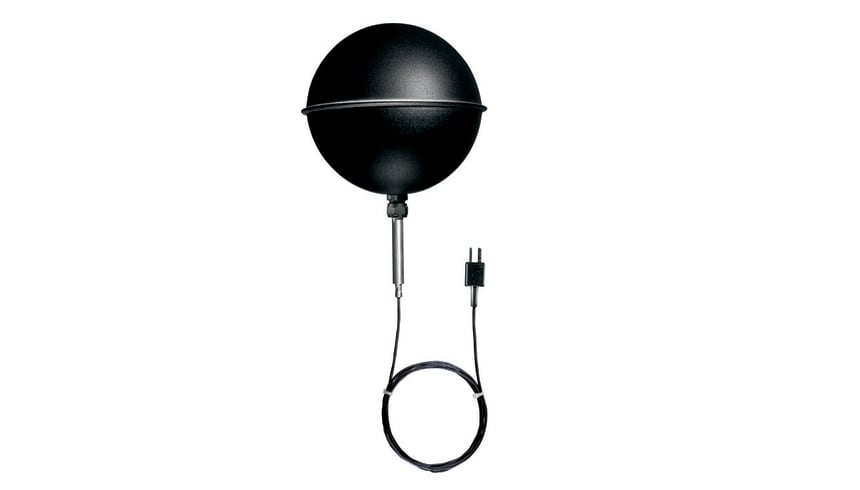

  • Globe-Thermometer ~ 150 mm, TE Typ K, zum Messen der Strahlung
Where to buy
1-484-773-0111
Inquiry

  • For the measurement of radiant heat according to ISO 7243, ISO 7726, DIN EN 27726 and DIN 33403

  • Thermocouple type K

  • Measuring range: 0 to + 120 °C

Designed to simulate human skin, the globe probe will measure thermal radiant temperature. The 6" globe probe will take omnidirectional temperature measurements, ensuring a proper comfort level can be achieved. Globe probe has a Type K thermocouple.

Details

Product Description

Thermal comfort is a crucial factor in terms of a person's physical and mental capabilities – and should be ensured through regular measurements of the individual parameters directly at the workplace.

In combination with an appropriate measuring instrument, the globe thermometer (thermocouple type K) enables standard-compliant determination and checking of the radiant heat parameter. For example, if a significant temperature difference between the ambient and globe temperature is detected, the cause could be high solar radiation through the window.

The hollow sphere has a diameter of 150 mm and there is a thermocouple type K at its centre for measuring the temperature.

Delivery Scope

Globe thermometer (Ø 150 mm, TC type K) with 1.45 m fixed cable.

Related products

Technical Data

Temperature - Type K TC

Measuring range

32.0° to 248.0 °F / 0 to +120 °C

Accuracy

Class 1 ¹⁾

1) According to standard EN 60584-1, the accuracy of Class 1 refers to -40 to +1000 °C (Type K), Class 2 to -40 to +1200 °C (Type K), Class 3 to -200 to +40 °C (Type K).

General technical data

Weight

13.58 oz. / 385 g

Dimensions

9.8 x 5.9 x 5.9 in. / 250 x 150 x 150 mm

Cable length

4.593 ft. / 1.4 m

Emissivity

0,95

Probe head diameter

5.906 in. / 150 mm

Product colour

Black
