testo 400 Comfort Kit - for comfort professionals in high performance buildings

Order-Nr. 0563 0409

Measurement assistant for PMV/PPD measurement and determination of draft rates
Optional IAQ data logger available for long-term IAQ measurements independently of the instrument
Finish reports either directly on site or later at a PC
Compatible with a wide variety of probes, and testo Smart Probes for all your comfort measurement needs

Product Description

Ideal for Commissioning and IAQ investigation professionals

More information

testo 400 is the universal measuring instrument for all TAB / Commissioning and IAQ professionals, enabling them to measure, document and analyze all IAQ parameters with just one instrument.

Smart support through stored measurement menus and evaluation of measuring values according to the traffic light principle – for error-free measurements
Manage all the relevant customer data, including measuring points, directly in the instrument - work directly and efficiently on site
Complete and send measuring values with full documentation, including photos, comments and your own logo directly on site – get to the next job faster
Probe heads can be changed without restarting the instrument – easy handling with no lost time
Calibration of probes which is independent of the measuring instrument and adjustment function at up to six measuring points for zero-error display – fewer downtimes and high-precision measurements

As consultants, experts, technical service providers, or service technicians in the air conditioning and ventilation sector, the testo 400 therefore supports you in the truly smart performance of your measuring tasks. Relevant quality parameters in industrial production and manufacturing processes can also be reliably and accurately checked using the testo 400.

Details on kit components

testo 400 - Universal Air Flow and IAQ Instrument

Order-Nr. 0560 0400
- Smart, intuitive measurement programs including HVAC volume flow grid measurement as per ASHRAE 111, PMV/PPD and turbulence as per ASHRAE 55
- High-precision, location-independent and integrated differential pressure sensor meeting the NEBB Instrument requirements for Air pressure
Details
Transport case for IAQ and comfort level measurements

Order-Nr. 0516 2400
- Sturdy plastic case
- Offers sufficient space for measuring instrument and comfort probes (e.g. turbulence probes) and accessories
Details
Turbulence probe (digital) - wired

Order-Nr. 0628 0152
- Intuitive: clearly structured measurement menu for determining the degree of turbulence and draught risk according to EN ISO 7730 / ASHRAE 55
- Precise: compact probe for measuring air velocity and air temperature – high-precision, even at low air velocities
Details
Lux probe (digital) - for measuring illuminance, wired

Order-Nr. 0635 0551
- Intuitive: clearly structured measurement menu for long-term measurement and determination of illuminance according to the V-lambda curve (suitable for all common light sources)
- Precise: standard-compliant accuracy according to DIN EN 13032-1 and class C according to DIN 5032-7
Details
Humidity/temperature probe (digital) - with Bluetooth^®

Order-Nr. 0636 9731
- Intuitive: clearly structured measurement menu for long-term measurement and parallel determination of the relative humidity and air temperature in indoor areas
- Precise: calculation of wet bulb temperature, dew point and absolute humidity
Details

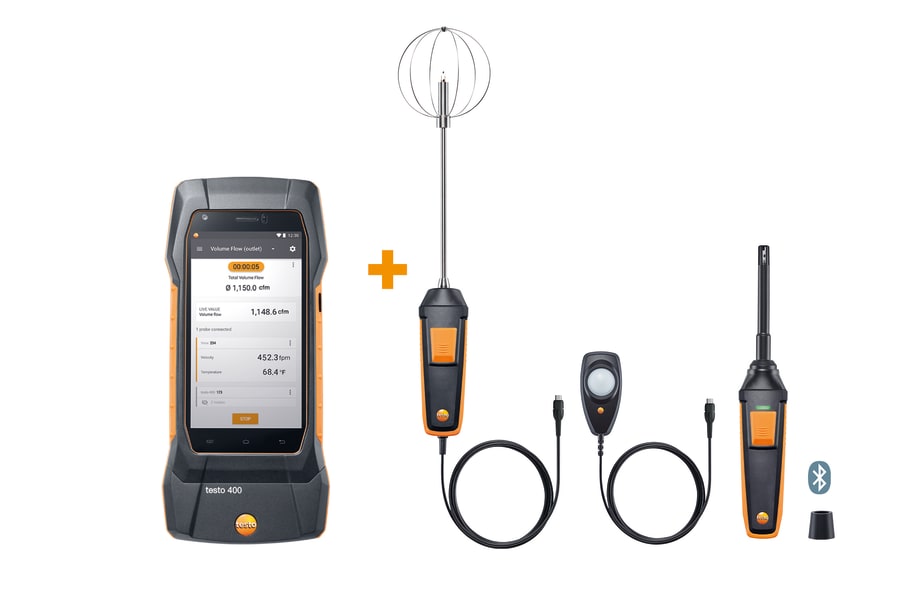

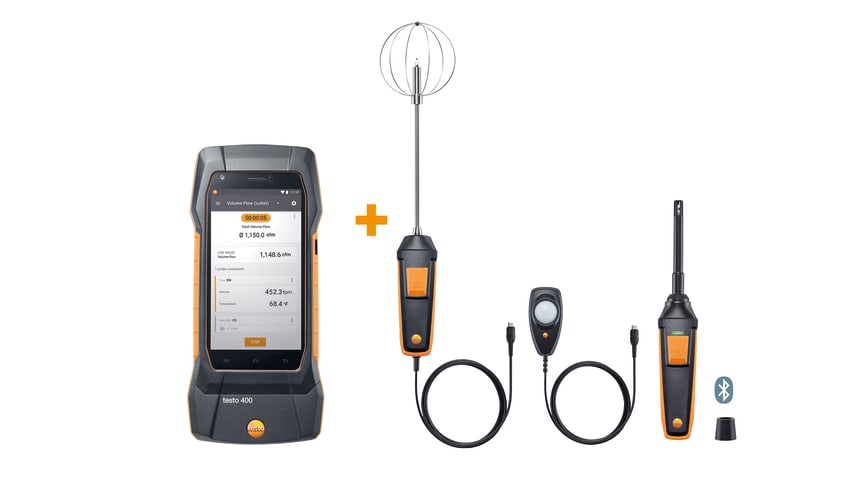

Delivery Scope

testo 400 universal instrument (0560 0400)
Transport case for comfort measurement (0516 1400)
Power supply with USB cable (0554 1106)
Turbulence probe (Wired) (0628 0152)
Lux probe (0635 0551)
Temperature / Humidity probe with Bluetooth® (0636 9731)
testo DataControl software

testo 400 - Universal Air Flow and IAQ Instrument

Order-Nr. 0560 0400

Temperature - NTC
Measuring range	-40.0° to 302.0 °F / -40 to +150 °C
Accuracy	±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C) ±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C) ±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C) ±0.5 % of mv ±1 Digit (Remaining Range)
Resolution	0 °F / 0.1 °C

Temperature - NTC

Measuring range

-40.0° to 302.0 °F / -40 to +150 °C

Accuracy

±0.4 °F ±1 Digit (-13° to 166.8 °F) / ±0.2 °C ±1 Digit (-25 to +74.9 °C)

±0.7 °F ±1 Digit (-40° to -13.2 °F) / ±0.4 °C ±1 Digit (-40 to -25.1 °C)

±0.7 °F ±1 Digit (75° to 211.8 °F) / ±0.4 °C ±1 Digit (+75 to +99.9 °C)

±0.5 % of mv ±1 Digit (Remaining Range)

Resolution

0 °F / 0.1 °C

Temperature - Type K TC
Measuring range	-328.0° to 2498.0 °F / -200 to +1370 °C
Accuracy	±(0.5 °F + 0.1 % of mv) ±1 Digit / ±(0.3 °C + 0.1 % of mv) ±1 Digit
Resolution	0.1 °F / 0.1 °C

Differential pressure (internal sensor) - Piezoresistive
Measuring range	-40 to +80 InH₂O / -100 to +200 hPa
Accuracy	±(0.0 InH₂O + 1 % of mv) ±1 Digit (0 to 25 InH₂O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa) ±(0.0 InH₂O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH₂O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa)
Resolution	0.000 InH₂O / 0.001 hPa

Differential pressure (internal sensor) - Piezoresistive

Measuring range

-40 to +80 InH₂O / -100 to +200 hPa

Accuracy

±(0.0 InH₂O + 1 % of mv) ±1 Digit (0 to 25 InH₂O) / ±(0.3 Pa + 1 % of mv) ±1 Digit (0 to 25 hPa)

±(0.0 InH₂O + 1.5 % of mv) ±1 Digit (10.000 to 80 InH₂O) / ±(0.1 hPa + 1.5 % of mv) ±1 Digit (25.001 to 200 hPa)

Resolution

0.000 InH₂O / 0.001 hPa

Absolute Pressure (internal sensor and external probe)
Measuring range	280 to 440 InH₂O / 700 to 1100 hPa
Accuracy	±1 InH₂O / ±3 hPa
Resolution	0.1 InH₂O / 0.1 hPa

General technical data
Weight	17.99 oz. (instrument) / 510 g (instrument)
Dimensions	8.3 x 3.7 x 1.5 in. ((LxWxH)) / 210 x 95 x 39 mm ((LxWxH))
Operating temperature	23.0° to 113.0 °F / -5 to +45 °C
Housing	Plastic
Protection class	IP40
Connectable probes	4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
Product colour	black/orange
Camera image size	Main camera: 8.0 MP; Front camera: 5.0 MP
Battery life	approx. 10 hrs continuous operation
Display type	5.0" touch display, HD 1280*720 pixels, IPS (160 k)
Power supply	Rechargeable li-ion battery (5550 mAh)
Interface	Bluetooth®; USB; WLAN
Memory	2 GB; 1,000,000 measuring values
Storage temperature	-4.0° to 140.0 °F / -20 to +60 °C

*TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes.

Transport case for IAQ and comfort level measurements

Order-Nr. 0516 2400

General technical data
Weight	114.64 oz. / 3250 g
Dimensions	20.5 x 16.1 x 8.3 in. LxWxH / 520 x 410 x 210 mm LxWxH
Housing	Plastic
Product colour	Black

Turbulence probe (digital) - wired

Order-Nr. 0628 0152

Temperature - NTC
Measuring range	32° to 122 °F / 0 to +50 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C

Absolute Pressure
Measuring range	+280 to +440 InH₂O / +700 to +1100 hPa
Accuracy	±1.2 InH₂O / ±3.0 hPa
Resolution	0.1 InH₂O / 0.1 hPa

Velocity - Hot wire anemometer
Measuring range	0 to 984 fpm / 0 to 5 m/s
Accuracy	±(5.91 fpm + 4 % of mv) / ±(0.03 m/s + 4 % of mv)
Resolution	1.97 fpm / 0.01 m/s

General technical data
Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	8.8 oz. / 250 g
Dimensions	15.7 x 3.5 x 3.5 in. / 400 x 90 x 90 mm
Operating temperature	32° to 122 °F / 0 to +50 °C
Cable length	4.593 ft. / 1.4 m
Probe head diameter	32.283 in. / 820 mm
Product colour	black/orange
Standards	EN ISO 7730 / ASHRAE 55

Lux probe (digital) - for measuring illuminance, wired

Order-Nr. 0635 0551

Light
Measuring range	0 to 100000 Lux 0 to 9300 ftc
Accuracy	DIN 13032-1 Appendix B F1 = 6 % = V(Lambda) adjustment F2 = 5 % = cos-true evaluation Class C according to DIN 5032-7
Resolution	0.1 Lux (< 10000 ) 1 Lux (> 10000 )

Light

Measuring range

0 to 100000 Lux

0 to 9300 ftc

Accuracy

DIN 13032-1 Appendix B

F1 = 6 % = V(Lambda) adjustment

F2 = 5 % = cos-true evaluation

Class C according to DIN 5032-7

Resolution

0.1 Lux (< 10000 )

1 Lux (> 10000 )

General technical data
Storage temperature	-4° to 122 °F / -20 to +50 °C
Weight	3.9 oz. / 110 g
Dimensions	4.3 x 2.2 x 0.9 in. / 110 x 55 x 22 mm
Operating temperature	32° to 122 °F / 0 to +50 °C
Cable length	4.593 ft. / 1.4 m
Product colour	Black

Humidity/temperature probe (digital) - with Bluetooth^®

Order-Nr. 0636 9731

Temperature - NTC
Measuring range	-4° to 158 °F / -20 to +70 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C

Humidity - Capacitive
Measuring range	0 to 100 %rH
Accuracy	±2 %rH (5 to 90 %rH) ±0.03 %rF/K (k=1)
Resolution	0.1 %rH

Humidity - Capacitive

Measuring range

0 to 100 %rH

Accuracy

±2 %rH (5 to 90 %rH)

±0.03 %rF/K (k=1)

Resolution

0.1 %rH

Please see the additional accuracy information for humidity in the instruction manual.

General technical data
Storage temperature	-4° to 140 °F / -20 to +60 °C
Weight	5.8 oz. / 165 g
Dimensions	11.4 x 2.0 x 1.6 in. / 290 x 50 x 40 mm
Operating temperature	23° to 122 °F / -5 to +50 °C
Length probe shaft	5.512 in. / 140 mm
Diameter probe shaft	0.472 in. / 12 mm
Product colour	black/orange
Battery type	4 x AA batteries
Battery life	140 h
Data transfer	Bluetooth®

Comfort probes

Turbulence probe (digital), wired: for determining the degree of turbulence and draught risk according to EN ISO 7730 / ASHRAE 55 – measuring range 0 to +5 m/s, 0 to +50 °C

Order Number: 0628 0152
