testo 510 - Digital manometer

Order-Nr.  0563 0510

  • Temperature and air density compensation for accurate airflow measurements

  • Measures differential pressure to 40 in. H2O

  • Backlit display ensures easy readability in low light situations

  • Temperature compensated pressure sensor

With the testo 510, performing system tests has never been easier using our single, easy to use, rugged, compact digital manometer. Its small form factor, bright backlit display, and magnetic backing will enable the 510 to be used in a wide variety of applications.

Product Description

The testo 510 digital manomenter is an all in one, low pressure measurement solution.  The 510 can measure total external static pressure, differential pressure, duct velocities, manifold pressures, and air flow with pitot tube (optional).
  • 0-40 in. H2O pressure measurement range
  • Temperature compensated pressure sensor
  • Magnetic backing for hands free use
  • Air flow measurement with optional pitot tube
  • User adjustable air density compensation
  • Protective cap for safe storage



Delivery Scope

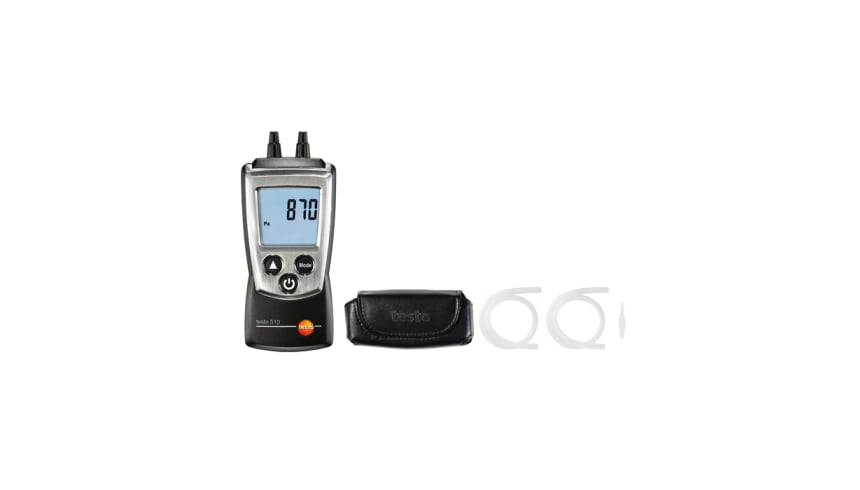

testo 510, belt pouch, 2 hoses, wrist strap, certificate of conformity
Differential Pressure

Measuring range

0 to 40 InH₂O / 0 to 100 hPa

Accuracy

±0.01 InH₂O (0 to 0.12 InH₂O) / ±0.03 hPa (0 to 0.30 hPa)

±0.02 InH₂O (0.12 to 0.40 InH₂O) / ±0.05 hPa (0.31 to 1.00 hPa)

±(0.0 InH₂O + 1.5 % of mv) (0.40 to 40 InH₂O) / ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)

Resolution

0.00 InH₂O / 0.01 hPa

General technical data

Dimensions

5 x 2 x 1 in. / 119 x 46 x 25 mm

Operating temperature

32.0° to 122.0 °F / 0 to +50 °C

Protection class

IP40

Seceltable units

hPa, mbar, Pa, mmH2O, inH₂O, inHg, mmHg, psi, m/s, fpm

Maximal static pressure

7.252 psi / 500 mbar

Measuring rate

0.5 sec

Battery type

2 AAA batteries

Battery life

50 h (average, without display illumination)

Storage temperature

-40.0° to 158.0 °F / -40 to +70 °C

Weight

3 oz. (with batteries and protective cap) / 90 g (with batteries and protective cap)

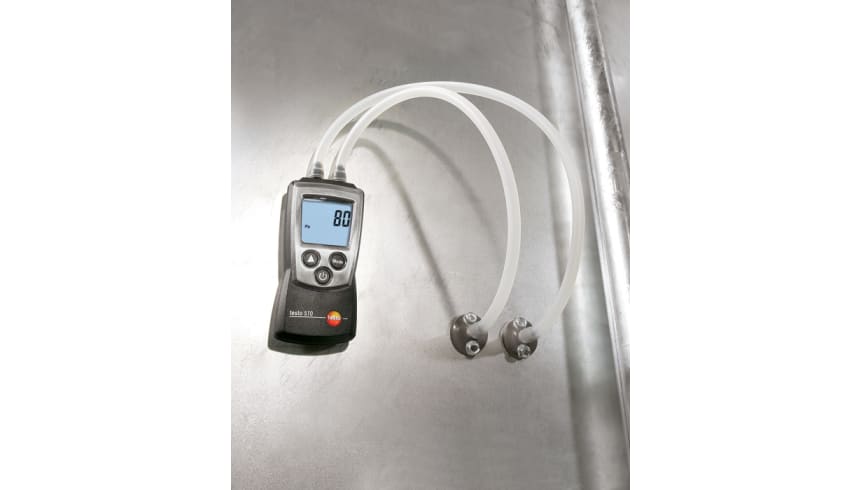

Differential pressure measurement on filters

Air conditioning systems are equipped with filters which prevent dirt from the outside air entering the indoor air. These filters are to be inspected regularly to make sure they are still fully functional. To do this, the pressure is measured in front of and behind the filter. The result is the differential pressure. If it is too high, the filter is contaminated and needs changing.

The testo 510 measures differential pressures in a range of 0 - 100 hPa. The differential pressure measurement is temperature-compensated for exact readings. The readings can be displayed in pascal over the entire measuring range. Magnets on the rear of the instrument allow hands-free work.

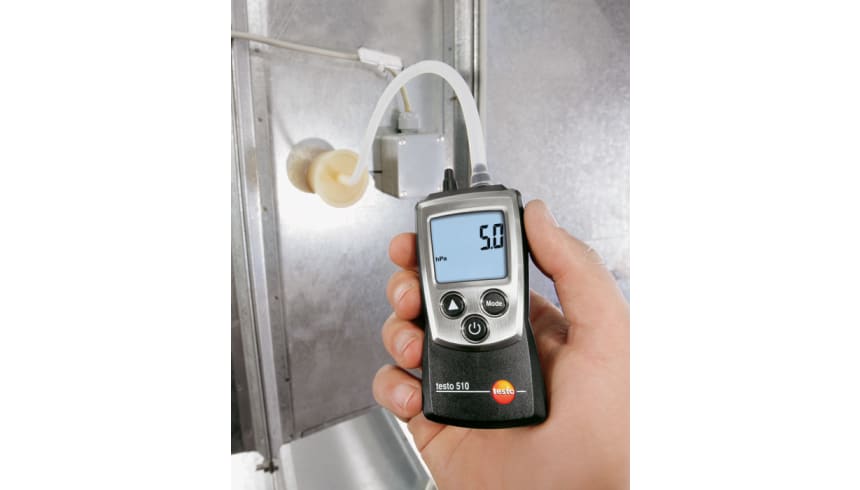

Measurement in ventilation ducts

Observance of air flows in the ventilation duct is of utmost importance for the function of the ventilation and air conditioning system. If the air flows are smaller than intended, the removal of room loads (heating, cooling and substance loads) may not be ensured in certain circumstances.

Therefore, the most accurate recording of air flows as possible is particularly important.

In conjunction with a pitot tube, testo 510 measures the air velocity in the range of 10 to 100 m/s. Magnets on the rear of the instrument allow hands-free work.
