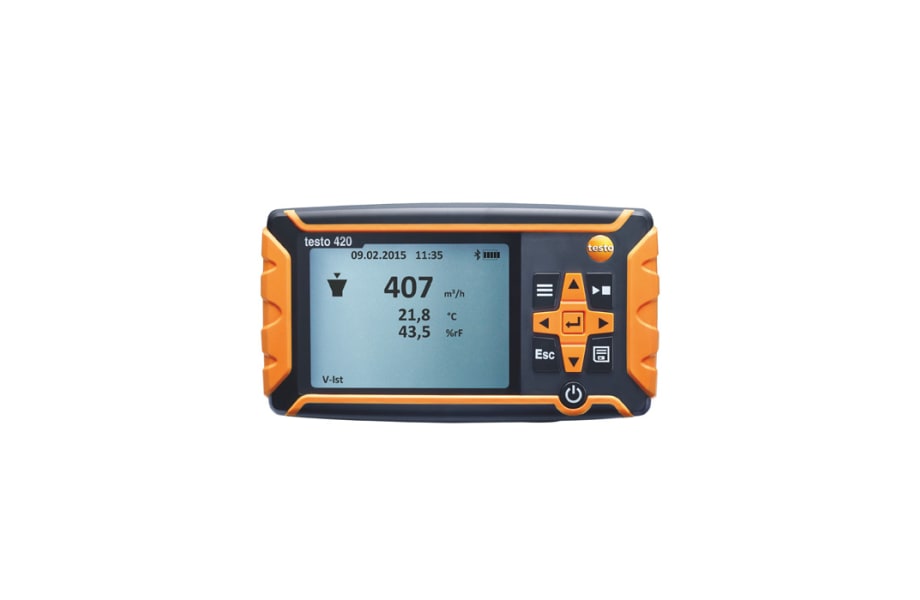

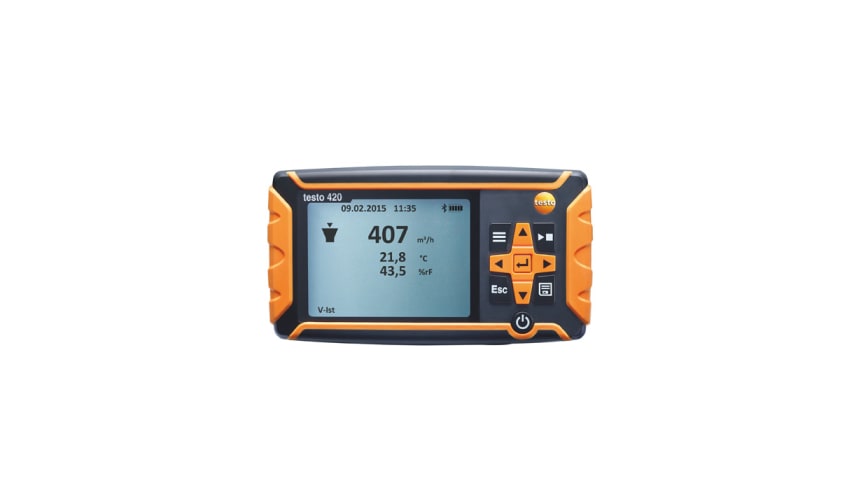

testo 420 - Differential pressure measuring instrument

Order-Nr. 0560 0420

Where to buy

Differential pressure measurement, useful for checking filters in air conditioning and ventilation systems
Calculate flow velocity and volume flow using an optional pitot tube
Live data feed integration now available with the MeasureQuick App
Match with a Testo CEC compliant air flow capture hood to measure volume flows at supplies and returns (0563 4200)

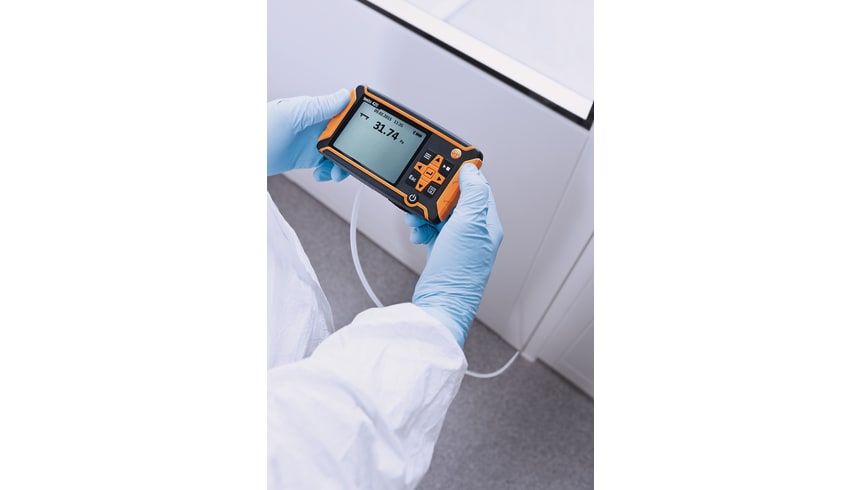

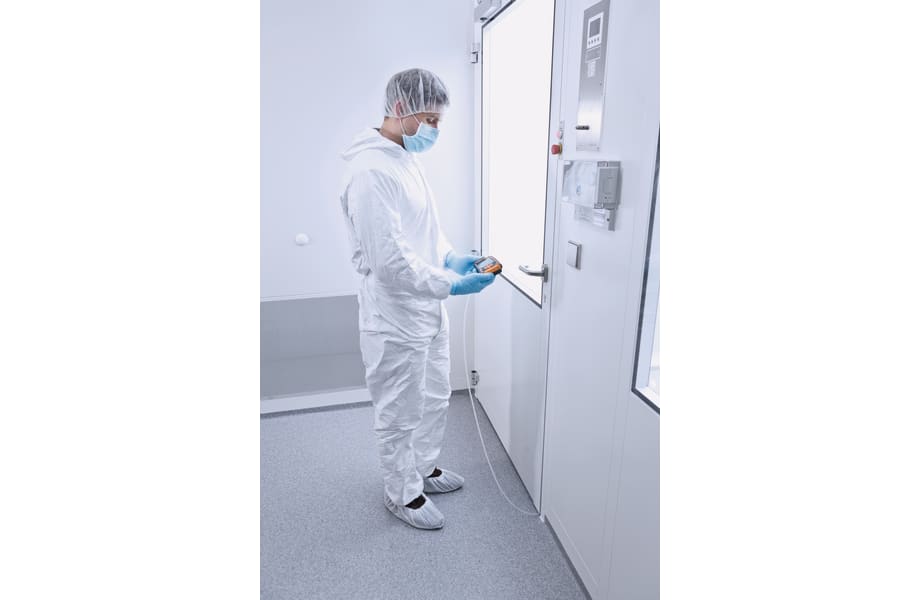

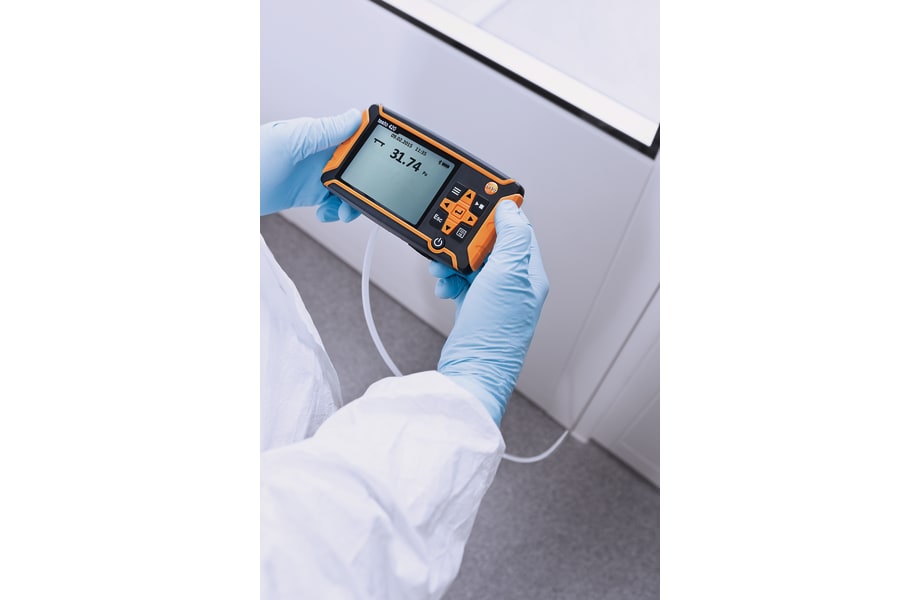

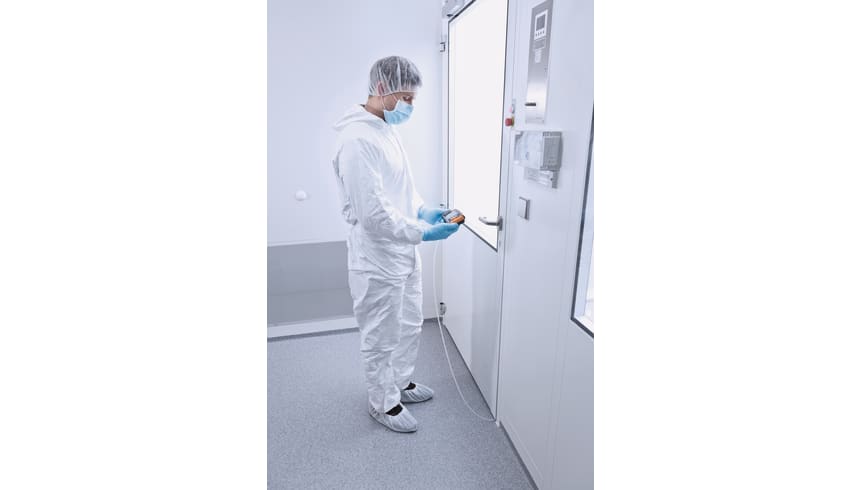

Use the CEC compliant testo 420 differential pressure measuring instrument to carry out simple, efficient tests on filters. You can also use this instrument in conjunction with a pitot tube to easily measure flow velocity and volume flow in ventilation ducts

Details

Product Description

The CEC compliant testo 420 differential pressure measuring instrument is suitable for accurate differential pressure measurement up to 120 Pa, suitable for checking filters in HVAC systems. The testo 420 calculates flow velocity and volume flow. This instrument can also be used for absolute pressure measurement.

Differential Pressure Measuring Instrument with Practical Functions

You can use a pitot tube and compatible connection hoses (both optional) to measure the flow velocity and volume flow in ventilation ducts. Timed and multi-point mean calculation, as well as the combination of the two, together with simple input of the duct geometry, provide you with accurate flow measurements in ducts.

Automatic zeroing ensures higher accuracy for low pressures. All measuring values are easy to read on the large backlit display.

Documenting the Measurement Data

Measurement data can be stored in the testo 420 for analysis and documentation. It's easy to manage the measurement data on a PC without any additional software, via the testo 420's plug and play capability.

Delivery Scope

testo 420 differential pressure measuring instrument, batteries, and certificate of calibration

Customers who viewed this product also viewed

testo 440 dP - Air flow ComboKit 1 with Bluetooth and delta P

Order-Nr. 0563 4409
- A measuring instrument for all climate-related parameters
- Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts or at ventilation outlets
Details
testo 440 dP - Air flow ComboKit 2 with Bluetooth and delta P

Order-Nr. 0563 4410
- A measuring instrument for all climate-related parameters
- Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts, at ventilation outlets and in work rooms
Details
testo 510 - Digital manometer

Order-Nr. 0563 0510
- Pocket-sized temperature and air density-compensated differential pressure measurement
- Illuminated display
Details
testo 420 - Differential pressure measuring instrument

Order-Nr. 0560 0420
- Differential pressure measurement, useful for checking filters in air conditioning and ventilation systems
- Calculate flow velocity and volume flow using an optional pitot tube
Details
testo 440 dP - Air velocity and IAQ measuring instrument with differential pressure sensor

Order-Nr. 0560 4402
- A measuring instrument for all climate-related parameters
- Includes a differential pressure sensor: for Pitot tube measurement and monitoring filters
Details
testo 400 - Universal Air Flow and IAQ Instrument

Order-Nr. 0560 0400
- A measuring instrument for all climate-related parameters
- Smart, intuitive measurement programs including HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD and turbulence as per EN ISO 7730 and ASHRAE 55
Details
testo 512-1 - Digital differential pressure measuring instrument with App connection

Order-Nr. 0563 1512
- Simple, fast and precise differential pressure measurement (0 to 200 hPa) for checking filters and for Pitot tube measurement in the ventilation duct
- Reliable measurement results due to position-independent differential pressure sensor with high accuracy
Details

Technical Data

Differential Pressure
Measuring range	-0.480 to 0.480 InH₂O / -120 to +120 Pa +19.7 to +2756 fpm / +0.1 to +14 m/s
Accuracy	±2 % of mv + 0.002 InH₂O at +72 °F, 405 InH₂O / ±2 % of mv + 0.5 Pa at +22 °C, 1013 hPa
Resolution	0.001 InH₂O / 0.001 Pa 0.01 fpm / 0.01 m/s
Reaction time	1 sec (t90)

Absolute Pressure
Measuring range	280 to 440 InH₂O / 700 to 1100 hPa
Accuracy	±1 InH₂O / ±3 hPa
Resolution	0.1 InH₂O / 0.1 hPa
Reaction time	1 sec

General technical data
Dimensions	6 x 3 x 1 in. / 150 x 85 x 35 mm
Operating temperature	23° to 122 °F / -5 to +50 °C
EU-/EG-guidelines	EU-guideline 2014/30/EU
Battery type	Alkaline, type AA
Battery life	40 h
Display size	3.5"
Display function	Dot matrix
Display ligthing	with illumination
Interface	Micro-USB
Memory	2 GB (internal)
Storage temperature	-4° to 140 °F / -20 to +60 °C
