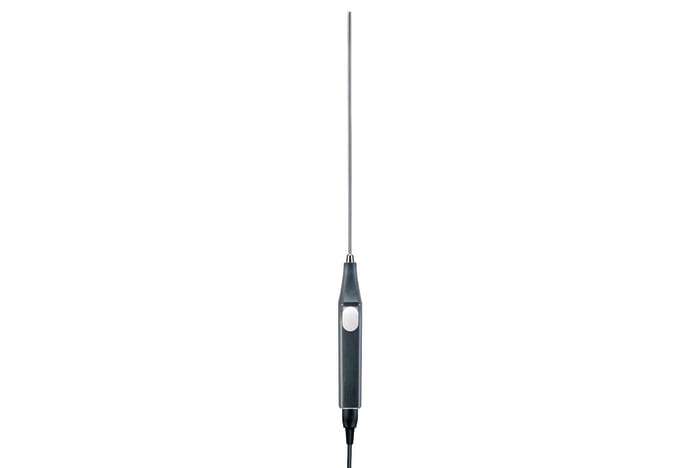

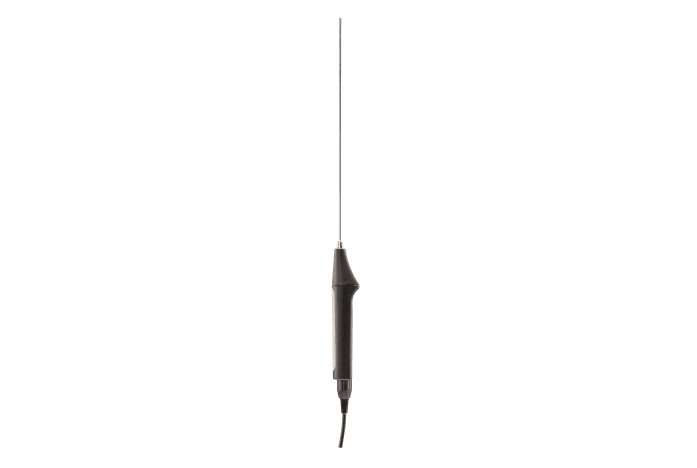

Highly accurate Pt100 immersion/penetration probe

Order-Nr.  0614 0235

  • Pt100 sensor for highly accurate measurement results

  • Potential system accuracy of 0.05 °C at a resolution of 0.001 °C (depending on the measuring instrument connected)

  • Optional calibration to ISO or DAkkS possible

  • Measuring range: -80 to +300 °C

Highly accurate Pt100 immersion/penetration probe incl. calibration protocol (test points 0 °C and +157 °C)

Product Description

High-precision temperature measurements pose no problem for this immersion/penetration probe with Pt100 sensor. Combined with a suitable Testo temperature measuring instrument, such as the testo 735, its system accuracy is so high that the measurement system can also be used as a working standard. The probe is ideal for applications in quality assurance, for calibration services and in laboratories.



Delivery Scope

High-precision immersion/penetration probe (Pt100) with fixed cable including calibration protocol.
Temperature - Pt100

Measuring range

-112.0° to 572.0 °F / -80 to +300 °C

Accuracy

±0.5 °F (-112° to -40.002 °F) / ±0.3 °C (-80 to -40.001 °C)

±(0.2 °F + 0.05 % of mv) (-40.0° to 32.0 °F) / ±(0.1 °C + 0.05 % of mv) (-40 to 0.001 °C)

±0.09 °F (32° to +212 °F) / ±0.05 °C (0 to +100 °C)

±(0.09 °F + 0.05 % of mv) (212.0° to 572.0 °F) / ±(0.05 °C + 0.05 % of mv) (100.001 to 300 °C)

Reaction time

60 sec

General technical data

Length probe shaft

11.614 in. / 295 mm

Fixed cable

yes

Diameter probe shaft

0.157 in. / 4 mm
