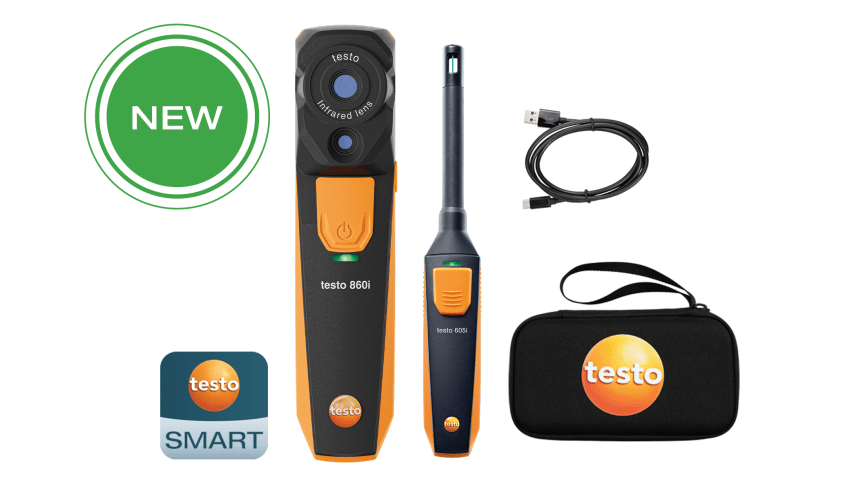

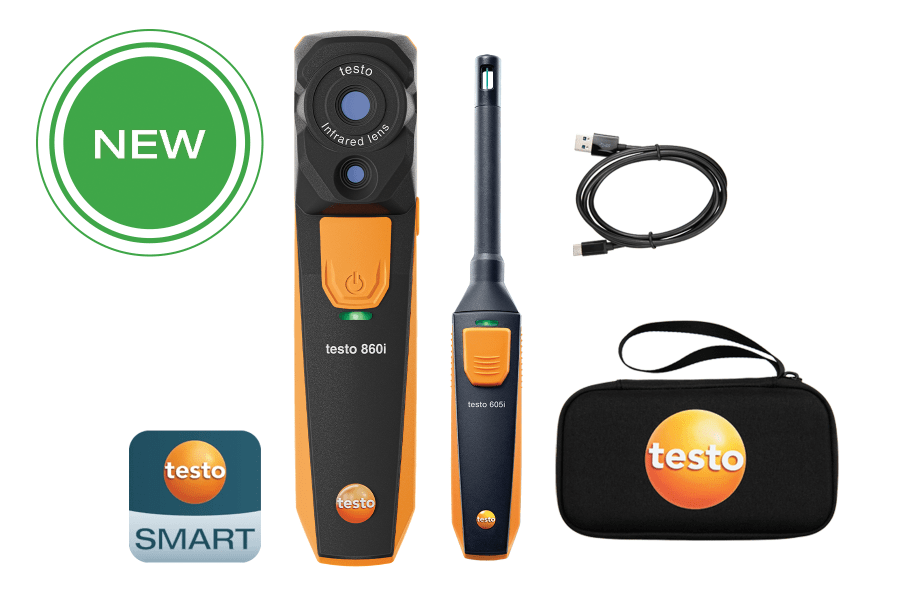

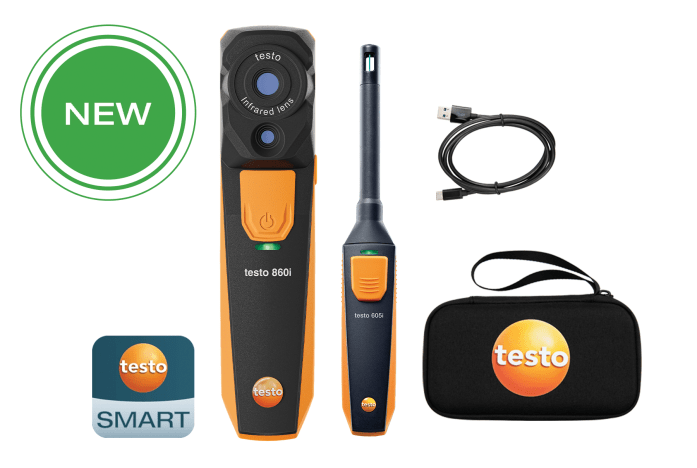

Mold Risk Assessment Kit

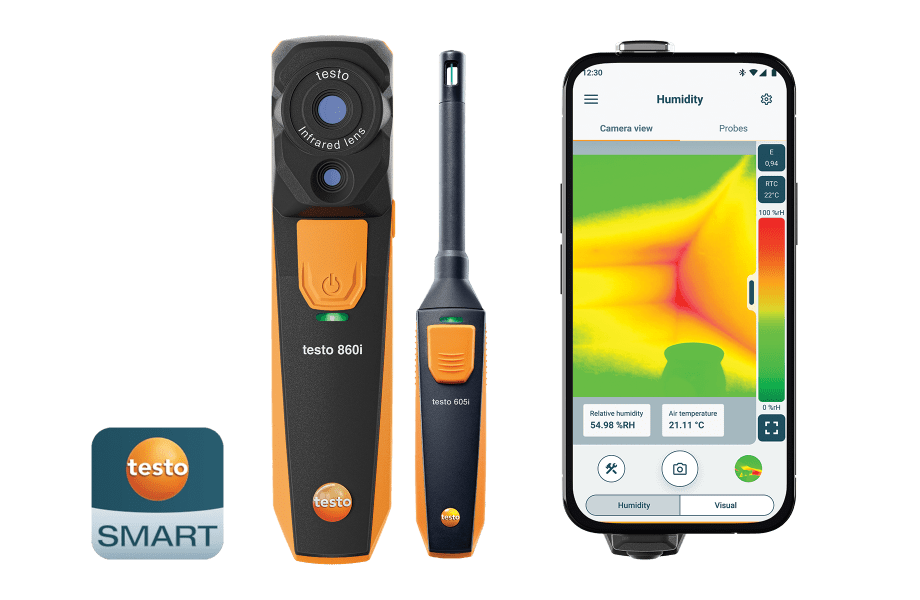

The Mold Risk Assessment Kit is a powerful, professional solution for viewing mold-prone areas, combining the advanced capabilities of the testo 860i Wireless Thermal Imaging Camera and the testo 605i Bluetooth Thermohygrometer. Designed for HVAC professionals, facility maintenance, and building inspectors, this kit enables accurate detection of insulation deficiencies, high humidity levels, and areas susceptible to mold growth

The testo 860i Thermal Imaging Camera features a high-resolution 256 x 192 pixel infrared sensor, providing razor-sharp thermal images to detect cold spots and insulation issues. The testo 605i Thermohygrometer measures air temperature and humidity, calculating dew point and wet bulb temperatures to identify conditions that promote mold growth.

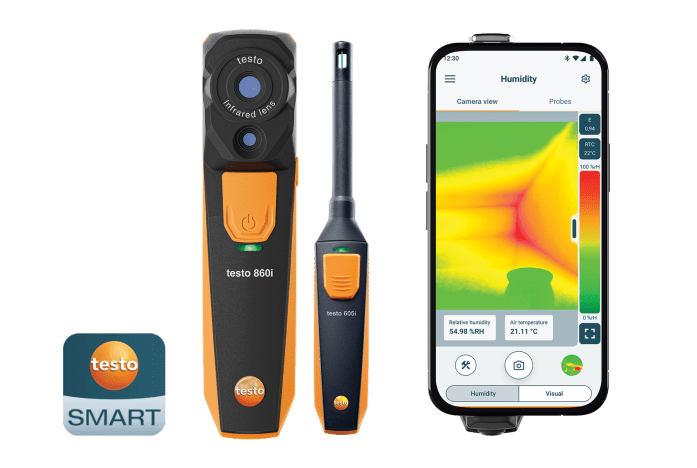

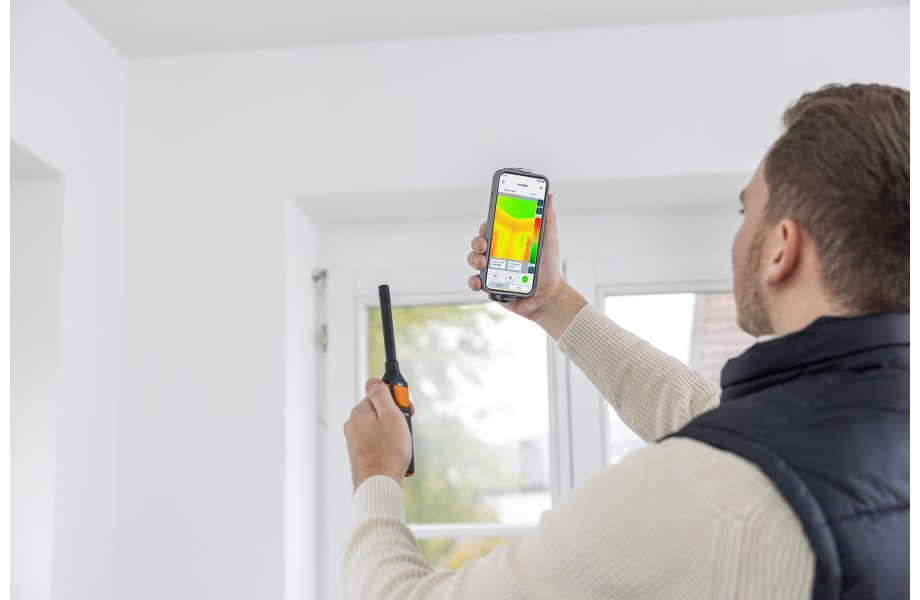

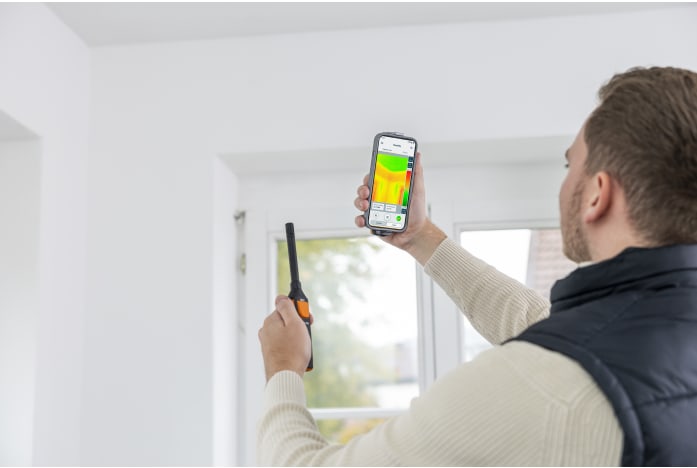

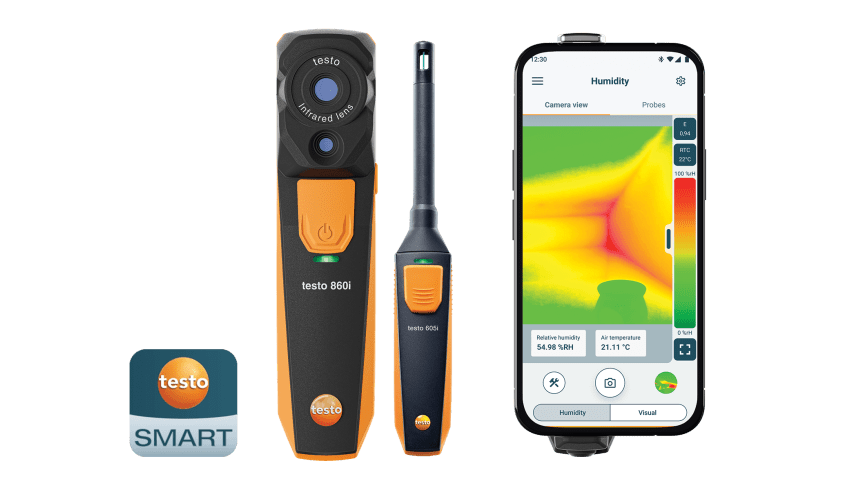

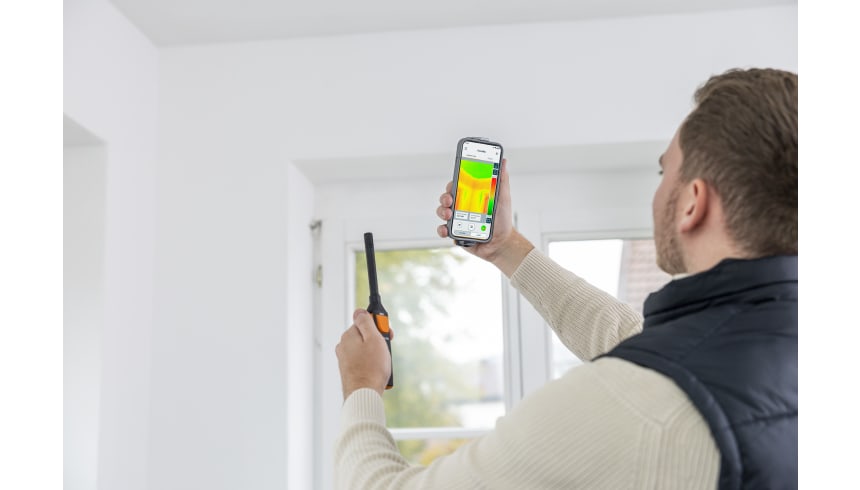

Through seamless Bluetooth connectivity with the Testo Smart App, users can view real-time thermal images, document results, and generate professional reports directly from their smartphones. This enables easy data analysis, ensuring timely action against potential mold risks.

Built for tough environments, the testo 860i is IP54-rated, drop-resistant (1.5m), and equipped with a long-lasting rechargeable battery, making it a reliable tool for on-site use. Ideal for surveyors, facility maintenance, and HVAC professionals, the testo 860i Mold Kit provides a comprehensive, smart, and efficient solution for preventative maintenance and mold risk assessment.

Protection class	IP54
System requirements	requires iOS 17 or newer; requires Android 14 or newer; requires mobile end device with Bluetooth 4.0

Protection class

IP54

System requirements

requires iOS 17 or newer; requires Android 14 or newer; requires mobile end device with Bluetooth 4.0

Field of view	48° x 36°
Focus	Fixed focus
Minimum focus distance	1 ft / 0.3 m
Image refresh rate	9 Hz
Infrared resolution	256 x 192 pixels
Thermal sensitivity	50 mk
Spectral range	8 to 14 µm

Field of view

48° x 36°

Focus

Fixed focus

Minimum focus distance

1 ft / 0.3 m

Image refresh rate

9 Hz

Infrared resolution

256 x 192 pixels

Thermal sensitivity

50 mk

Spectral range

8 to 14 µm

Minimum focus distance	1 ft / 0.4 m
Image size	640 x 480 pixels

Minimum focus distance

1 ft / 0.4 m

Image size

640 x 480 pixels

Color palettes	iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette
Digital zoom	yes
Display option	IR image / real image
(in the testo Smart App)

Color palettes

iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette

Digital zoom

yes

Display option

IR image / real image

(in the testo Smart App)

Accuracy	5.4°F (±3 °C) or ±3 % of m.v. (at ambient temp. 14°F to 104°F (-10 to 40 °C) and scene temp. 32°F to 302°F (0 to +150 °C) or 212°F to 662°F(+100 to +350 °C)
Emissivity	0.01 to 1
Measuring range	-4 to +662 °F (-20 to +350 °C)
Reflected temperature	manual; (via testo Smart App)

Accuracy

5.4°F (±3 °C) or ±3 % of m.v. (at ambient temp. 14°F to 104°F (-10 to 40 °C) and scene temp. 32°F to 302°F (0 to +150 °C) or 212°F to 662°F(+100 to +350 °C)

Emissivity

0.01 to 1

Measuring range

-4 to +662 °F (-20 to +350 °C)

Reflected temperature

manual; (via testo Smart App)

Analysis function	Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area)
Electrical mode - manual	Input of current, voltage or power
Humidity mode - manual	yes
Humidity measurement with humidity measuring instrument	Automatic transfer of the optional testo 605i or testo 625 thermohygrometer readings via Bluetooth to the testo Smart App
Electrical measurement with clamp meter	Automatic reading transfer of the optional testo 770-3 clamp meter via Bluetooth to the testo Smart App
Application-specific measurement functions	DeltaHeat; DeltaCool; Humidity mode
(in the testo Smart App)

Analysis function

Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area)

Electrical mode - manual

Input of current, voltage or power

Humidity mode - manual

yes

Humidity measurement with humidity measuring instrument

Automatic transfer of the optional testo 605i or testo 625 thermohygrometer readings via Bluetooth to the testo Smart App

Electrical measurement with clamp meter

Automatic reading transfer of the optional testo 770-3 clamp meter via Bluetooth to the testo Smart App

Application-specific measurement functions

DeltaHeat; DeltaCool; Humidity mode

(in the testo Smart App)

Full screen mode	yes
WLAN Connectivity	Communication with the testo Smart App; WIFI: IEEE 802.11a/n/ac*
Bluetooth	Peer-to-peer advertising for fast connection set-up*
Remote-controlled operation	Up to 32ft (10 m) from the mobile device
* An overview of the radio authorisations in the different countries can be found in the download section of the testo 860i product page in the "Quick Start Guide testo 860i" document.

Full screen mode

yes

WLAN Connectivity

Communication with the testo Smart App; WIFI: IEEE 802.11a/n/ac*

Bluetooth

Peer-to-peer advertising for fast connection set-up*

Remote-controlled operation

Up to 32ft (10 m) from the mobile device

* An overview of the radio authorisations in the different countries can be found in the download section of the testo 860i product page in the "Quick Start Guide testo 860i" document.

File format image	.bmt; .jpg; .csv
Storage device	On a mobile device

File format image

.bmt; .jpg; .csv

Storage device

On a mobile device

Battery type	Integrated Li-ion rechargeable battery
Charging options	USB-C
Charging time	Approx. 90 min (15-min charge of an empty battery equals 30 min of operating time)

Battery type

Integrated Li-ion rechargeable battery

Charging options

USB-C

Charging time

Approx. 90 min (15-min charge of an empty battery equals 30 min of operating time)

Air humidity	5 to 95 %RH, non-condensing
Vibration	IEC 60068-2-6
Impact resistance test	4.921 ft. / 1.5 m
Storage temperature	-4.0° to 158.0 °F / -20 to +70 °C
Operating temperature	14.0° to 122.0 °F / -10 to +50 °C

Air humidity

5 to 95 %RH, non-condensing

Vibration

IEC 60068-2-6

Impact resistance test

4.921 ft. / 1.5 m

Storage temperature

-4.0° to 158.0 °F / -20 to +70 °C

Operating temperature

14.0° to 122.0 °F / -10 to +50 °C

Tripod mounting	1/4" - 20UNC
Mobile device attachment	Clip span: min. 134 mm, max. 190 mm and device depth up to max. 12 mm
Weight	6.9 oz. / 195 g
Dimensions	6 x 2 x 1 in. / 165 x 45 x 38 mm

Tripod mounting

1/4" - 20UNC

Mobile device attachment

Clip span: min. 134 mm, max. 190 mm and device depth up to max. 12 mm

Weight

6.9 oz. / 195 g

Dimensions

6 x 2 x 1 in. / 165 x 45 x 38 mm

System requirements	Windows® 10; Windows® 11
(testo IRSoft)

System requirements

Windows® 10; Windows® 11

(testo IRSoft)

Measuring range	-4° to 140 °F / -20 to +60 °C
Accuracy	±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C) ±0.9 °F (32° to 140 °F) / ±0.5 °C (0 to +60 °C)
Resolution	0.1 °F / 0.1 °C

Measuring range

-4° to 140 °F / -20 to +60 °C

Accuracy

±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C)

±0.9 °F (32° to 140 °F) / ±0.5 °C (0 to +60 °C)

Resolution

0.1 °F / 0.1 °C

Measuring range	0 to 100 %rH
Accuracy	±5 %rH (< 10 %rH or > 90 %rH) ±3.0 %rH (10 to 35 %rH) (at +77°F) / ±3.0 %RH (10 to 35 %RH) (at +25°C) ±2.0 %rH (35 to 65 %rH) (at +77°F) / ±2.0 %RH (35 to 65 %RH) (at +25°C) ±3.0 %rH (65 to 90 %rH) (at +77°F) / ±3.0 %RH (65 to 90 %RH) (at +25°C)
Resolution	0.1 %rH

Measuring range

0 to 100 %rH

Accuracy

±5 %rH (< 10 %rH or > 90 %rH)

±3.0 %rH (10 to 35 %rH) (at +77°F) / ±3.0 %RH (10 to 35 %RH) (at +25°C)

±2.0 %rH (35 to 65 %rH) (at +77°F) / ±2.0 %RH (35 to 65 %RH) (at +25°C)

±3.0 %rH (65 to 90 %rH) (at +77°F) / ±3.0 %RH (65 to 90 %RH) (at +25°C)

Resolution

0.1 %rH

Weight	3.05 oz. / 86.4 g
Dimensions	10 x 1 x 1 in. / 243 x 30 x 24 mm
Operating temperature	-4° to 122 °F / -20 to +50 °C
Housing	Plastic
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Product colour	black/orange
Battery type	3 x AAA
Battery life	150 h
Length probe shaft	3.937 in. / 100 mm
Storage temperature	-4° to 140 °F / -20 to +60 °C

Weight

3.05 oz. / 86.4 g

Dimensions

10 x 1 x 1 in. / 243 x 30 x 24 mm

Operating temperature

-4° to 122 °F / -20 to +50 °C

Housing

Plastic

System requirements

requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0

Product colour

black/orange

Battery type

3 x AAA

Battery life

150 h

Length probe shaft

3.937 in. / 100 mm

Storage temperature

-4° to 140 °F / -20 to +60 °C
