  2. Rugged, waterproof surface temperature probe, Pt100

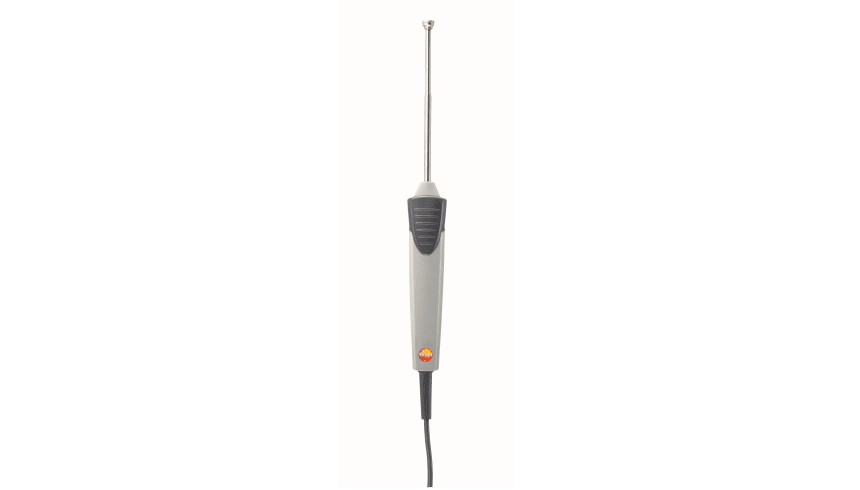

Rugged, waterproof surface temperature probe, Pt100

Order-Nr.  0609 1973

  • Robust, waterproof surface temperature probe, Pt100
Where to buy
1-484-727-8381
Inquiry

  • Pt100 sensor for highly accurate measurement results

  • Waterproof

  • EN 13485 and HACCP-compliant

  • Measuring range: -50 to +400 °C

Rugged, waterproof surface temperature probe, Pt100

Details

Product Description

The robust, waterproof surface probe (Pt100) can be used to accurately determine the temperature on surfaces. The probe has a wide measuring tip, making it particularly practical for surface measurement.

Thanks to its high precision, the probe is suitable for use in laboratories. In conjunction with a corresponding measuring instrument (e.g. testo 735), it is also compliant with EN 13485 and HACCP. The probe is therefore also ideal for applications in the food sector.

Delivery Scope

Robust waterproof surface probe (Pt100) with fixed cable.

Related products

  • testo 176T2 testo 176 T2

    testo 176T2 - Two-channel temperature data logger

    Order-Nr. 0572 1762

    $ 599.00
    excl. tax
    • Professional software with Excel export function for programming the logger and data analysis
    • High-precision measurements with Pt100 probes: connections available for 2 external probes
    Details
  • testo 720 Testo 720

    testo 720 - Temperature meter

    Order-Nr. 0560 7207

    • Port for one RTD or NTC sensor
    • Wide range of optional sensors for individual requirements
    Details
  • testo 735-1 testo 735-1

    testo 735-1 - 3-Channel temperature measuring instrument

    Order-Nr. 0560 7351

    • Displays, saves, and prints delta T, min, max, and mean values
    • Audible alarm when limit values are exceeded
    Details
  • testo 735-2 testo 735-1

    testo 735-2 - Multichannel thermometer

    Order-Nr. 0563 7352

    • Up to 3 connectable and 3 wireless temperature sensors
    • Super-size memory for up to 10,000 readings; PC software and USB cable included
    Details

Technical Data

General technical data

Weight

3.81 oz. / 108 g

Dimensions

57 in. / 1450 mm

Length probe shaft tip

2.165 in. / 55 mm

Diameter probe shaft

0.197 in. / 5 mm

Diameter probe shaft tip

0.354 in. / 9 mm

Cable length

4.265 ft. / 1.3 m

Fixed cable

yes

Protection class

IP65

Housing

ABS / TPE / PUR

Length probe shaft

4.724 in. / 120 mm

Product colour

Black; grey; silver
Temperature - Pt100

Measuring range

-58.0° to 752.0 °F / -50 to +400 °C

Accuracy

Class B ¹⁾

Reaction time

40 sec

1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100)
