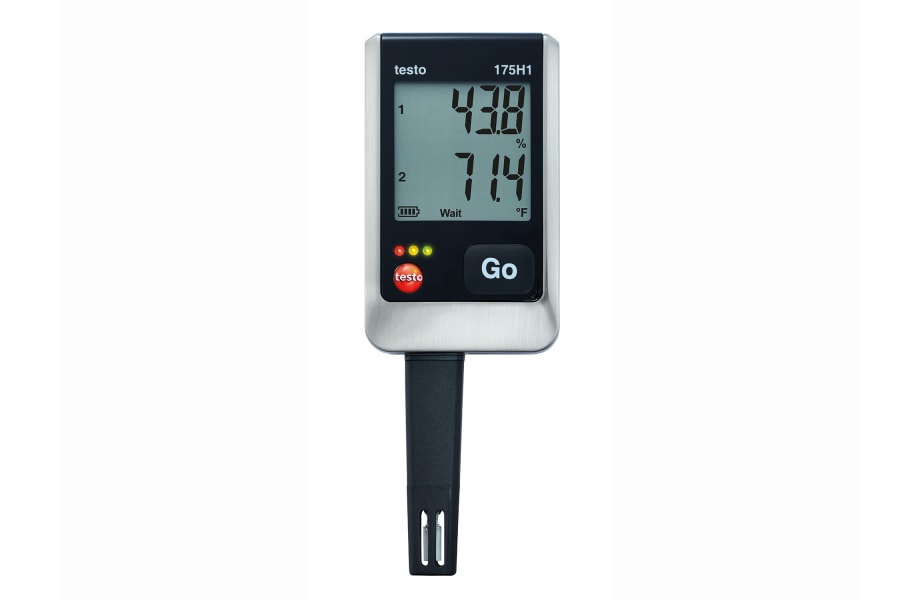

testo 175H1 - Temperature and humidity data logger

Order-Nr. 0572 1754

$ 406.80

excl. tax

Where to buy

Delivery costs

Delivery time: 1 working days

1-484-705-0777

Inquiry

Professional software with Excel export function for programming the logger and data analysis
Round-the-clock monitoring and logging of temperature, relative humidity and dew point
Temperature measuring range from -20 °C to +70 °C
Automatic measuring data backup when the battery runs out or is changed
Transfer of measuring data via SD card
Displays violations of limit values

The testo 175H1 temperature and humidity data logger features a large display and alarm indication that makes it ideal for continuous monitoring of ambient temperature and humidty. The 175H1 has an external, stub type humidity sensor, making it best-suited for use in high humidity areas. Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.


Professional software with Excel export function for programming the logger and data analysis.

Details

Product Description

The testo 175H1 is an ideal data logger for the continuous monitoring of ambient temperatures and humidity. With its customizable alarm, the 175H1 will alert when user defined thresholds have been exceeded.

Internal thermistor for temperature and capacitive humidity sensor
Data transfer possible using the USB port, or SD card (optional)
Easy to read large display that shows current reading and exceeded measurement limits
IP54 proection class
Capable of CFR 21 Part 11 Compliancy
Free data logger software available for download
Data is secured within the logger, and can be password protected using ComSoft
Includes lockable wall mount to prevent theft or tampering

Please note: The testo 175H1 temperature measurement logger requires an interface to use the free data logger software. One interface can be used for multiple instruments..

Delivery Scope

testo 175H1 temperature data logger, batteries, wall mount, lock, and certificate of conformity

Technical Data

Temperature - NTC
Measuring range	-4° to 131 °F / -20 to +55 °C
Accuracy	±0.7 °F (-4° to 131 °F) ±1 Digit / ±0.4 °C (-20 to +55 °C) ±1 Digit
Resolution	0.1 °F / 0.1 °C

Humidity - Capacitive
Measuring range	0 to 100 %rH*
Accuracy	±2 %rH (2 to 98 %rH at 77.0 °F / ±2 %RH (2 to 98 %RH) at +25 °C ±0.03 %rF/K ±1 Digit < ±1 %rH / year drift at +77 °F / < ±1 %RH / year drift at +25 °C
Resolution	0.1 %rH

Humidity - Capacitive

Measuring range

0 to 100 %rH*

Accuracy

±2 %rH (2 to 98 %rH at 77.0 °F / ±2 %RH (2 to 98 %RH) at +25 °C

±0.03 %rF/K ±1 Digit

< ±1 %rH / year drift at +77 °F / < ±1 %RH / year drift at +25 °C

Resolution

0.1 %rH

* Not for condensing atmospheres.

Dewpoint (calculated)
Measuring range	-40° to 50 °Ctd
Accuracy	0.0 %rF/K

General technical data
Weight	4.59 oz. / 130 g
Dimensions	6 x 2 x 1 in. / 149 x 53 x 27 mm
Operating temperature	-4° to 131 °F / -20 to +55 °C
Housing	Plastic
Protection class	IP54
Channels	2 internal
Product colour	Black
Life-time sensor	Long-term drift of the sensor <1% RH / year (ambient temperature + 25 ° C)
Standards	EU-guideline 2014/30/EU; 2011/65/EU
Measuring rate	10 s - 24 h
Battery type	3 x AIMn type AAA or Energizer
Battery life	3 years at 15 min. meas. rate, +25 °C
Interface	mini usb, SD card slot
Memory	1,000,000 measuring values
Storage temperature	-4° to 131 °F / -20 to +55 °C

Accessories

USB connection cable

Order Number: 0449 0047

Battery for testo 175 - Application range below -10 °C, Energizer L92 microcells AAA (please order 3 batteries per logger)

Order Number: 0515 0042

$ 23.00

excl. tax

Wall holder

Order Number: 0554 1702

ComSoft Professional 4

Order Number: 0554 1704

ComSoft CFR 21 Part 11

Order Number: 0554 1705

SD card - for collecting the measurement data from the data loggers testo 175 and testo 176; 2 GB; application range to -20 °C.

Order Number: 0554 8803

CD ComSoft Basic 5 (free download from website; registration not required)

Order Number: 0572 0580

Applications

Monitoring and documentation of building air conditioning

Temperature and relative humidity are crucial factors in assessing air quality and levels of comfort in indoor spaces, e.g. in workplaces. With the aid of data loggers, this data can be permanently monitored and documented.
They are also excellently suited to the monitoring of ventilation systems or for assessing existing building moisture.
With the use of special software, the measurement configurations can be customised and recorded measurement data can be both analysed and stored.

Monitoring and documentation of the storage temperature and humidity

The proper observance of storage temperature and humidity is an important prerequisite for the quality control of many products; e.g. in the area of food and pharmaceutical products.
To this end data loggers are usually used. They monitor and document the course of ambient conditions automatically, thereby contributing significantly to verifying that product quality is being maintained.
The direct display of violations of limit values allows fluctuations in temperature and humidity to be responded to fast. With the aid of the configuration and read out software, custom measurement configurations can also be made and recorded measurement data can be both analysed and stored.

Monitoring and documentation of the transportation temperature and humidity

The smooth recording and documentation of measurement data plays a significant role for all products that are sensitive to temperature and humidity fluctuations, or which need to be stored in a predesignated area.
The wrong conditions during transportation can result in major losses in quality right through to a complete loss of value for the monitored products.
With the aid of a data logger, goods in transit can be monitored to make sure specified temperature and humidity zones are being observed; this can then be read out, analysed and stored using special software.

Downloads

Product Brochures

Manuals

Instruction manual testo 175 (PDF, 3529 kB)
