testo 417 - Digital 4 inch vane anemometer with App connection

Order-Nr. 0563 0417

$ 490.00

excl. tax

Where to buy

Delivery costs

Delivery time: 3 working days

1-484-350-4318

Inquiry

Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets

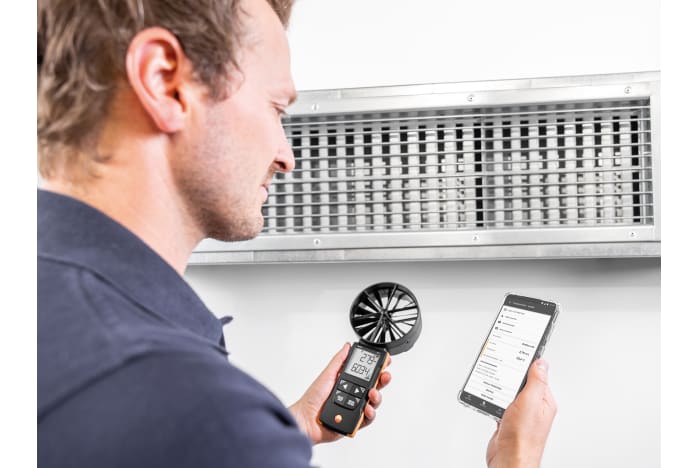

Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
Fast in-app configuration, graph history, second screen and measurement data memory in the testo Smart App
Timed and point mean value calculation

The compact testo 417 4 inch vane anemometer is the ideal solution for simple, fast and precise determination of flow velocity and volume flow at air intake and outlet vents of air conditioning and ventilation systems. Adjustment for balanced residential ventilation or measurement at swirl outlets is also child's play with the testo 417 kits including funnel and flow straightener. Thanks to the connection to the testo Smart App, configuration, display (also as second screen) and storage as well as documentation of the measured values are dealt with quickly and without any complications.

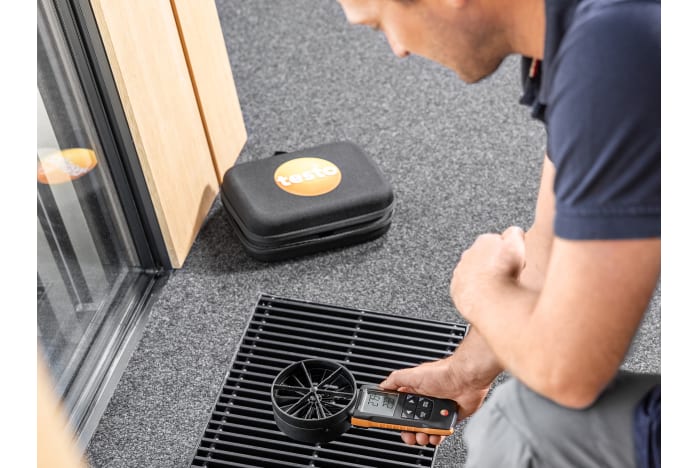

testo 417 - Volume flow measurement at ventilation outlets

To the video

Details

Product Description

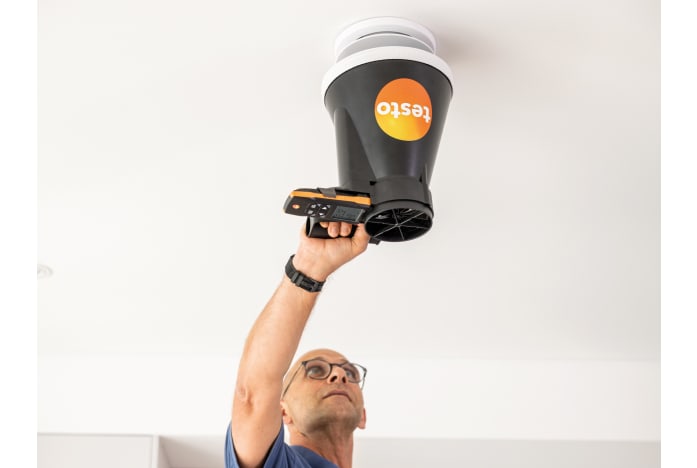

The compact vane anemometer testo 417 was developed to make it as easy as possible for you to take measurements on air inlets and outlets of air conditioning and ventilation systems. The integrated 100 mm vane quickly ensures precise results. Time and point average values as well as the volume flow are automatically calculated in the instrument and shown on the display. This allows balanced residential ventilation systems to be adjusted particularly efficiently - including quick documentation with the testo Smart App. In addition, the App not only supports you in configuring the measuring instrument and takes over display, storage and documentation of the measured values – it also turns your smartphone into a second display. testo 417 is also available in two practical kits: The testo 417 Kit 1 includes two measuring funnels for plate outlets and ventilation grilles. These can be easily attached to the vane, covering a wide range of outlet sizes and formats. In addition to the two measuring funnels, the testo 417 Kit 2 includes a volume flow straightener to achieve precise results even at swirl diffusers.

Delivery Scope

testo 417 - 100 mm vane anemometer with App connection
Transport bag
Calibration protocol
3 x AA batteries

Technical Data

Temperature - NTC
Measuring range	32 to +122 °F / 0 to +50 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	32.2 °F / 0.1 °C

Velocity - Vane anemometer
Measuring range	0.3 to 3937 fpm / 0.3 to 20 m/s
Accuracy	±(19.7 fpm + 1.5 % of mv) / ±(0.1 m/s + 1.5 % of mv)
Resolution	1.97 fpm / 0.01 m/s

Volume flow
Measuring range	0 to +58857 CFM / 0 to +99999 m³/h 0 to +259 CFM (testo 417 in combination with funnel set (0563 4170)) / 0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170)) 0.1 to +118 CFM , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172)) / 0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))
Resolution	0.1 CFM (0 to +100 ) / 0.1 m³/h (0 to +100 ) 1 CFM (Remaining Range) / 1 m³/h (Remaining Range)

Volume flow

Measuring range

0 to +58857 CFM / 0 to +99999 m³/h

0 to +259 CFM (testo 417 in combination with funnel set (0563 4170)) / 0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))

0.1 to +118 CFM , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172)) / 0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))

Resolution

0.1 CFM (0 to +100 ) / 0.1 m³/h (0 to +100 )

1 CFM (Remaining Range) / 1 m³/h (Remaining Range)

General technical data
Weight	9 oz. / 243 g
Dimensions	9 x 4 x 2 in. / 236 x 108 x 45 mm
Operating temperature	-4 to +122 °F / -20 to +50 °C
Housing	ABS + PC / TPE
Protection class	IP40 IP20
Battery life	50 h
Battery type	3x AA
Storage temperature	-4 to +122 °F / -20 to +50 °C
