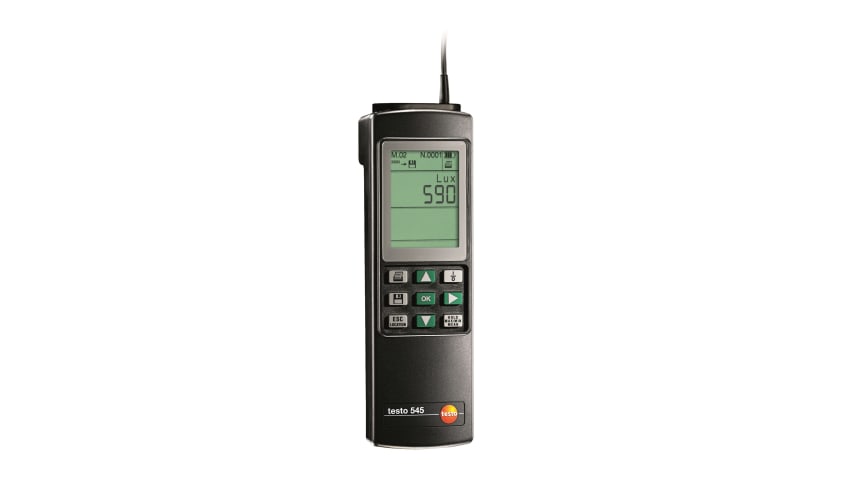

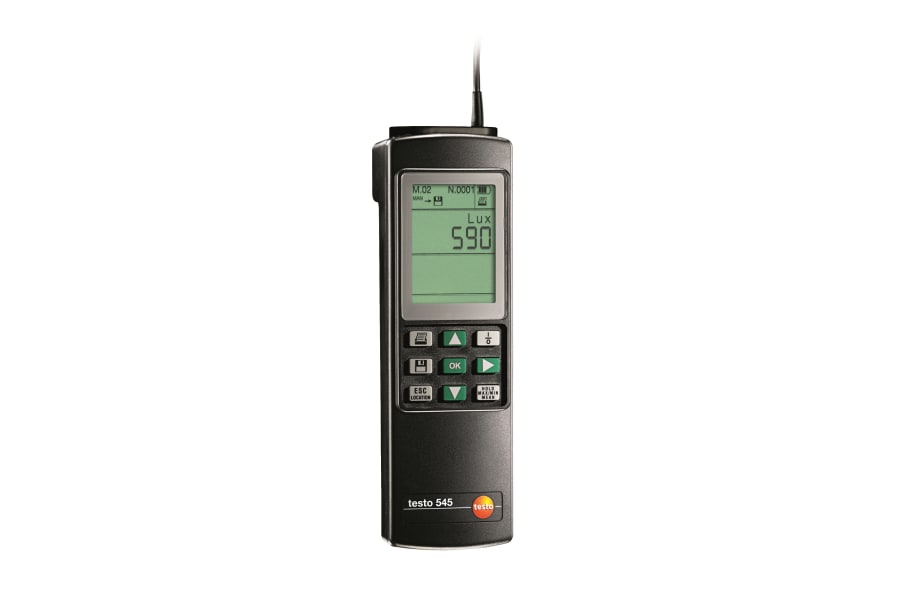

testo 545 - Light meter

Order-Nr. 0560 0545

Where to buy

Precise light intensity readings in lux
Large memory of up to 3,000 readings
Selective / time-based averaging
Measuring site management with optional software: up to 99 measuring sites available

Product no longer available. Have you checked out its successor?
Why not enjoy the benefits that it has to offer: >> To the product

Details

Product Description

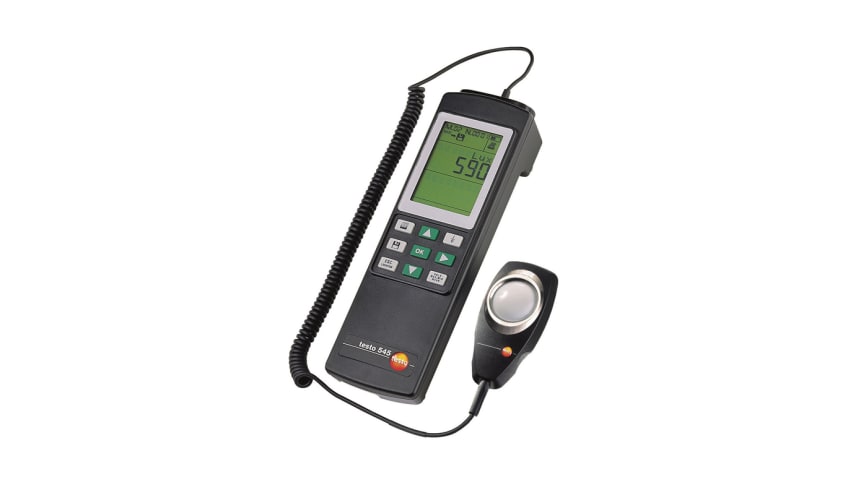

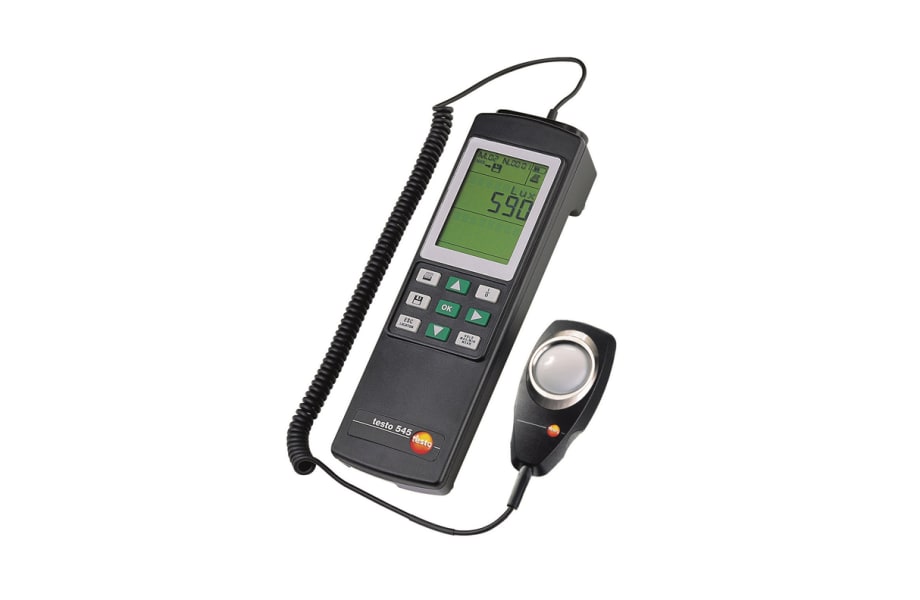

The testo 545 lux meter for natural and artificial light comes with a permanently attached light sensor, which allows you to measure the light intensity in the workplace, and at offices, schools, and hospitals quickly and reliably. The optional software can be used to compile a light profile from the light intensity readings.

At-a-glance look at the benefits of the testo 545 light meter

The testo 545 lux meter can be used for selective and long term light intensity measurements. It has a built-in data logger which can save up to 3,000 readings, and can be used to perform selective and time-based averaging. The optional testo turbo printer allows you to print out on site.
The optional PC software allows you to set up to 99 measuring sites, allocate the readings to the relevant measuring sites, and connect individually saved readings to form a curve. The light profile obtained from such data provides you with a picture of the uniformity of the lighting.

Delivery Scope

testo 545 light meter with permanently attached light sensor, calibration certificate, and batteries

Technical Data

General technical data
Weight	18 oz. / 500 g
Dimensions	9 x 3 x 2 in. / 220 x 68 x 50 mm
Operating temperature	32.0° to 122.0 °F / 0 to +50 °C
Housing	ABS
Battery type	9V block battery
Battery life	50 h
Connection	Fixed cable, coiled
Display type	LCD
Display size	2 lines
Data transfer	RS232 cable connects instrument to PC (6 ft / 1.8 m) for data transfer
Memory	3,000 measuring values
Storage temperature	-4.0° to 158.0 °F / -20 to +70 °C

Light
Measuring range	0 to 100000 Lux
Accuracy	Accuracy to DIN 13032-1: F1 = 6 % V (Lambda) adaptation F2 = 5 % cos like rating Class C according to DIN 5032-7
Resolution	1 Lux (0 to 32000 Lux) 10 Lux (0 to 100000 Lux)

Light

Measuring range

0 to 100000 Lux

Accuracy

Accuracy to DIN 13032-1:

F1 = 6 % V (Lambda) adaptation

F2 = 5 % cos like rating

Class C according to DIN 5032-7

Resolution

1 Lux (0 to 32000 Lux)

10 Lux (0 to 100000 Lux)
