testo 570s Smart Vacuum Kit with filling hoses

0564 5703 01

testo 570s Smart Vacuum Kit with filling hoses - Smart digital manifold with wireless vacuum and clamp temperature probes and 4-piece hose filling set

0564 5703 01

testo 570s Smart Vacuum Kit with filling hoses - Smart digital manifold with wireless vacuum and clamp temperature probes and 4-piece hose filling set

Start your wireless measurements on refrigeration and air conditioning systems and heat pumps straight away. The practical kit containing the testo 570s digital manifold with Bluetooth and 4-way valve block together with the wireless temperature and vacuum probes plus filling hoses is ideal for long-term and standard measurements. The intelligent error analysis in the testo Smart App ensures reliable diagnostics following a long-term measurement, eliminating the need for lengthy searches. And with the world's longest battery life of 360 hours, testo 570s is ideal for long-term measurements, but also for all kinds of short-term applications over the course of a working week. In addition, with a measuring accuracy of 0.25% fs, the manifolds offer maximum precision even at low pressure values.

*A2L / A2 / A3 Compliant*

Long-term measurement with intelligent error analysis in the testo Smart App
World's longest battery life of up to 360 hours with rechargeable battery (USB-C) and batteries
Suitable for use with A3 and A2L refrigerants

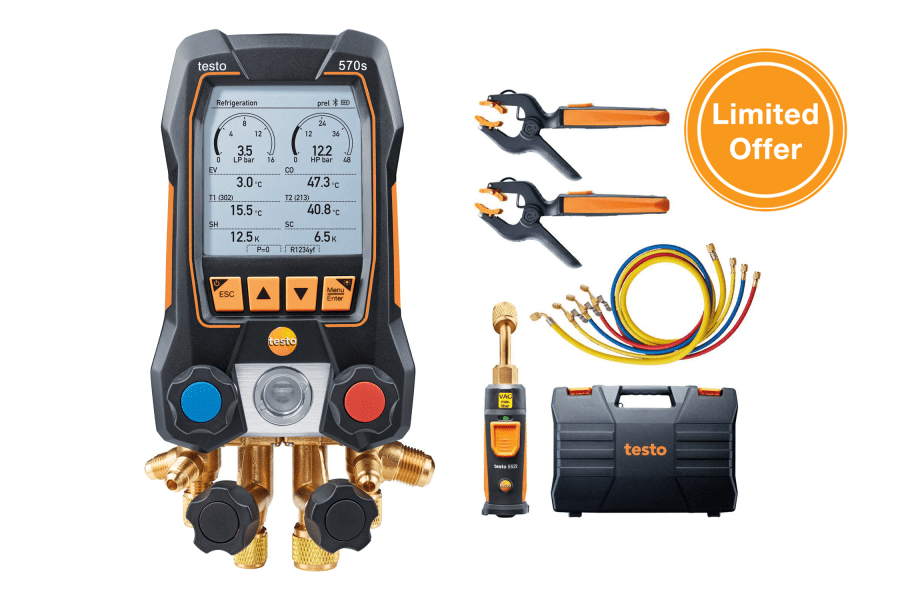

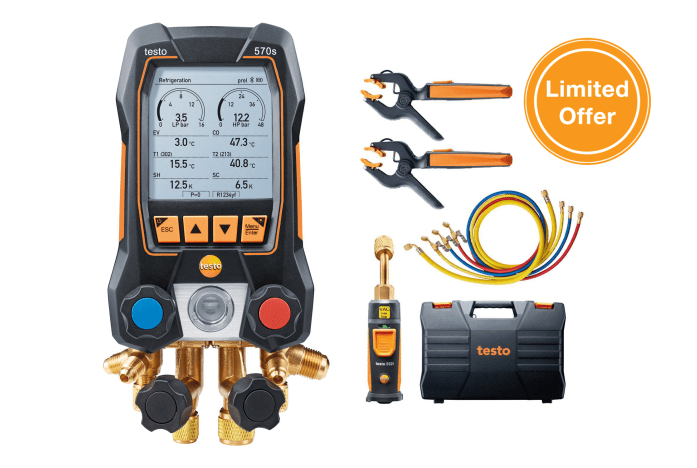

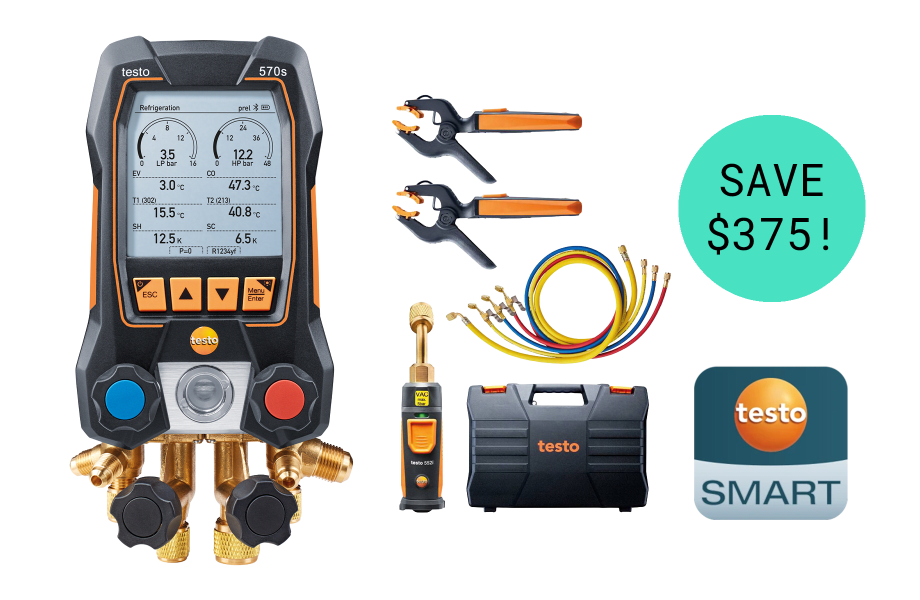

In the kit: testo 570s digital manifold, 2x testo 115i wireless clamp temperature probes, 1x testo 552i wireless vacuum probe, 4-piece hose filling set and case

: 0564 5701 01

testo 570s - Digital manifold with 4-way valve block, Bluetooth and intelligent error analysis

40 refrigerants are stored in the instrument

: 0516 0012

Transport case - for manifolds

Robust case for the secure transport of your equipment

testo 570s - Digital manifold with 4-way valve block, Bluetooth and intelligent error analysis

0564 5701 01

Temperature

Temperature	Measuring range -58.0° to 302.0 °F / -50 to +150 °C
	Accuracy ±0.9 °F / ±0.5 °C
	Resolution 0.1 °F / 0.1 °C
	Probe connection 2 x Plug-in (NTC)

Pressure measurement

Pressure measurement	Measuring range -15 to 870 psi / -1 to 60 bar
	Accuracy ±0.25 % Fs
	Resolution 0.14 psi / 0.01 bar
	Probe connection 3 x 7/16" – UNF + 1 x 5/8'' – UNF
	Overload rel. (low pressure) 943 psi / 65 bar
	Overload rel. (high pressure) 943 psi / 65 bar

General technical data

General technical data	Weight 1.30 kg
	Dimensions 9 x 4.4 x 3 in. / 229 x 112.5 x 71 mm
	Operating temperature -4.0° to 122.0 °F / -20 to +50 °C
	Protection class IP54
	System requirements requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
	Auto-off instrument 10 min
	Battery life With built-in rechargeable battery:; ≥220 h without Bluetooth®, without illumination; ≥120 h with Bluetooth® and illumination; With 3 AA batteries:; ≥145 h without Bluetooth®, without illumination; ≥75 h with Bluetooth® and illumination
	Battery type Built-in rechargeable battery: LI batttery 18650; Replaceable battery: 3 alkaline batteries AA
	Radio range 492.12 ft. / 150 m
	Storage temperature -4.0° to 140.0 °F / -20 to +60 °C

Transport case - for manifolds

0516 0012

General technical data

General technical data	Weight 42.33 oz. / 1200 g
	Dimensions 17.91 x 12.60 x 4.25 in. / 455 x 320 x 108 mm
	Product colour Black

testo 570s digital 4-way manifold with lithium-ion rechargeable battery
2x testo 115i wireless clamp thermometers
1x testo 552i wireless vacuum probe
4x filling hoses
Transport case
testo Smart App (free download)
Instruction manuals
