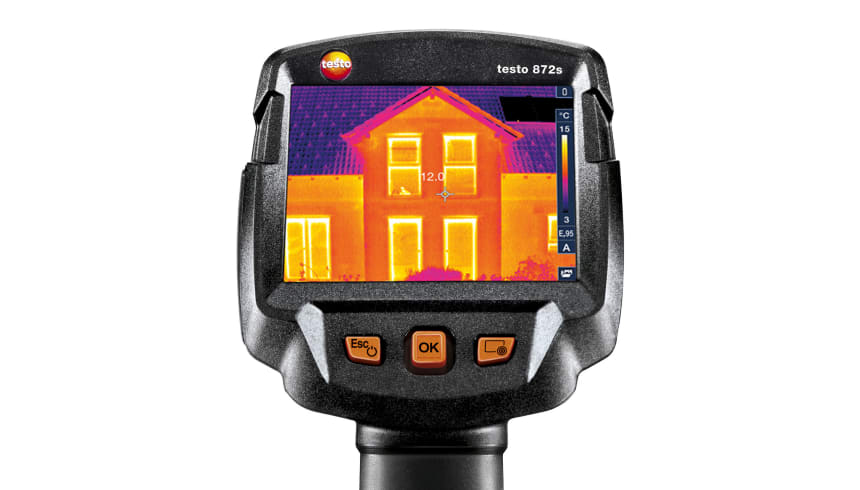

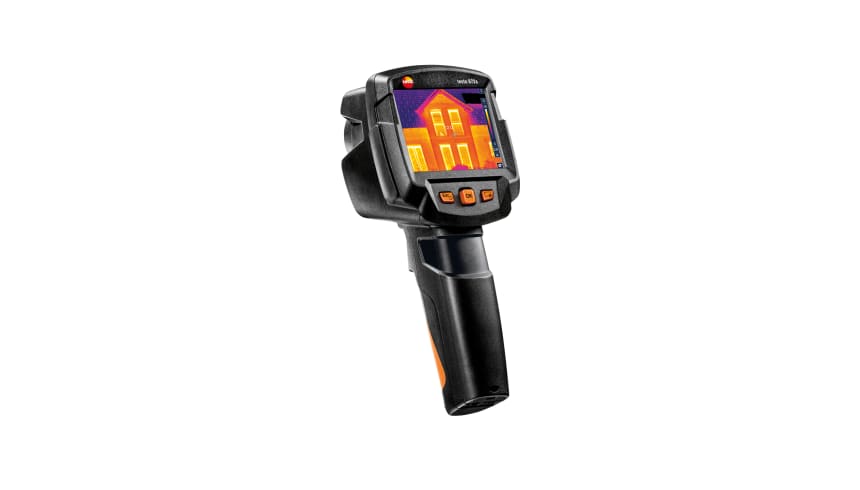

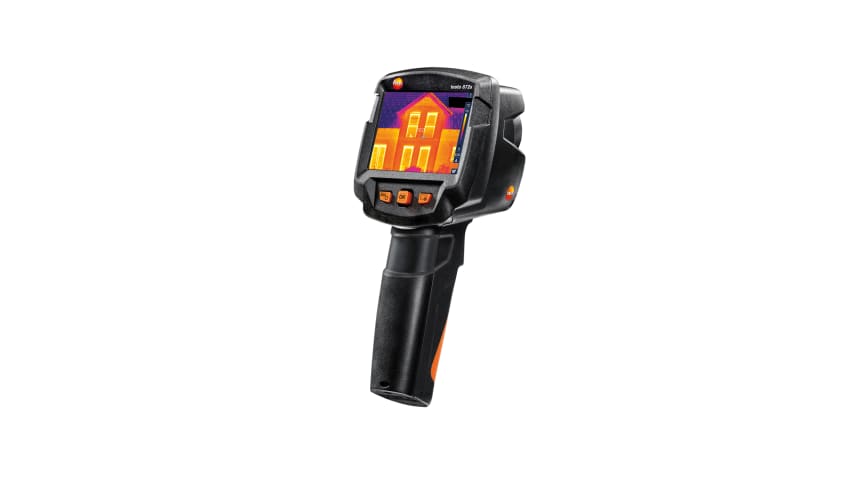

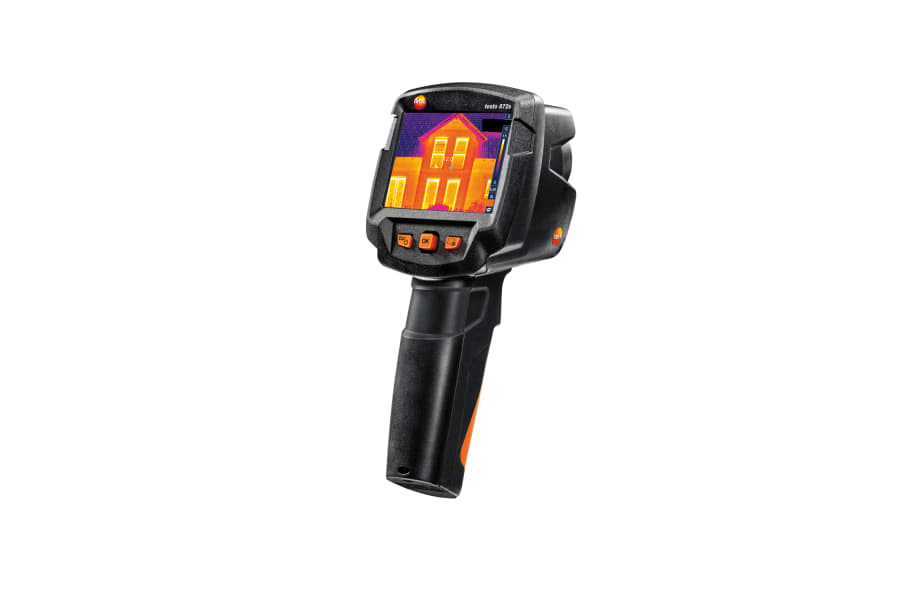

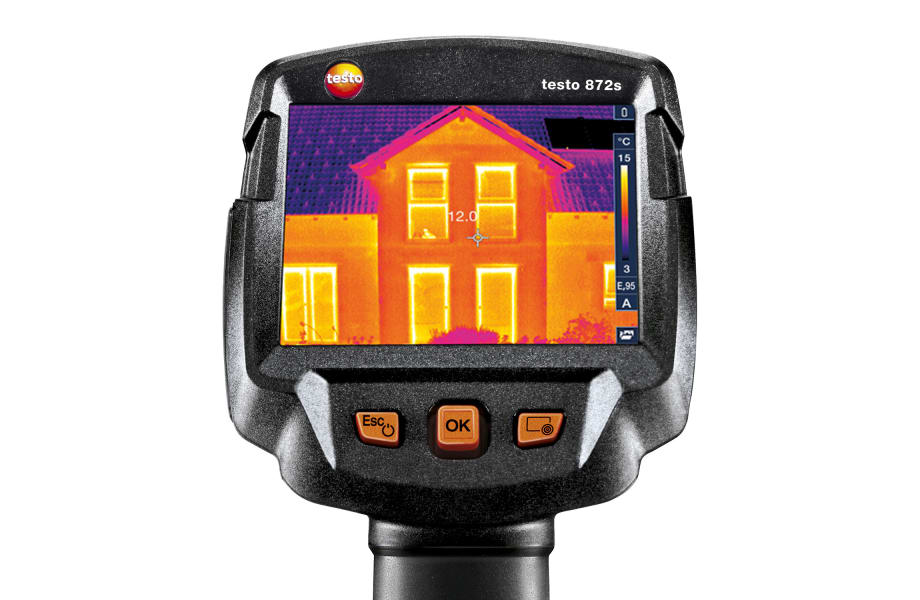

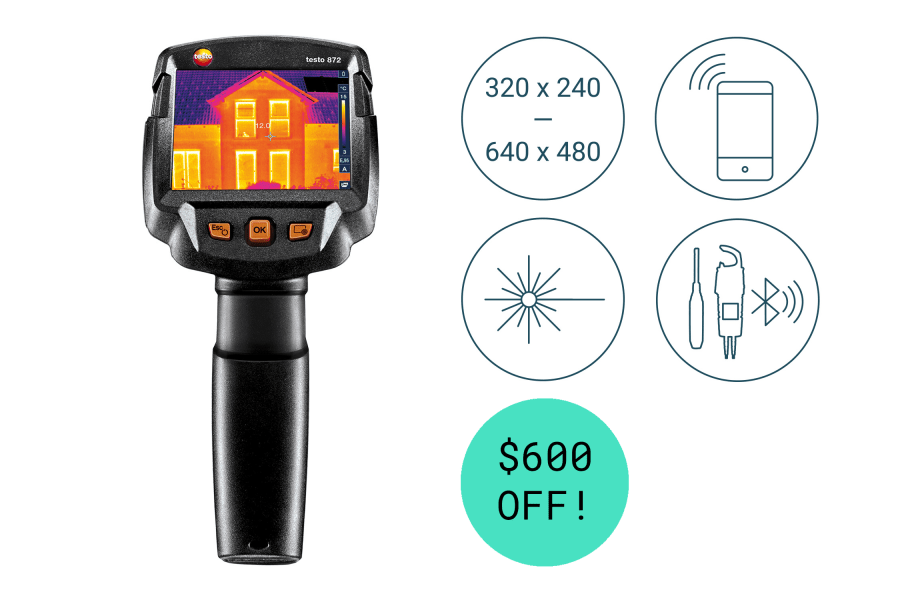

testo 872s - Thermal imager (320 x 240 pixels, App, laser)

Order-Nr. 0560 8725

$ 4,849.00

excl. tax

Where to buy

Delivery costs

Delivery time: 21 working days

1-484-705-0666

Inquiry

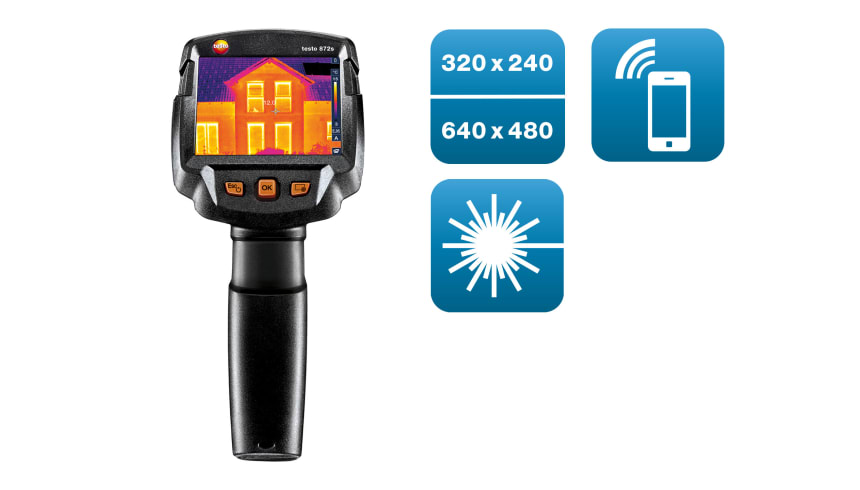

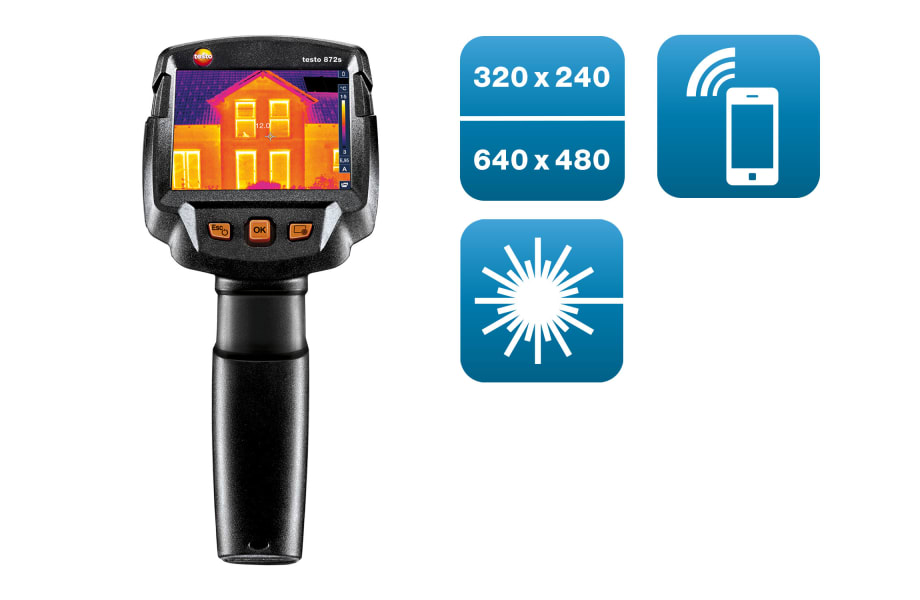

Image quality with IR resolution of 320 x 240 pixels (640 × 480 pixels with testo SuperResolution technology)
Thermal sensitivity of 0.09 °F (0.05 °C)
Recording and documentation of ambient conditions with the testo 605i Smart Probe Thermohygrometer
Integrated laser marker – can also be precisely visualized as a measuring point in the thermal image
Automatic detection of hot and cold spots
Free analytical software for creating professional reports

The testo 872s thermal imager gives you the best possible support for your work in professional industrial and building thermography. Take thermal images quickly, reliably and smartly with the highest image quality, very good thermal sensitivity and innovative functions. The case supplied with the thermal imager means it can be conveniently transported, so it is always there for you when needed.

Image quality with IR resolution of 320 x 240 pixels (with testo SuperResolution technology 640 x 480 pixels)

Details

Product Description

The testo 872s thermal imager is ideally suited for professional industrial and building thermography - at the same time it ensures your work is both quick and easy. It is versatile to use, for example in industrial and mechanical maintenance or for detecting structural defects. You can generate error-free and objectively comparable infrared images using its handy functions. The IFOV warner, testo ɛ-Assist and testo ScaleAssist mean you can avoid measurement errors and not only effortlessly achieve optimum setting of emissivity (ɛ) and reflected temperature (RTC) for building thermography, but also of thermal image scale.

The testo 872s thermal imager– smart and networked

The testo 872s thermal imager guarantees wireless communication with mobile terminal devices via Wi-Fi. The testo Thermography App for iOS and Android offers you the possibility of writing and sending reports on site, as well as saving them online, and of using your smartphone or tablet as a second display or for remote control.

The testo 872s delivers even more informative thermal images in combination with the testo 605i thermohygrometer. The thermal imager wirelessly integrates the measurement results via Bluetooth. Measure the air temperature and humidity with the testo 605i humidity measuring instrument and easily detect locations at risk of developing mold using the special humidity palette in the thermal imager via the traffic light principle.

Areas of application of the testo 872s thermal imager

Detect locations at risk of developing mold, pinpoint thermal bridges, discover structural defects or identify overheated connections. The testo 872s thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. Quick, simple and reliable for maintenance and detection of defects.

Technical highlights of the testo 872s thermal imager

The testo 872s thermal imager is characterized by its easy handling and its outstanding image quality. Its technical features are impressive:

Highest image quality thanks to high resolution: 76,800 temperature measuring points for precise thermography. Infrared resolution of 320 x 240 pixels – extendible to 640 x 480 pixels via integrated SuperResolution Technology
Detecting temperature differences from as little as 0.09°F (0.05°C)
testo Thermography App to use mobile terminal devices as a second display and for remote control or to write and send reports, along with saving them online
Wireless communication thanks to Bluetooth – this means you can also wirelessly integrate the readings of the testo 605i thermohygrometer
Built-in digital camera generates a real image in parallel to the thermal image
Integrated laser marker – can also be precisely visualized as a measuring point in the thermal image
Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
Pro software for image evaluation on the PC
You can choose to save thermal images as JPEGs.

Delivery Scope

testo 872s thermal imager with radio module for Bluetooth/Wi-Fi, USB cable, power supply, lithium-ion rechargeable battery, pro software IRSoft (free download), 3 x testo ε-Markers, commissioning instructions, short instructions, calibration protocol and case.

Practical guide for building contractors

Technical Data

Standards and warranty
EU-/EG-guidelines	RED: 2014/53/EU; EMC: 2014/30/EU

Infrared image output
Infrared resolution	320 x 240 pixel
Thermal sensitivity	< 0.09 °F (0.05 °C) (50mK)
Field of view	42° x 30°
Minimum focus distance	<1.6ft (0.5m)
Geometric resolution (IFOV)	2.3 mrad
SuperResolution (Pixel)	640 x 480 pixels
SuperResolution (IFOV)	1.3 mrad
Image refresh rate	9 Hz
Focus	Fixed focus
Spectral range	7.5 to 14 µm

Image output visual
Image size	5 MP
Minimum focus distance	min. 0.5 ft. / min. 0.5 m

Image presentation
Display type	3.5in (8.9cm) TFT, QVGA
Digital zoom	2x; 4x
Display option	IR image / real image
Color palettes	10 (iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HT)

Measurement
Measuring range	-22 to 212°F (-30 to 100°C); 0 to 1202°F (0 to 650°C)
Accuracy	±3.6°F (±2°C), 2% of reading (higher value applies)
Emissivity	0.01 to 1
Reflected temperature	manual
testo ε-Assist	Included

Measuring function
Solar mode	Input of solar radiation value
Analysis function	Mean point measurement, hot/cold-spot recognition, Delta T, area measurement (min-max on area)
Electrical mode - manual	Input of current, voltage or power
IFOV warner	Included
Humidity mode - manual	Included
testo ScaleAssist	Included
Humidity measurement with humidity measuring instrument	Automatic measurement value transfer of thermohygrometer testo 605i via Bluetooth (instrument must be ordered separately)
Electrical measurement with clamp meter	Automatic measurement value transfer of clamp meter testo 770-3 via Bluetooth (instrument must be ordedered separately)

Imager equipment
Full screen mode	Included
JPEG storage	Included
Video streaming	via wireless LAN with testo Thermography App
Standard lens	42° x 30°
Digital camera	Included
Interface	USB 2.0 Micro B
WLAN Connectivity	Communication with the testo Thermography App wireless module BT/WLAN (EU, EFTA, USA, AUS, CDN, TR)
Bluetooth	Measurement value transfer from thermohygrometer testo 605i, clamp meter testo 770-3 (optional) Wireless permit in EU, EFTA, USA, Canada, Australia, Turkey"
Laser	Laser marker

Imager storage
File format image	.bmt; .jpg; software export option in .bmp; .jpg; .png; .csv; .xls
Storage device	Internal Memory (2.8 GB)

Power supply
Battery type	Fast-charging, Li-ion battery can be changed on-site
Operating time	4.0 hr
Power supply	yes
Charging options	In instrument / USB charger

Ambient Condition
Air humidity	20 to 80 %RH non-condensing
Housing protection class	IP54
Vibration	2G
Storage temperature	-22.0° to 140.0 °F / -30 to +60 °C
Operating temperature	5.0° to 122.0 °F / -15 to +50 °C

Physical specification
Housing	PC - ABS
Weight	18.0 oz. / 510 g
Dimensions	9 x 4 x 4 in. / 219 x 96 x 95 mm

PC software
System requirements	Windows® 10; Windows® 8.1

General technical data
Product colour	Black
Display ligthing	bright / normal / dark

Accessories

Charging station for spare battery

Order Number: 0554 1103

testo ɛ-Marker, reference stickers for determining emissivity and temperature, 10 off

Order Number: 0554 0872

Adhesive tape, e.g. for reflective surfaces

Adhesive tape i.e. for polished surfaces (roll, 33ft. long, 1'' wide)

Order Number: 0554 0051

$ 124.00

excl. tax

Free download: PC software testo IRSoft

Order Number: 0501 8809

Spare battery, lithium-ion rechargeable battery for extending the operating time

Order Number: 0554 8721

$ 48.00

excl. tax

Transport Case

Holster bag for safe transport and for storing thermal imagers

Order Number: 0554 7808

Applications

Detecting structural defects and ensuring building quality (also for images of the building shell)

Analysis with the Testo thermal imager is a fast and efficient method of detecting possible structural defects. Furthermore, the thermal imager is also ideally suited for providing proof of the quality and correct implementation of construction measures. Any heat losses, humidity and lack of air tightness arising in a building are visible in the thermal image. The Testo thermal imager offers the possibility of detecting structural damage and implementation defects in the thermal insulation – all using a non-contact method! The testo ScaleAssist function, which automatically ensures optimum setting of the thermal image scale, means you get objectively comparable thermal images of buildings. This makes correct assessment of structural defects and thermal bridges easier than ever before. Detecting insulation defects and thermal bridges in the building shell is one of the typical applications.

Thermal imager testo 871 - Detecting structural defects and ensuring building quality

Carrying out detailed energy consultancy

In building thermography, infrared technology is ideally suited for the fast and effective analysis of energy losses in the heating or air conditioning of buildings. Thanks to its high temperature resolution, the thermal imager provides detailed images of inadequate insulation and thermal bridges. It is impressive in terms of recording and documenting energy losses on outer windows and doors, roller blind casings, radiator niches, roof constructions or the entire building shell. The thermal imager is the best measuring instrument for comprehensive diagnostic and maintenance uses and always a good choice when it comes to energy consultancy.

Thermal imager testo 872 - Energy consultancy

Support in preventive maintenance

Reliable early detection of damage to production-relevant systems is essential in order to guarantee the safety and reliability of the system and prevent costly downtimes. Problematic areas in electrical and mechanical production facilities usually become evident due to an increase in temperature of the affected components. You can use a thermal imager to detect critical heat conditions (known as hotspots) in your system directly during operation, therefore guaranteeing an additional bonus in terms of reliability. Typical applications for the thermal imager:

Quick location of hotspots in electrical installations
Detection of critical heat conditions in engines, shafts and bearings

Easy checking of heating systems and installations

Heating, ventilation and air conditioning systems can be quickly and reliably checked thanks to the easy and intuitive operation of the Testo thermal imager. Just a quick look with the thermal imager is enough to discover irregularities in temperature distribution. Thermography can therefore be used to easily locate clogged radiators and leaks.

Typical applications for the thermal imager:

Pinpointing the course of heating loops in an underfloor heating system
Checking radiators for silting
Measuring the flow and return temperature

Thermal imager testo 871 - Checking of heating systems and installations

On the trail of a ruptured pipe

If a pipe rupture is suspected, the only solution left is often to break open entire wall or flooring areas. The thermal imager enables you to minimize damage and reduce costs, because you locate precise leaks in underfloor heating and other inaccessible pipelines. This avoids opening up walls and floors unnecessarily and considerably reduces the repair costs.

Preventing mould formation

Thermal bridges waste energy. Condensation can also form in these places due to humidity in the ambient air. As a result, mould develops in these areas with the associated health risks for the occupants. The thermal imager uses the ambient temperature and humidity, determined externally with the testo 605i Smart Probe, along with the measured surface temperature to calculate the value of the relative surface moisture for each measuring point directly in the measuring instrument. Mould formation is therefore shown on the display before it becomes visible: areas at risk are displayed in red, those not at risk in green. This makes it possible to introduce measures to prevent dangerous mould formation in good time - including in hidden corners and alcoves.

Testing the air tightness of new builds

If doors or windows are not correctly fitted, in winter cold air can enter or warm indoor air can escape. This results in draughts, increased ventilation heat loss and above all high energy costs. The combination of thermography and Blower Door has really proved its worth. This procedure involves creating a negative pressure in the building, so that cool outside air can flow into the interior of the building through leaky joints and cracks. A Testo thermal imager makes the detection of the leaks considerably easier here. Any leaks are located – before facings and fittings for the new build make repair work complicated and costly.
