testo Smart Probes Heating Set - Wireless Smart Probe Kit

Order-Nr. 0563 0004

$ 376.00

excl. tax

Where to buy

Delivery costs

Delivery time: 1 working days

1-484-705-0888

Inquiry

Measures manifold gas pressure, pressure drop, air flow, (with optional pitot tube), and pipe and radiator temperatures
Performs timed pressure leak-down tests on pipe systems
Measures the temperature of pipes in heating and cooling systems with accurate and stable NTC temperature sensor
Live data feed integration now available with the MeasureQuick App

The testo Hydronic Heating System Smart Probe Set contains three instruments designed for use on a hydronic heating system to determine gas flow and static pressure, measure temperature of radiators with an IR probe, and to measure pressure leak-down tests in piping systems.

Details

Product Description

The instruments can be used simultaneously, and read through your smart device using the testo Smart Probes app. This kit comes with a handy case at a great value.

The testo Smart Probes app is a powerful and easy to use tool. It allows you to remotely read measurements from up to six (6) Smart Probes, and easily document and report the results. Automatic calculations make it a snap!

All measurement data is displayed as instrument readings, tables, or graphs. The measurements can be quickly saved as PDF or Excel files. The app creates custom reports, which can be saved and/or shared by email. All your data can be stored and retrieved, saving you hours of time consuming paperwork.

Delivery Scope

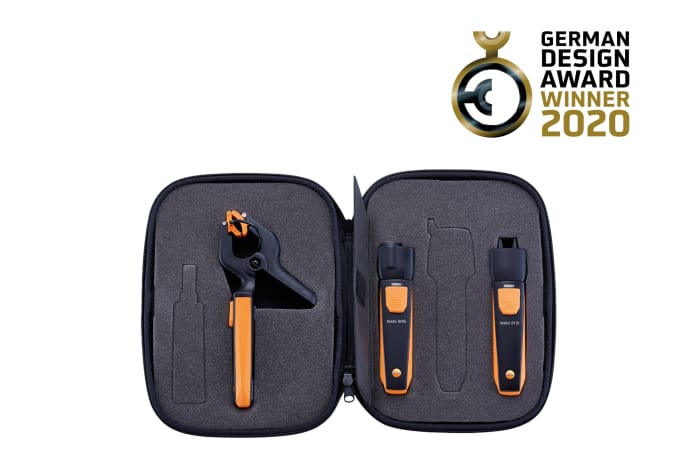

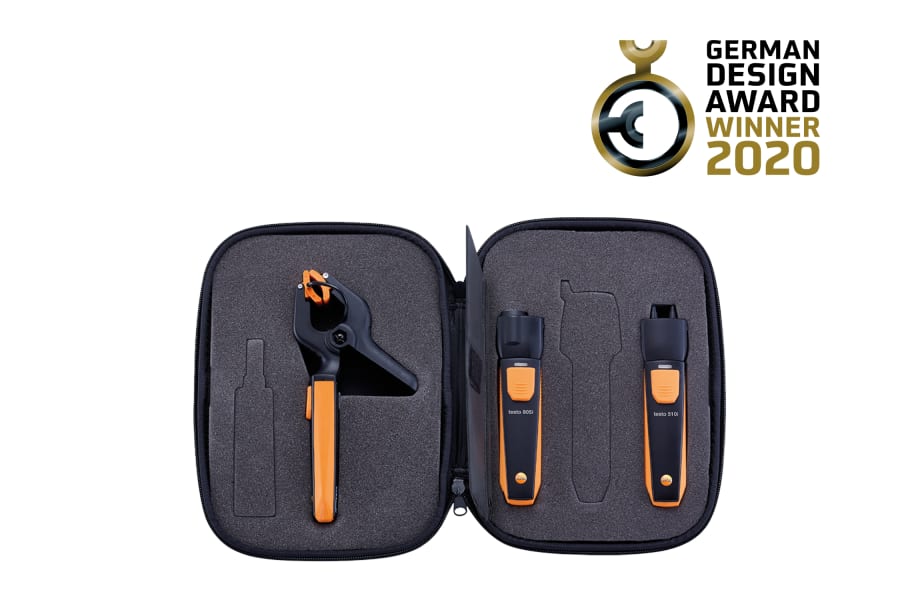

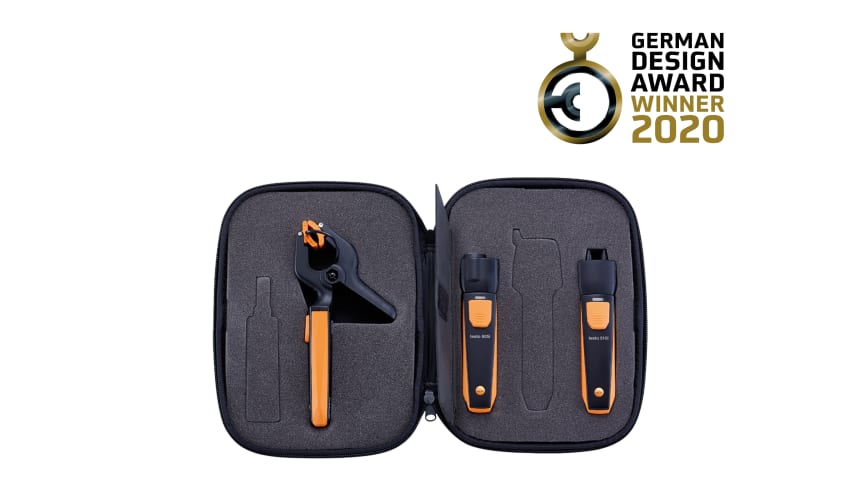

testo Smart Probes Hydronic Heating set for pressure and temperature measurement on heating systems, including 1x testo 115i, 1x testo 510i with hose set (Ø 0.15 in. and 0.2 in.) and adapter, 1x testo 805i, testo Smart Case (heating), batteries, and certificate of calibration

Customers who viewed this product also viewed

testo 510i - Differential pressure manometer wireless Smart Probe

Order-Nr. 0560 1510
- Pocket-sized temperature and air density-compensated differential pressure measurement
- Measures static pressure, air flow, and volume flow (pitot tube not included)
Details
testo Smart Probes AC & refrigeration test kit

Order-Nr. 0563 0002 20
- High-precision measurement technology with convenient smartphone operation
- In the kit: 2 x testo 115i clamp thermometers, 2 x testo 549i high-pressure gauges, testo HVAC softcase
Details
testo Smart Probes AC & Refrigeration Test & Load kit

Order-Nr. 0563 0009
- High-precision measurement technology with convenient smartphone operation
- In the kit: 2 x testo 115i clamp thermometers, 2 x testo 549i high-pressure gauges, 2 x testo 605i thermohygrometers, testo HVAC softcase
Details
testo Smart Probes AC & refrigeration test kit

Order-Nr. 0563 0002 10
- High-precision measurement technology with convenient smartphone operation
- In the kit: 2 x testo 115i clamp thermometers, 2 x testo 549i high-pressure gauges, testo Smart Case
Details
testo 549i - High-pressure gauge operated via smartphone

Order-Nr. 0560 2549 03
- Measurement of high and low pressure
- Low refrigerant loss – since no hoses are required for measurements
Details
testo Smart Probes heating kit

Order-Nr. 0563 0004 10
- Non-contact temperature measurement, measurement of flow and return temperature as well as gas flow pressure
- Measurement menu for pressure-drop test including alarm function
Details
testo Smart Probes Heating Set - Wireless Smart Probe Kit

Order-Nr. 0563 0004
- Measures manifold gas pressure, pressure drop, air flow, (with optional pitot tube), and pipe and radiator temperatures
- Performs timed pressure leak-down tests on pipe systems
Details
testo Smart Probes AC & refrigeration test kit - *Discontinued Short Range Version*

Order-Nr. 0563 0002 02
- Fast and simple installation of the testo 549i high-pressure measuring instrument directly onto the pressure connection
- Low refrigerant loss thanks to hoseless application
Details
testo 512-2 - Digital differential pressure measuring instrument with App connection

Order-Nr. 0563 2512
- Simple, fast and precise differential pressure measurement with a large measuring range (0 to 2000 hPa)
- Fast in-app (duct) configuration, graph history, second screen and measurement data memory in the testo Smart App
Details
testo 512-1 - Digital differential pressure measuring instrument with App connection

Order-Nr. 0563 1512
- Simple, fast and precise differential pressure measurement (0 to 200 hPa) for checking filters and for Pitot tube measurement in the ventilation duct
- Reliable measurement results due to position-independent differential pressure sensor with high accuracy
Details

Technical Data

Temperature - NTC
Measuring range	-40° to 302 °F / -40 to +150 °C
Accuracy	±2.3 °F (-4° to 185 °F) / ±1.3 °C (-20 to +85 °C)
Resolution	0.1 °F / 0.1 °C

Temperature - Infrared
Measuring range	-22° to 482 °F / -30 to +250 °C
Accuracy	±34.7 °F or ±1.5 % of mv (32° to 482 °F) / ±1.5 °C or ±1.5 % of mv (0 to +250 °C) ±36 °F (-4° to 31.8 °F) / ±2 °C (-20 to -0.1 °C) ±36.5 °F (-22° to -4.2 °F) / ±2.5 °C (-30 to -20.1 °C)
Resolution	0.1 °F / 0.1 °C

Temperature - Infrared

Measuring range

-22° to 482 °F / -30 to +250 °C

Accuracy

±34.7 °F or ±1.5 % of mv (32° to 482 °F) / ±1.5 °C or ±1.5 % of mv (0 to +250 °C)

±36 °F (-4° to 31.8 °F) / ±2 °C (-20 to -0.1 °C)

±36.5 °F (-22° to -4.2 °F) / ±2.5 °C (-30 to -20.1 °C)

Resolution

0.1 °F / 0.1 °C

Differential pressure (internal sensor) - Piezoresistive
Measuring range	-60 to +60 InH₂O / -150 to +150 hPa
Accuracy	±0.02 InH₂O (0 to +0 InH₂O) / ±0.05 hPa (0 to +1 hPa) ±(0.1 InH₂O + 1.5 % of mv) (+0 to +60 InH₂O) / ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)
Resolution	0.01 InH₂O / 0.01 hPa

Differential pressure (internal sensor) - Piezoresistive

Measuring range

-60 to +60 InH₂O / -150 to +150 hPa

Accuracy

±0.02 InH₂O (0 to +0 InH₂O) / ±0.05 hPa (0 to +1 hPa)

±(0.1 InH₂O + 1.5 % of mv) (+0 to +60 InH₂O) / ±(0.2 hPa + 1.5 % of mv) (+1 to +150 hPa)

Resolution

0.01 InH₂O / 0.01 hPa

Pressure measurement
Probe connection	7 / 16 in. - UNF

General technical data
Weight	19.9 oz. / 565 g
Dimensions	7 x 4 x 1 in. (testo 115i) / 183 x 90 x 30 mm (testo 115i) 6 x 1 x 1 in. (testo 510i) / 148 x 36 x 23 mm (testo 510i) 6 x 1 x 1 in. (testo 805i) / 140 x 36 x 25 mm (testo 805i)
Operating temperature	-4° to 122 °F (testo 115i + testo 510i) / -20 to +50 °C (testo 115i + testo 510i) 14° to 122 °F (testo 805i) / -10 to +50 °C (testo 805i)
Housing	Plastic
System requirements	requires iOS 8.3 or newer; requires Android 4.3 or newer; requires mobile end device with Bluetooth 4.0
Product colour	Black
Battery type	3 x AAA
Battery life	150 h (testo 115i); 150 h (testo 510i); 30 h (testo 805i)
Storage temperature	-4° to 140 °F / -20 to +60 °C
