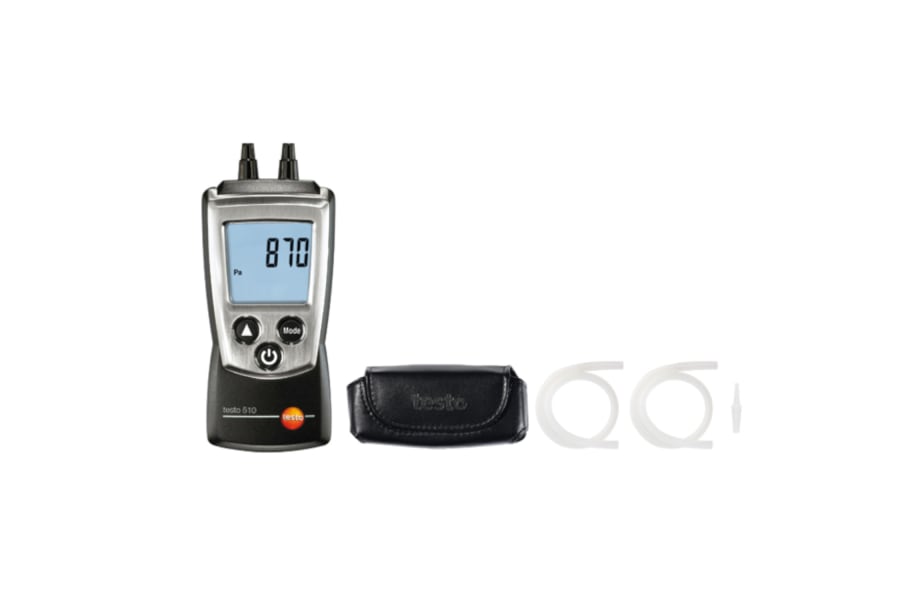

testo 510 - Differential Pressure Meter

Order-Nr. 0563 0510

£ 135.00

incl. VAT £ 162.00

Delivery costs

Delivery time: 3 – 5 working days

+44 1420 358123

Inquiry

Pocket-sized temperature and air density-compensated differential pressure measurement
Illuminated display
Magnets on the rear allow hands-free work
50 hours of battery life
10 selectable units
Flow measurement possible with a Pitot tube (available as an option)

Differential pressure measurement on gas hot water heaters or on filters of air conditioning systems, and also flow measurements in ventilation ducts using a Pitot tube: the compact testo 510 differential pressure measuring instrument, which comes with a silicone connection hose and other useful accessories, can help you maintain and install systems in the sanitary and HVAC sector.

Details

Product Description

Overview

With the testo 510 differential pressure measuring instrument, heating installers and air conditioning engineers will be well-equipped to carry out their work: the instrument measures differential pressure from 0 to 100 mbar and can help you check filters on air conditioning systems or measure static gas and gas flow pressure on heating systems, for example.

The following units can be selected on the testo 510 differential pressure measuring instrument:

Pa
hPa
mbar
mmH₂O
mmHg
inH₂O
inHg
psi
m/s
fpm

In addition, you can measure the flow in the ventilation duct with a Pitot tube that is available as an option - from 10 to 100 m/s.

Practical and precise: key advantages offered by the differential pressure measuring instrument

Precise: the differential pressure measurement has temperature and air density compensation for accurate readings
Uncomplicated: small, handy and easy to operate with just three buttons
Clever: you can work with your hands free thanks to magnets on the rear of the instrument. When there is poor visibility, such as in dark surroundings, the illuminated display makes it easier for you to work
Reliable: a belt pouch and plug-on protective cap mean the differential pressure measuring instrument can be safely stowed away and it is also well-secured during measurement thanks to a wrist strap
Ready to go: the silicone connection hose is included in the testo 510 set. So you can start your measurements straight away

Delivery Scope

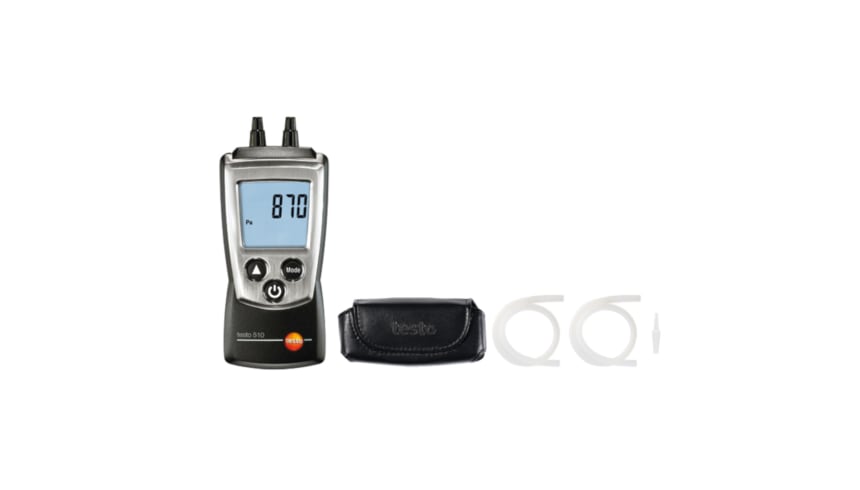

testo 510 - Differential Pressure Meter, protection cap, belt holder, 2 x connection hoses, wrist strap, calibration protocol

Customers who viewed this product also viewed

testo 510 - Differential Pressure Meter

Order-Nr. 0563 0510
- Pocket-sized temperature and air density-compensated differential pressure measurement
- Illuminated display
Details
testo 420 - Differential pressure measuring instrument

Order-Nr. 0560 0420
- Differential pressure measurement, e.g. to check filters in air conditioning and ventilation systems
- Calculate flow velocity and volume flow using a Pitot tube
Details
testo 440 dP - Air velocity and IAQ measuring instrument including differential pressure sensor

Order-Nr. 0560 4402
- A measuring instrument for all climate-related parameters
- Includes a differential pressure sensor: for Pitot tube measurement and monitoring filters
Details
testo 440 delta P Air Flow ComboKit 2 with Bluetooth®

Order-Nr. 0563 4410
- A measuring instrument for all climate-related parameters
- Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts, at ventilation outlets and in work rooms
Details
testo 440 delta P Air Flow ComboKit 1 with Bluetooth®

Order-Nr. 0563 4409
- A measuring instrument for all climate-related parameters
- Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts or at ventilation outlets
Details
testo 400 - Universal IAQ instrument

Order-Nr. 0560 0400
- A measuring instrument for all climate-related parameters
- Smart, intuitive measurement programs including HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD and turbulence as per EN ISO 7730 and ASHRAE 55
Details
testo 400 air flow kit with hot wire probe

Order-Nr. 0563 0400 71
- A measuring instrument for all climate-related parameters
- Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111
Details
testo 400 air flow kit with 16 mm vane probe

Order-Nr. 0563 0400 72
- A measuring instrument for all climate-related parameters
- Standard-compliant determination of the volume flow in ducts using grid measurements as per EN ISO 12599 and ASHRAE 111
Details
testo 512-1 - Digital differential pressure measuring instrument with App connection

Order-Nr. 0563 1512
- Simple, fast and precise differential pressure measurement (0 to 200 hPa) for checking filters and for Pitot tube measurement in the ventilation duct
- Reliable measurement results due to position-independent differential pressure sensor with high accuracy
Details

Technical Data

General technical data
Dimensions	119 x 46 x 25 mm
Operating temperature	0 to +50 °C
Protection class	IP40
Seceltable units	hPa, mbar, Pa, mmH2O, inH₂O, inHg, mmHg, psi, m/s, fpm
Maximal static pressure	500 mbar
Measuring rate	0.5 s
Battery type	2 AAA micro batteries
Battery life	50 h (average, without display illumination)
Storage temperature	-40 to +70 °C
Weight	90 g (with batteries and protective cap)

Differential Pressure - Piezoresistive
Measuring range	0 to 100 hPa
Accuracy	±0.03 hPa (0 to 0.30 hPa) ±0.05 hPa (0.31 to 1.00 hPa) ±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)
Resolution	0.01 hPa

Differential Pressure - Piezoresistive

Measuring range

0 to 100 hPa

Accuracy

±0.03 hPa (0 to 0.30 hPa)

±0.05 hPa (0.31 to 1.00 hPa)

±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)

Resolution

0.01 hPa

Applications

Pocket-sized differential pressure measurement

For quick jobs: Stow the compact differential pressure measuring instrument with clip-on protective cap in your shirt or trouser pocket or in the belt holder included in delivery. That way you always have it ready to hand for measurements on water and VAC systems!

testo 510 for measurements on water and VAC systems!

Differential pressure measurement on filters

Air conditioning systems are equipped with filters which prevent dirt from the outside air entering the indoor air. These filters are to be inspected regularly to make sure they are still fully functional. To do this, the pressure is measured in front of and behind the filter. The result is the differential pressure. If it is too high, the filter is contaminated and needs changing.

The testo 510 measures differential pressures in a range of 0 - 100 hPa. The differential pressure measurement is temperature-compensated for exact readings. The readings can be displayed in pascal over the entire measuring range. Magnets on the rear of the instrument allow hands-free work.

testo 510: Differential pressure measurement on filters

Measurement in ventilation ducts

Observance of air flows in the ventilation duct is of utmost importance for the function of the ventilation and air conditioning system. If the air flows are smaller than intended, the removal of room loads (heating, cooling and substance loads) may not be ensured in certain circumstances.

Therefore, the most accurate recording of air flows as possible is particularly important.

In conjunction with a pitot tube, testo 510 measures the air velocity in the range of 10 to 100 m/s. Magnets on the rear of the instrument allow hands-free work.

testo 510: Measurement in ventilation ducts
