testo 417 - Rotating vane anemometer

Order-Nr. 0560 4170

$ 485.10

excl. tax

Where to buy

Delivery costs

Delivery time in days: on request

1-484-773-0111

Inquiry

Determining the volume flow by funnel measurement
Compact anemometer with integrated 100 mm vane
For measuring air flow, volumetric flow rate and temperature
Measurement of flow velocity
Availability of different attachable measurement funnels
Flow direction detection

Product no longer available. Have you checked out its successor?
Why not enjoy the benefits that it has to offer: >> To the product

Determining the volume flow by funnel measurement

Details

Product Description

The testo 417 rotating vane anemometer has a 4 inch vane, allowing for precise readings of air velocity, CFM, and temperature on its easy to read display. By inputting duct measurements into the 417, volume flow calculations can automatically be displayed. With the capability of quickly switching between air velocity and temperature measurements, using the testo 417 air flow meter is a breeze.

Resolution of 0.01 fpm ensures accurate readings
Quality design and construction for dependable use day after day
Auto-off function saves battery life
Timed average calculations ensure accurate readings when encountering eddies

Delivery Scope

testo 417 vane anemometer with integrated 100 mm vane, calibration protocol, and battery

Technical Data

General technical data
Weight	8 oz. / 230 g
Dimensions	11 x 4 x 2 in. / 277 x 105 x 45 mm
Operating temperature	32° to 122 °F / 0 to +50 °C
Housing	ABS
Battery type	9V block battery, 6F22
Battery life	50 h
Storage temperature	-40° to 158 °F / -40 to +70 °C

Temperature - NTC
Measuring range	32° to 122 °F / 0 to +50 °C
Accuracy	±0.9 °F / ±0.5 °C
Resolution	0.1 °F / 0.1 °C

Velocity - Vane anemometer
Measuring range	+59.1 to +3937 fpm / +0.3 to +20 m/s
Accuracy	±(19.7 fpm + 1.5 % of mv) / ±(0.1 m/s + 1.5 % of mv)
Resolution	1.97 fpm / 0.01 m/s

Volume flow
Measuring range	0 to +58857 CFM / 0 to +99999 m³/h 0 to +259 CFM (testo 417 in combination with funnel set (0563 4170)) / 0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170)) 0.1 to +118 CFM , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172)) / 0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))
Resolution	0.1 CFM (0 to +58.8 CFM) / 0.1 m³/h (0 to +99.9 m³/h) 1 CFM (+59 to +58857 CFM) / 1 m³/h (+100 to +99999 m³/h)

Volume flow

Measuring range

0 to +58857 CFM / 0 to +99999 m³/h

0 to +259 CFM (testo 417 in combination with funnel set (0563 4170)) / 0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))

0.1 to +118 CFM , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172)) / 0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))

Resolution

0.1 CFM (0 to +58.8 CFM) / 0.1 m³/h (0 to +99.9 m³/h)

1 CFM (+59 to +58857 CFM) / 1 m³/h (+100 to +99999 m³/h)

Sets

Product sets

testovent 417 volume flow straightener set

Flow straigthener set testovent 417 consisting of funnel set testovent 417 and flow straigthener testovent 417

Order Number: 0554 4173

With readings of up to 4,000 fpm and the attached large vane, the testo 417 rotating vane anemometer kit is ideal for collecting reliable measurements for air velocity, CFM, and temperature at both supply and return grills. The included soft carrying case ensures the air flow meter is protected against light drops and the elements.

Order Number: 0563 4171

$ 687.00

excl. tax

Accessories

9V rechargeable battery for instrument

Order Number: 0515 0025

Flow straightener testovent 417

Order Number: 0554 4172

Flow straigthener set testovent 417 consisting of funnel set testovent 417 and flow straigthener testovent 417

Order Number: 0554 4173

The flow funnel kit is an optional kit for the testo 417, and can be used with the vane attachment of the testo 435. The flow funnel is ideal for measurements below 50 CFM. The funnel kit Includes an 8 inch round and 13 inch square funnel, ensuring proper measurements for a variety of ducts.

Order Number: 0563 4170

Applications

Measurement of volumetric flow, flow velocity and temperature

Every duct inlet and outlet should only contain the volumetric flow that according to calculations is a basic prerequisite to an efficient functional system.

Particularly large vane anemometers are suitable for measuring the volumetric flows at duct outlets, as these integrate the flow velocity over a larger area thereby determining disturbance from the air grille (loop method).

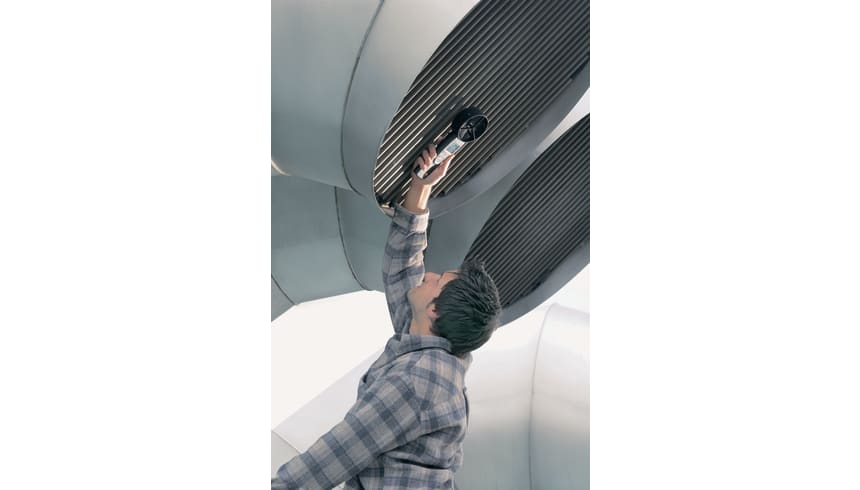

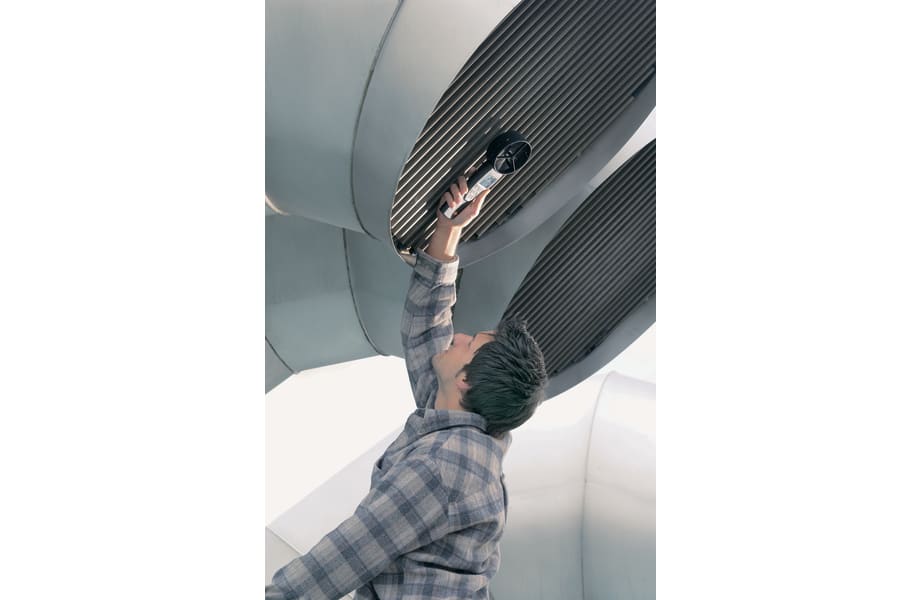

A volumetric flow rate funnel and a large vane are ideal when taking readings at the suction or blowing vents of air grilles and poppet valves. The entire volumetric flow is recorded with the aid of the funnel without the need for conversion on the basis of the flow velocity and area. This method of flow measurement is simple and reliable.

The compact anemometer testo 417 with integrated flow/temperature vane (Ø 100 mm) is ideal for measuring the flow velocity, volumetric flow and temperature at duct outlets. The optional funnel set allows measurements at ventilation grilles and poppet valves.

Downloads

Product Brochures

Manuals

Instruction manual testo 417 (PDF, 1154 kB)
