testo 417 - Rotating vane anemometer

Testo 417
Product no longer available. Have you checked out its successor?
Why not enjoy the benefits that it has to offer: >> To the product
  • Determining the volume flow by funnel measurement
  • Compact anemometer with integrated 100 mm vane
  • For measuring air flow, volumetric flow rate and temperature
  • Measurement of flow velocity
  • Availability of different attachable measurement funnels
  • Flow direction detection
The testo 417 rotating vane anemometer has a 4 inch vane, allowing for precise readings of air velocity, CFM, and temperature on its easy to read display. By inputting duct measurements into the 417, volume flow calculations can automatically be displayed. With the capability of quickly switching between air velocity and temperature measurements, using the testo 417 air flow meter is a breeze.
  • Resolution of 0.01 fpm ensures accurate readings
  • Quality design and construction for dependable use day after day
  • Auto-off function saves battery life
  • Timed average calculations ensure accurate readings when encountering eddies

General technical data

Weight
8 oz. / 230 g
Dimensions
11 x 4 x 2 in. / 277 x 105 x 45 mm
Operating temperature
32° to 122 °F / 0 to +50 °C
Housing
ABS
Battery type
9V block battery, 6F22
Battery life
50 h
Storage temperature
-40° to 158 °F / -40 to +70 °C

Temperature - NTC

Measuring range
32° to 122 °F / 0 to +50 °C
Accuracy
±0.9 °F / ±0.5 °C
Resolution
0.1 °F / 0.1 °C

Velocity - Vane anemometer

Measuring range
+59.1 to +3937 fpm / +0.3 to +20 m/s
Accuracy
±(19.7 fpm + 1.5 % of mv) / ±(0.1 m/s + 1.5 % of mv)
Resolution
1.97 fpm / 0.01 m/s
testo 417 vane anemometer with integrated 100 mm vane, calibration protocol, and battery

Product sets

testovent 417 volume flow straightener set

: 0554 4173

Flow straigthener set testovent 417 consisting of funnel set... - flow straightener set for volume flow

Flow straigthener set testovent 417 consisting of funnel set testovent 417 and flow straigthener testovent 417

$ 416.50
testo 417 vane anemometer

: 0563 4171

testo 417 Kit - Rotating Vane Anemometer with Soft Case and 2 Air Flow Funnels

Determining the volume flow by funnel measurement

Measurement of volumetric flow, flow velocity and temperature

Every duct inlet and outlet should only contain the volumetric flow that according to calculations is a basic prerequisite to an efficient functional system.

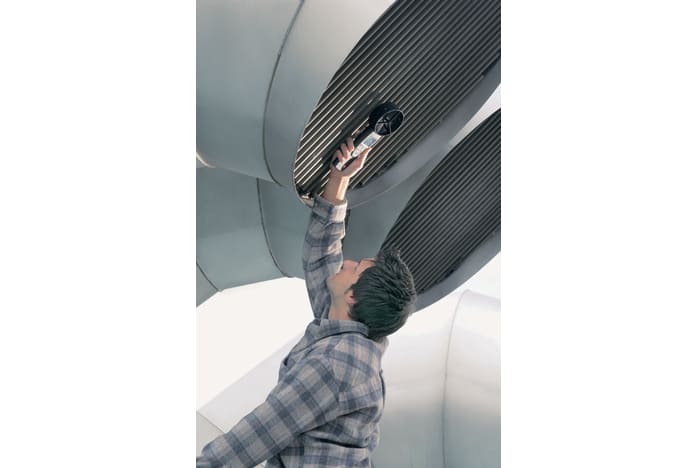

Particularly large vane anemometers are suitable for measuring the volumetric flows at duct outlets, as these integrate the flow velocity over a larger area thereby determining disturbance from the air grille (loop method).

A volumetric flow rate funnel and a large vane are ideal when taking readings at the suction or blowing vents of air grilles and poppet valves. The entire volumetric flow is recorded with the aid of the funnel without the need for conversion on the basis of the flow velocity and area. This method of flow measurement is simple and reliable.

The compact anemometer testo 417 with integrated flow/temperature vane (Ø 100 mm) is ideal for measuring the flow velocity, volumetric flow and temperature at duct outlets. The optional funnel set allows measurements at ventilation grilles and poppet valves.

  • not available

Accessories

9V rech. battery for instrument

: 0515 0025

9V rechargeable battery for instrument - 9V rechargeable battery for instrument

9V rechargeable battery for instrument

Soft case for measuring instrument

: 0516 0210

Soft Carrying Case for instrument

Case for instrument

$ 57.00
testovent 417 volume flow straightener

: 0554 4172

testovent 417 - flow straightener

Determining the volume flow by funnel measurement

$ 171.00
testovent 417 volume flow straightener set

: 0554 4173

Flow straigthener set testovent 417 consisting of funnel set... - flow straightener set for volume flow

Flow straigthener set testovent 417 consisting of funnel set testovent 417 and flow straigthener testovent 417

$ 416.50
testovent 417 funnel set

: 0563 4170

Flow Funnel Kit - funnel set for volume flow measurement

The flow funnel kit is an optional kit for the testo 417, and can be used with the vane attachment of the testo 435. The flow funnel is ideal for measurements below 50 CFM. The funnel kit Includes an 8 inch round and 13 inch square funnel, ensuring proper measurements for a variety of ducts.

$ 242.25
