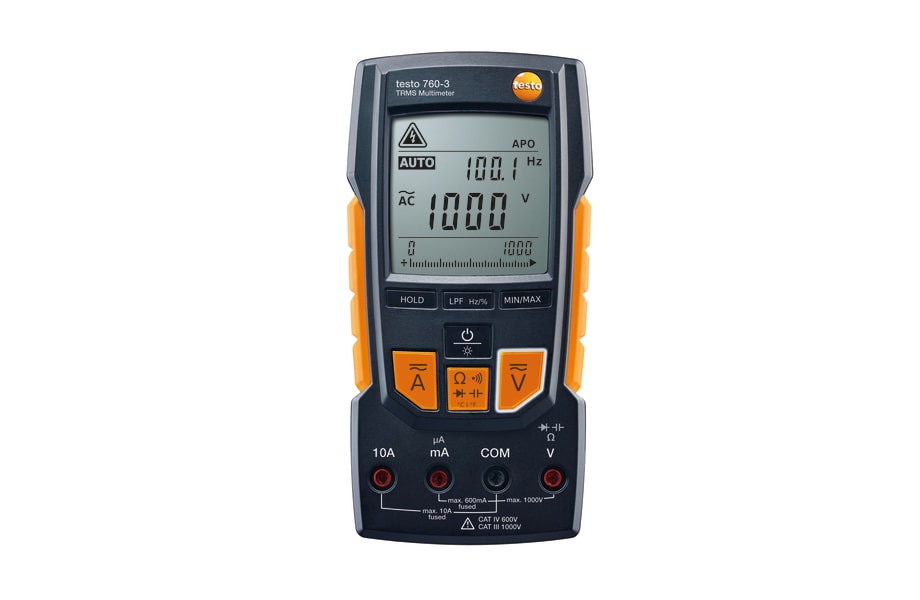

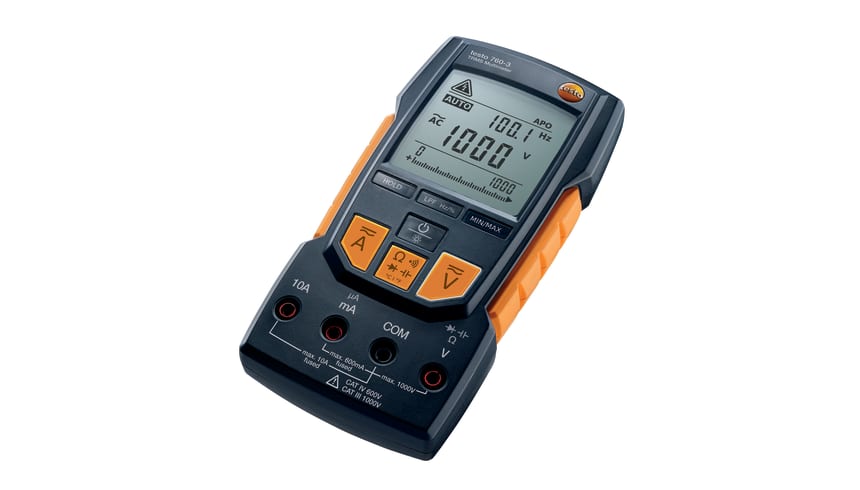

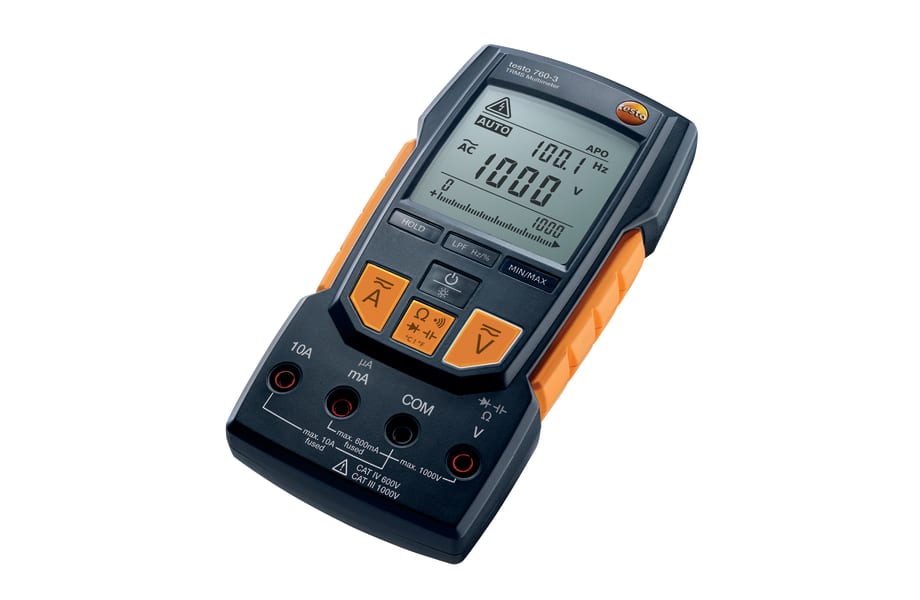

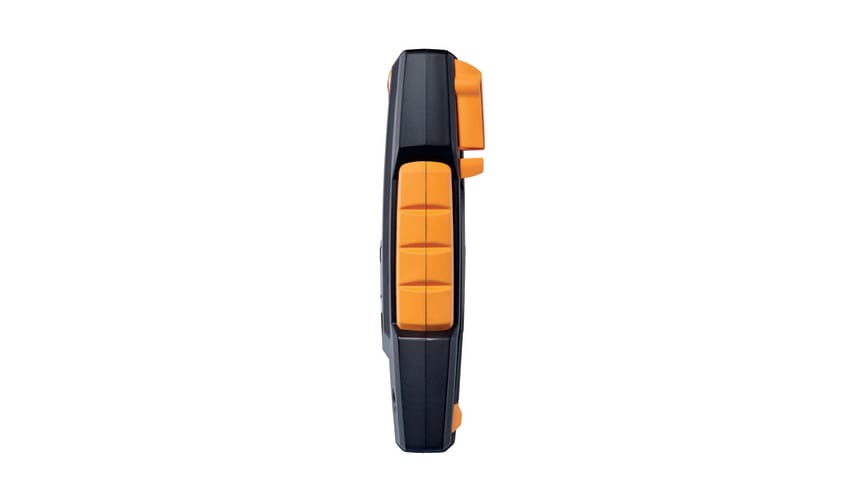

testo 760-3 - Digital multimeter with type K, TRMS, and 1,000 V range

Order-Nr.  0590 7603

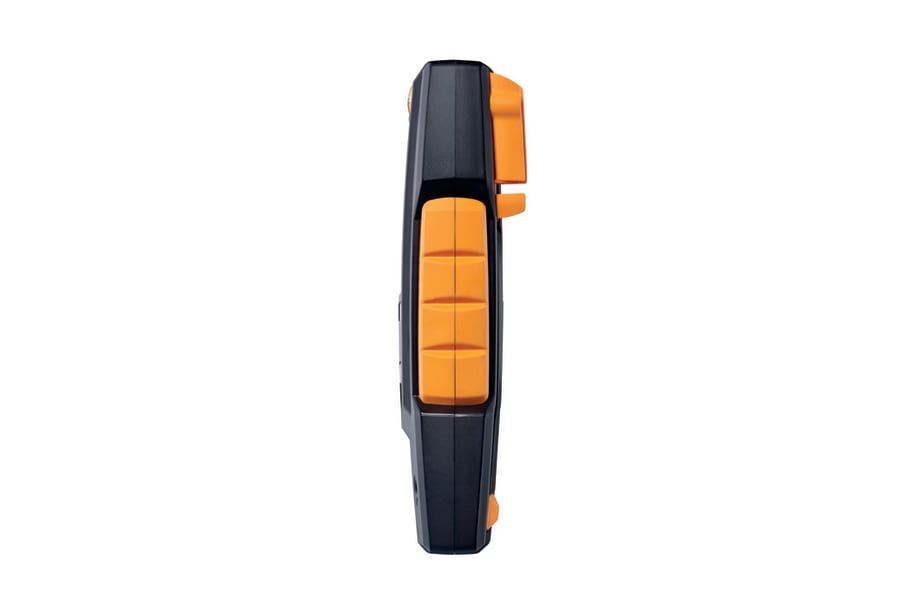

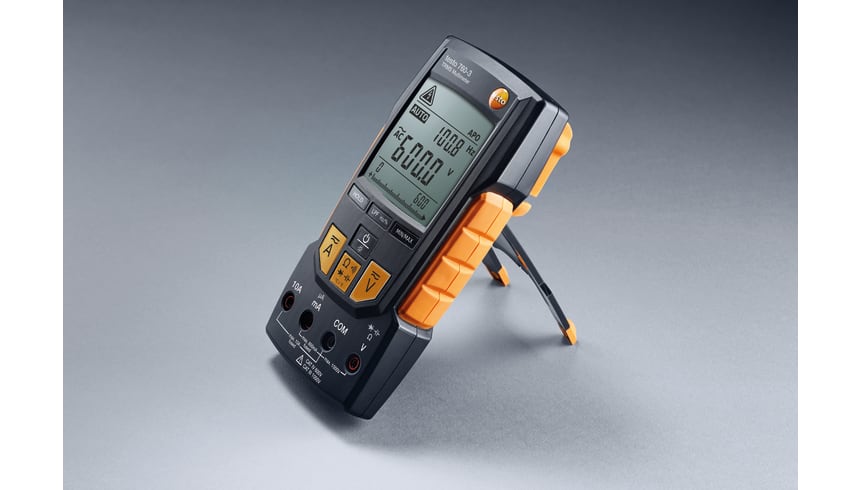

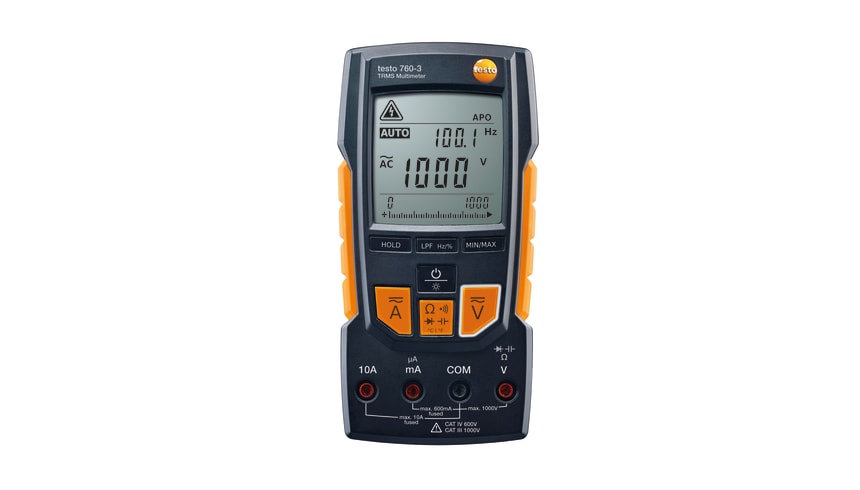

  • testo 760-3
  • testo 760-3
  • testo 760-3
  • testo 760-3 box contents

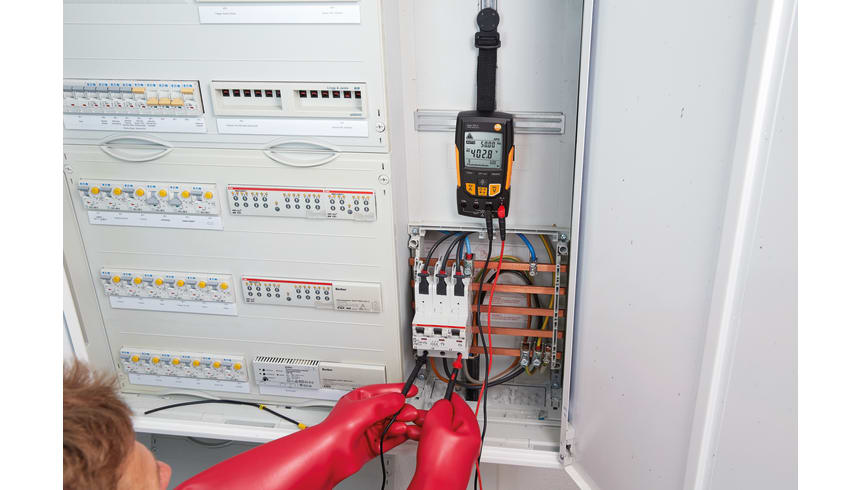

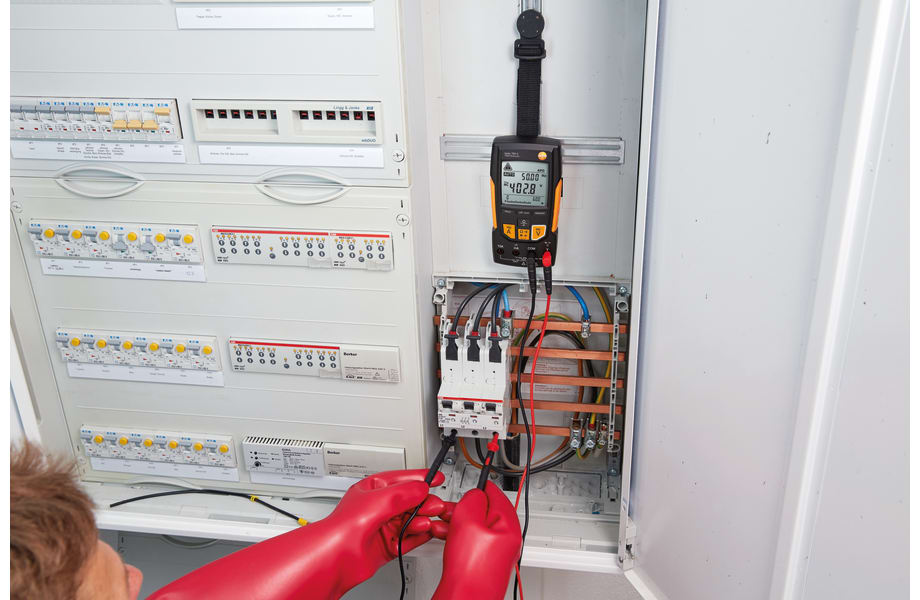

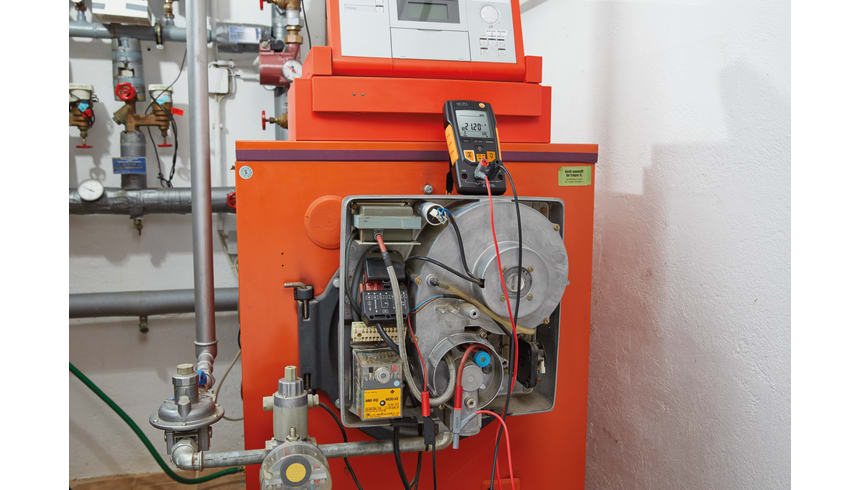

  • testo 760-3 in use
  • testo 760-3 in use
Where to buy
+1 484 705 0888
Inquiry

  • 1,000 V AC/DC voltage measuring range, TRMS, and low pass filter

  • Auto-test setup based upon lead connection prevents blown fuses in the meter

  • Meter automatically detects testing in-process, and selects the correct meter configuration, saving time and optimizing accuracy

  • Measure up to 400 A with optional clamp probe adapter

In addition to the features of the testo 760-2, the testo 760-3 has an AC/DC voltage measuring range of 1,000 V, and includes TRMS, duty cycle, low pass filter, and temperature measuring functionalities.  Testo’s exclusive auto-test setup enables the user to simply turn the unit on, connect the leads, and begin measuring.  The testo 760-3 digital multimeter detects the lead connection, and prevents switching from V to A, or A to V, if the leads are not in the proper socket.  This prevents accidentally blowing the meter’s fuse because of incorrect connections.

Details

Product Description

This multimeter's function and range settings are always correct, because its measurement parameters are detected and set automatically.  Three easy to read buttons replace the traditional rotary switch for selecting manual test functions.

Additional benefits:

  • APO (Auto Power Off) saves battery life
  • Rugged meter with overmold housing
  • Large, backlit, dual readout display with analog bar graph is easy to read

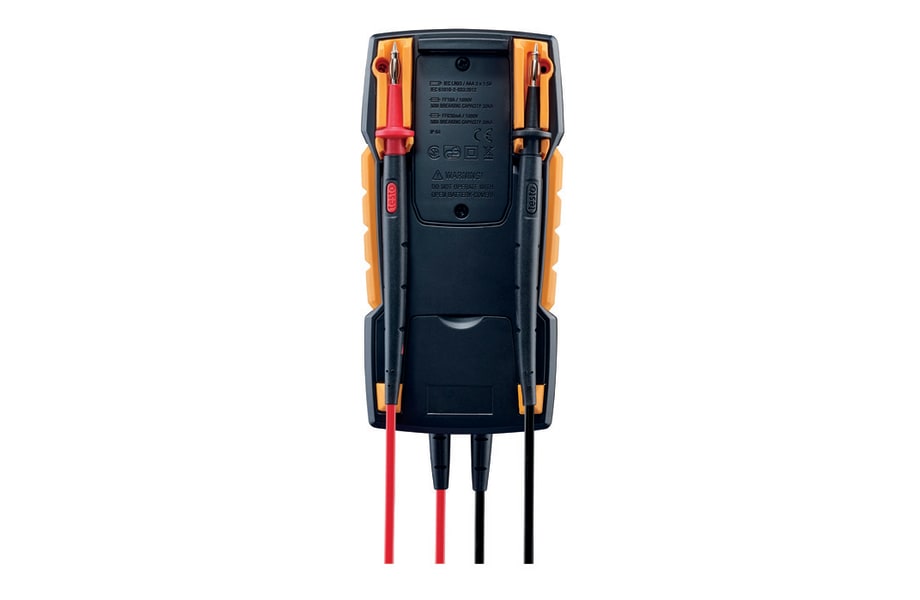

  • Lead holder conveniently molded into housing for easy storage

Testo’s history of efficiency, innovation, and quality now extends into the entire electrical lineup.  Once again, Testo brings high value, feature-packed products to the HVAC contractor market.

Delivery Scope

testo 760-3 digital multimeter 1,000 V, including test leads, 3 AAA batteries, instruction manual, quick start guide, and certificate of conformity

Technical Data

Temperature - Type K TC

Measuring range

-4.0° to 932.0 °F / -20 to +500 °C

Accuracy

±1.8 °F (32° to 212 °F) / ±1 °C (0 to +100 °C)

Resolution

0.2 °F / 0.2 °C
DC voltage

Measuring range

0.1 to 1000 V

Resolution

max. 0.1 mV

Accuracy

± (0.8 % of mv + 3 Digit)
AC voltage

Measuring range

0.1 mV to 1000 V

Resolution

max. 0.1 mV

Accuracy

± (1.0 % of mv + 3 Digit)
DC current

Measuring range

0.1 μA to 10 A

Resolution

max. 0.1

Accuracy

± (1.5 % of mv + 5 Digit)
AC current

Measuring range

0.1 μA to 10 A

Resolution

max. 0.1 μA

Accuracy

± (1.5 % of mv + 5 Digit)
Resistance

Resolution

max. 0.01 Ohm

Measuring range

0.01 to 60.00 MOhm

Accuracy

± (1.5 % of mv + 3 Digit)
Capcitance

Resolution

max. 0.01 nF

Measuring range

0.001 nF to 60000 μF

Accuracy

± (1.5 % of mv + 5 Digit)
Frequency

Resolution

max. 0.1 Hz

Measuring range

0.001 Hz to 60.00 MHz

Accuracy

± (0.1 % of mv + 1 Digit)
General technical data

Operating humidity

0 to 80 %rH

Weight

11.99 oz. / 340 g

Dimensions

6.6 x 3.3 x 1.8 in. / 167 x 85 x 45 mm

Operating temperature

14° to 122 °F / -10 to +50 °C

Product colour

Black

Connectable probes

1 x temperature probe (adapter required for type K thermocouples)

Protection class

IP64

Standards

EN 61326-1; EN 61010-2-033; EN 61140

Battery type

3 x AAA

Display type

LCD

Display size

2 lines

Interface

4 measuring jacks

Storage temperature

5° to 140 °F / -15 to +60 °C

Overvoltage Category

CAT IV 600V; CAT III 1000V

Authorizations

CE; CSA

Internal_resistance

11 MOhm (AC / DC)
Instrument Measurement Functions

Diode test

yes

Continuity testing

yes

Current probe measurement with adapter

yes

Display ligthing

yes

Hold

yes

MinMax

yes

Temperature measurement with adapter

yes

True RMS

yes

Low-pass filter

yes

Duty cycle measurement

yes

Display (counts)

6,000

μA current measuring range

yes

Autom. measurement parameter detection

yes

Accessories

Accessories

Cross-Seller Magnetic hook 0590 0001
Magnetic suspension system for attaching the digital multimeter to systems

Order Number: 0590 0001

$ 37.00
excl. tax
Cross-Seller Thermocouple Adapter 0590 0002
Adapter for type K thermocouples, measuring range -20 to +500°C

Order Number: 0590 0002

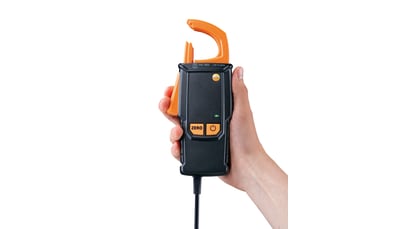

Cross-Seller Clamp meter adapter 0590 0003
Clamp meter adapter for non-contact current measurement, 400 A AC/DC, CAT IV 600 V

Order Number: 0590 0003

Cross-Seller Safety crocodile clips 0590 0008
Safety crocodile clips, 1 set, 10 A, CAT III 600 V

Order Number: 0590 0008

Cross-Seller Crocodile clips 0590 0009
Crocodile clips, 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0009

Cross-Seller 2 mm standard measuring cables (angled plug) 0590 0010
Standard measuring cables (angled plug), 1 set, tip Ø: 2 mm, CAT II 1000 V

Order Number: 0590 0010

Cross-Seller Measuring cable extensions (straight plug) 0590 0013
Measuring cable extensions (straight plug), 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0013

Cross-Seller Measuring cable extensions (angled plug) 0590 0014
Measuring cable extensions (angled plug), 1 set, 10 A, CAT IV 600 V / CAT III 1000 V

Order Number: 0590 0014

Transport Case

Cross-Seller Transport bag 0590 0016
Transport bag, dimensions: 240 x 180 x 100 mm

Order Number: 0590 0016

Applications

Ideal for measuring all important electrical parameters

  • Automatic detection and selection of measurement parameters, current measurement in the µA range, voltage range up to 1000 V, true root mean square (TRMS) measurement, low pass filter, operation via function keys, large illuminated display, temperature adapter

Overview of applications

  • Testing voltage supply in live wires, current measurement in the lower measuring range, testing voltage supply for frequency-controlled motors, measuring the ionization flow of heating systems, continuity tests on switching components, resistance measurement of sensors or motor windings, easy temperature checking
