Electrical Inspection Kit

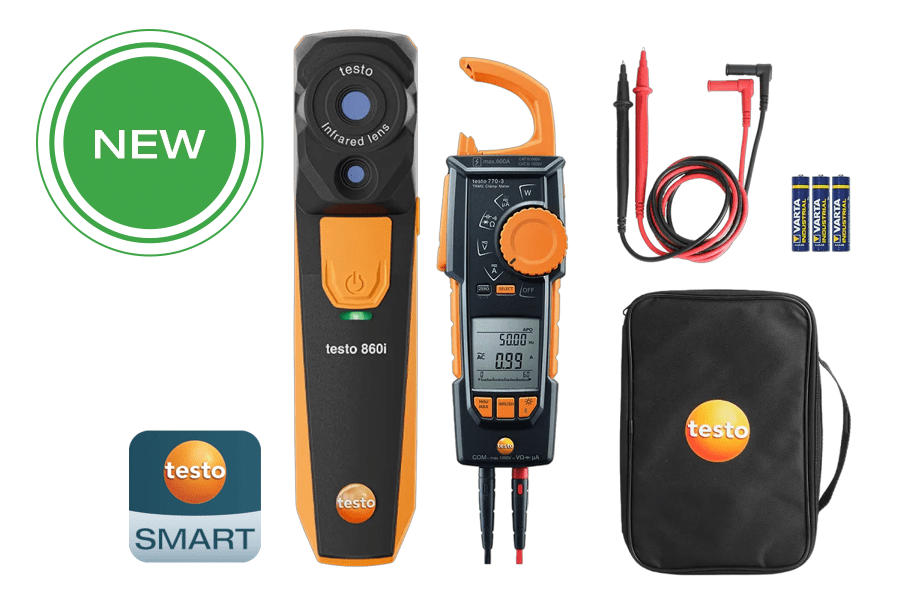

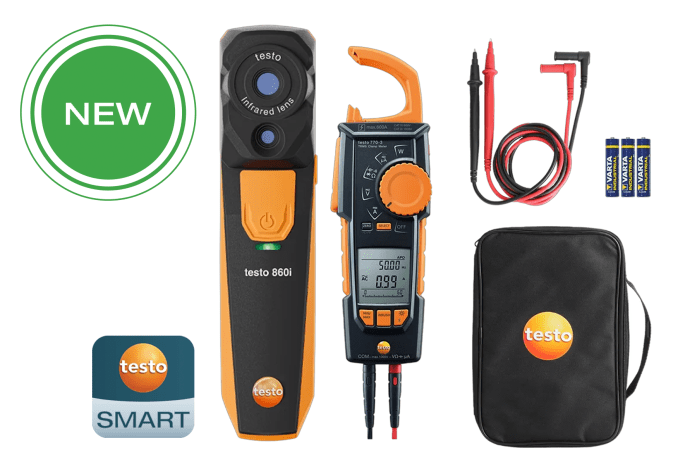

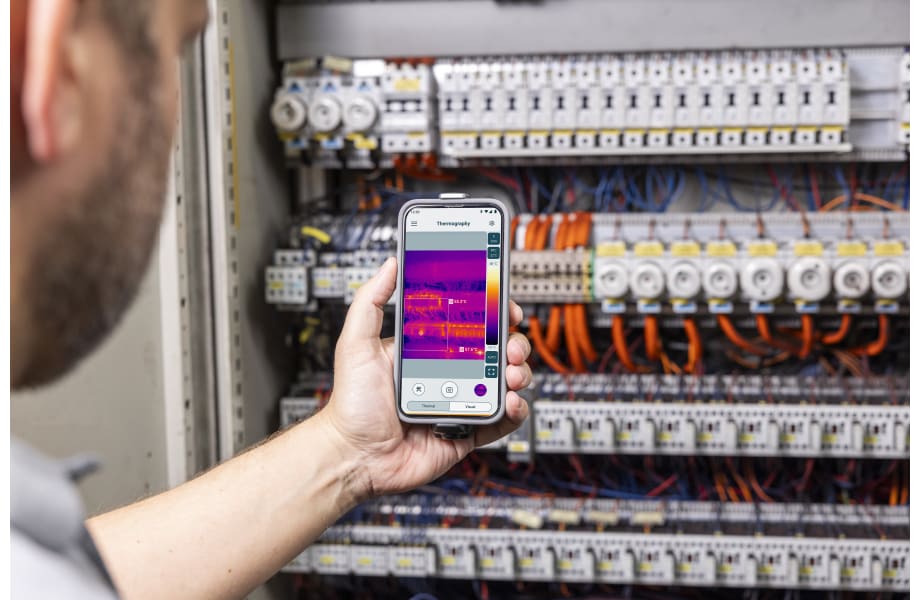

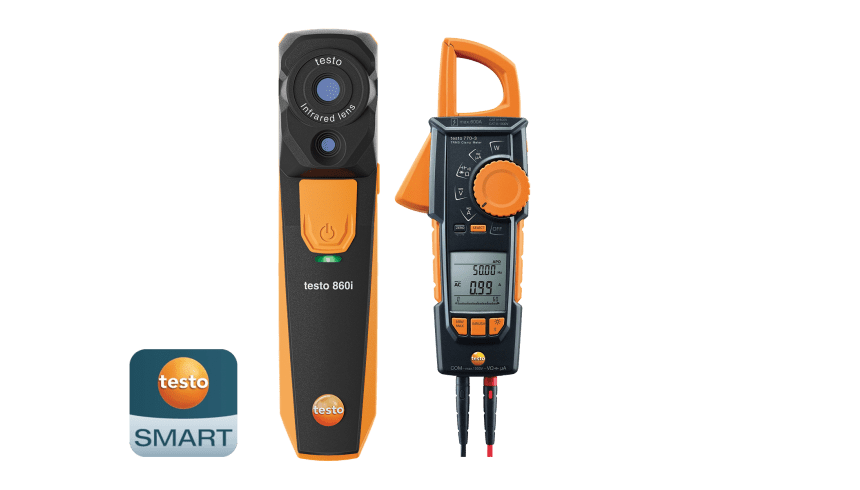

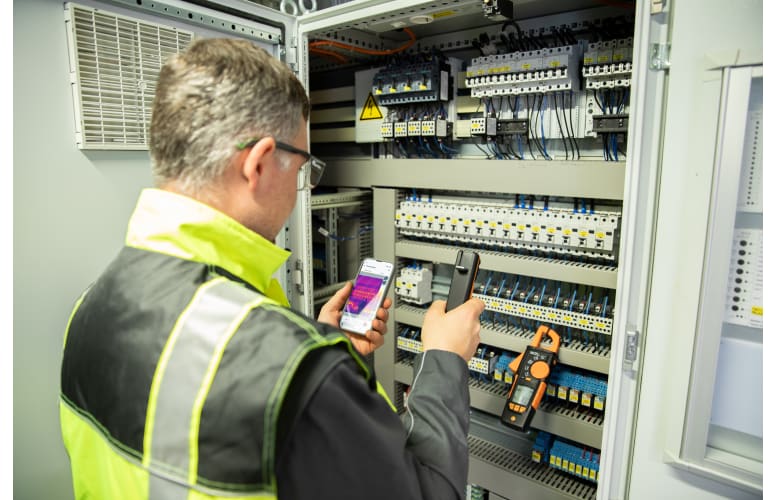

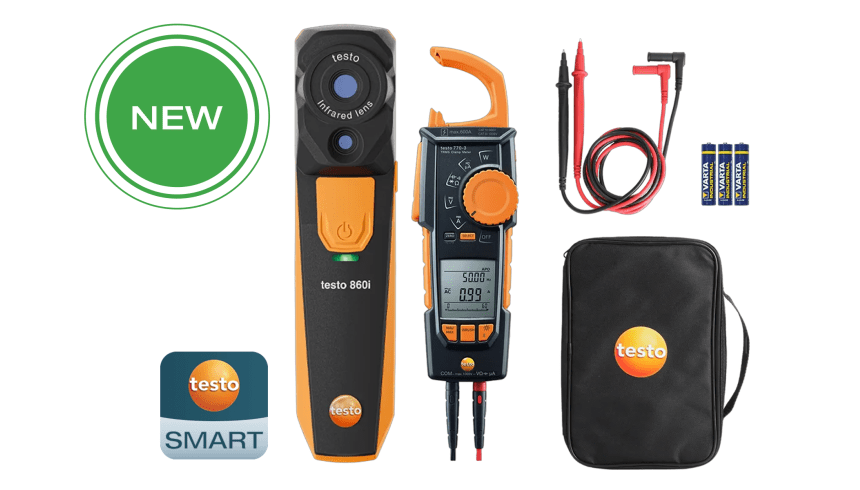

The Electrical Inspection Kit is a cutting-edge diagnostic tool that harnesses the complementary strengths of the testo 860i Wireless Thermal Imaging Camera and the testo 770-3 Clamp Meter. By integrating thermal imaging with advanced electrical measurements, this kit delivers a perfect approach to system diagnostics, ideal for Electrician, HVAC technicians, Facility Maintenance, and building inspectors.

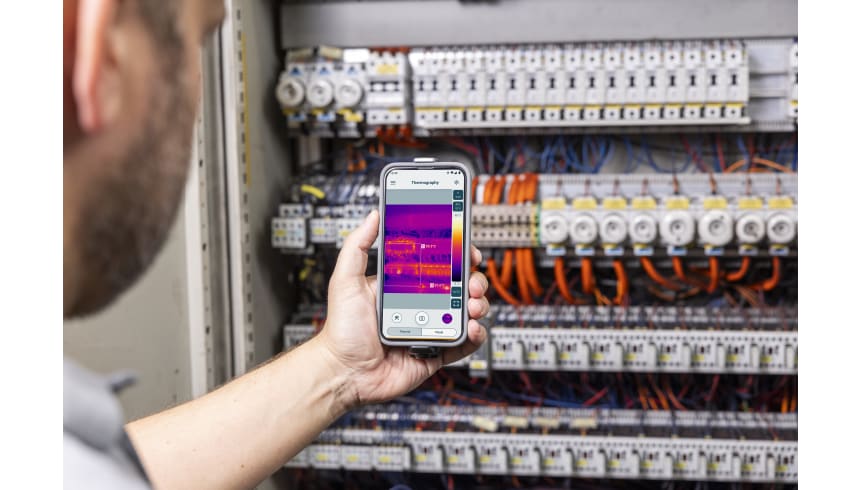

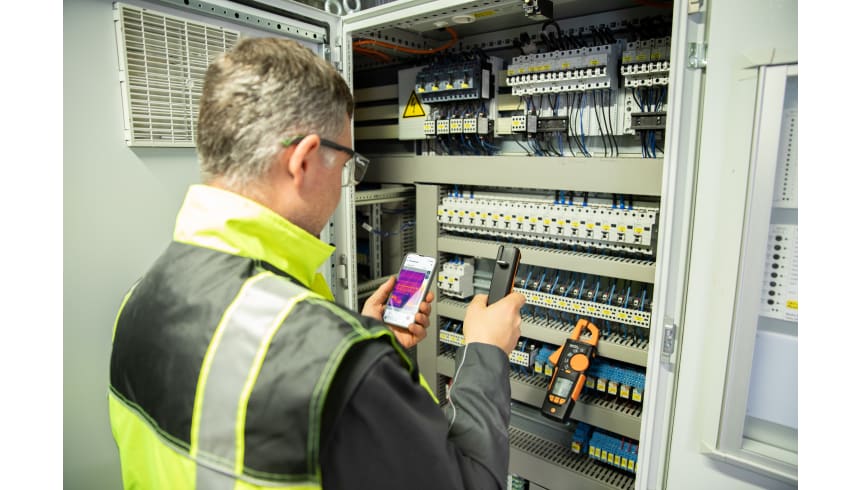

The testo 860i produces high-resolution thermal images (256 x 192 pixels) to pinpoint hotspots and measure Delta T of potential problems, while the testo 770-3 clamp meter delivers accurate measurements of current, voltage, and resistance. Their seamless connectivity via the testo Smart App enables real-time data synchronization, allowing professionals to quickly correlate thermal anomalies with electrical load. This enhances diagnostic precision and minimizes troubleshooting time, leading to more efficient evaluations.

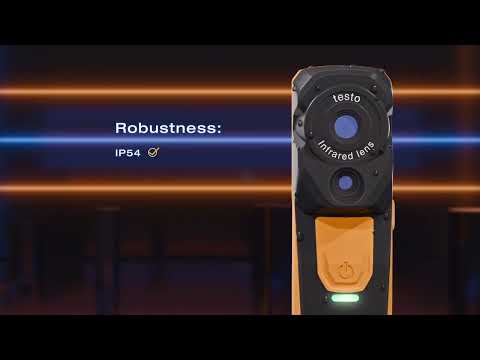

Built for field use, both instruments feature robust construction with IP54-rated protection and 1.5m drop resistance, ensuring reliable performance in demanding environments. The unified reporting and documentation capabilities of the testo Smart App further streamline workflows by simplifying the analysis, recording, and sharing of critical data on-site. Whether diagnosing electrical faults, assessing HVAC systems, or inspecting building structures, the testo 860i Electrical Kit provides a versatile, efficient, and dependable solution that maximizes the benefits of combined thermal and electrical analysis.

Protection class	IP54
System requirements	requires iOS 17 or newer; requires Android 14 or newer; requires mobile end device with Bluetooth 4.0

Field of view	48° x 36°
Focus	Fixed focus
Minimum focus distance	1 ft / 0.3 m
Image refresh rate	9 Hz
Infrared resolution	256 x 192 pixels
Thermal sensitivity	50 mk
Infrared image output
Spectral range	8 to 14 µm

Minimum focus distance	1 ft / 0.4 m
Image size	640 x 480 pixels

Color palettes	iron, rainbow, rainbow HC, cold-hot, blue-red, grey, inverted grey, sepia, Testo, iron HAT, humidity palette
Digital zoom	yes
Display option	IR image / real image
(in the testo Smart App)

Accuracy	5.4°F (±3 °C) or ±3 % of m.v. (at ambient temp. 14°F to 104°F (-10 to 40 °C) and scene temp. 32°F to 302°F (0 to +150 °C) or 212°F to 662°F(+100 to +350 °C)
Emissivity	0.01 to 1
Measuring range	-4 to +662 °F (-20 to +350 °C)
Reflected temperature	manual; (via testo Smart App)

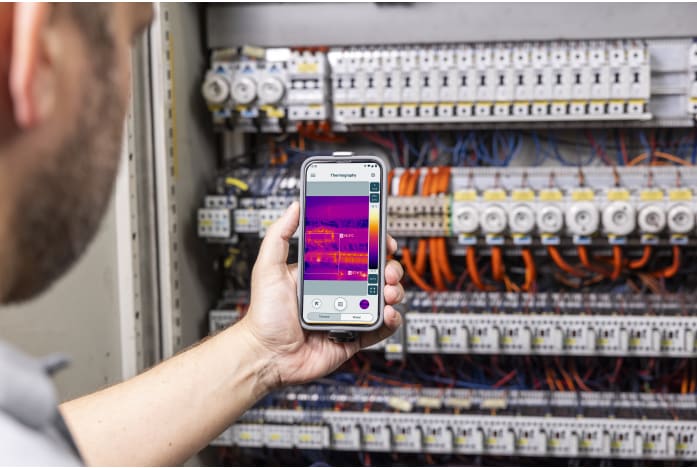

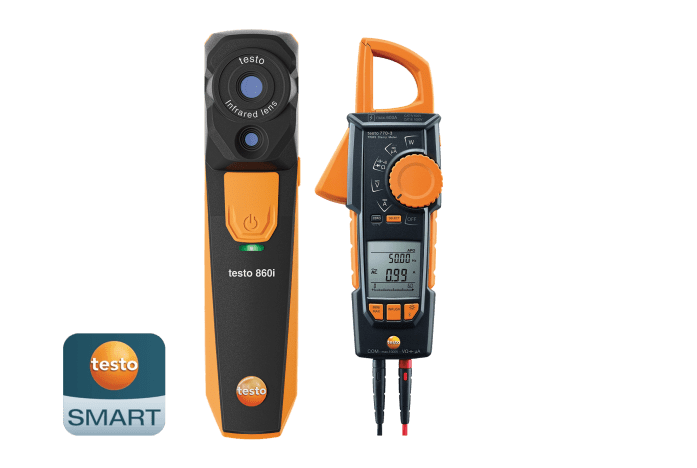

Electrical Inspection Kit - thermal imaging camera and clamp meter

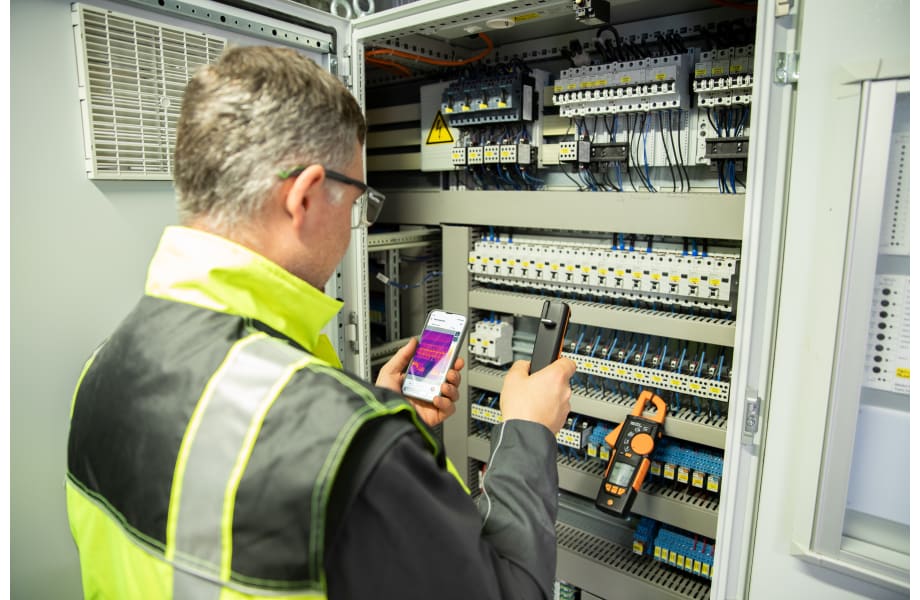

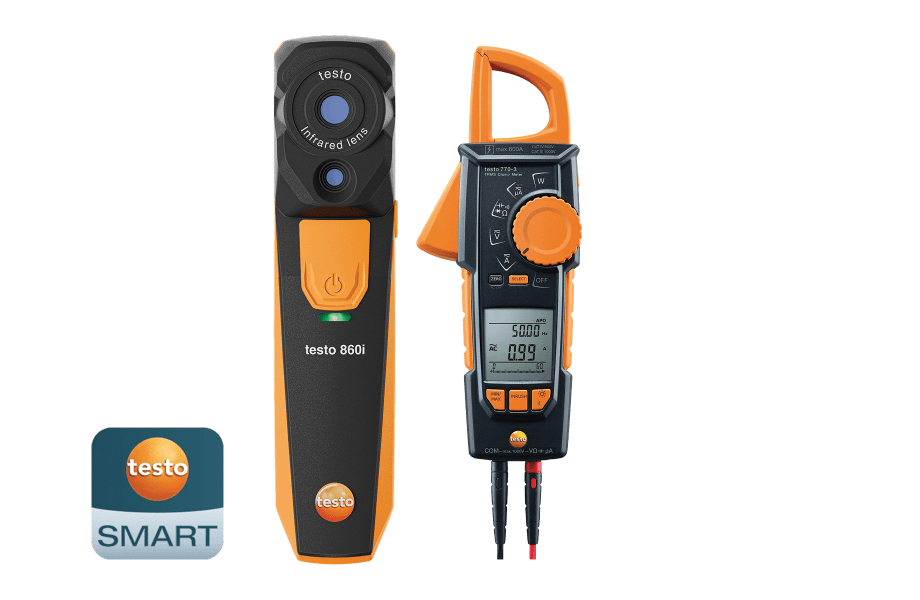

Electrical Inspection Kit - thermal imaging camera and clamp meter

General technical data

Infrared image output

Image output visual

Image presentation

Measurement

Measuring function

Imager equipment

Imager storage

Power supply

Ambient Condition

Physical specification

PC software

Temperature - Type K TC

DC voltage

AC voltage

DC current

AC current

Resistance

Capcitance

Frequency

Active Power

Reactive Power

Apparent Power

Direct current DC Voltage

Power Factor

General technical data

Instrument Measurement Functions

Air Probes

Surface probes

Thermocouples

Sets

Accessories

Transport Case

Analysis function	Hot/cold spots, Delta T, up to 10 selectable individual measuring points, area measurement (min./max. on area)
Electrical mode - manual	Input of current, voltage or power
Humidity mode - manual	yes
Humidity measurement with humidity measuring instrument	Automatic transfer of the optional testo 605i or testo 625 thermohygrometer readings via Bluetooth to the testo Smart App
Electrical measurement with clamp meter	Automatic reading transfer of the optional testo 770-3 clamp meter via Bluetooth to the testo Smart App
Application-specific measurement functions	DeltaHeat; DeltaCool; Humidity mode
(in the testo Smart App)

Full screen mode	yes
WLAN Connectivity	Communication with the testo Smart App; WIFI: IEEE 802.11a/n/ac*
Bluetooth	Peer-to-peer advertising for fast connection set-up*
Remote-controlled operation	Up to 32ft (10 m) from the mobile device
* An overview of the radio authorisations in the different countries can be found in the download section of the testo 860i product page in the "Quick Start Guide testo 860i" document.

File format image	.jpg; .csv; .bmt
Storage device	On a mobile device

Battery type	Integrated Li-ion rechargeable battery
Charging options	USB-C
Charging time	Approx. 90 min (15-min charge of an empty battery equals 30 min of operating time)

Air humidity	5 to 95 %RH, non-condensing
Vibration	IEC 60068-2-6
Impact resistance test	4.921 ft. / 1.5 m
Storage temperature	-4 to +158 °F / -20 to +70 °C
Operating temperature	14 to +122 °F / -10 to +50 °C

Tripod mounting	1/4" - 20UNC
Mobile device attachment	Clip span: min. 134 mm, max. 190 mm and device depth up to max. 12 mm
Weight	7 oz. / 195 g
Dimensions	6 x 2 x 1 in. / 165 x 45 x 38 mm

Measuring range	-4.0° to 932.0 °F / -20 to +500 °C
Accuracy	±1.8 °F (32.0° to 212.0 °F) / ±1 °C (0 to +100 °C)
Resolution	0.2 °F / 0.2 °C

Measuring range	1.0 to 1000.0 V
Resolution	max. 1 mV
Accuracy	± (0.8 % of mv + 3 Digit)

Measuring range	1.0 mV to 1000.0 V
Resolution	max. 1 mV
Accuracy	± (1 % of mv + 3 Digit)

Measuring range	0.01 to 600.0 A (clamp) 0.1 to 600.0 μA (measuring cables)
Resolution	0.1 (clamp) 0.1 (measuring cables)
Accuracy	± (2 % of mv + 5 Digit) (measuring cables) ± (2 % of mv + 5 Digit) (clamp)

System requirements	Windows® 10; Windows® 11
(testo IRSoft)

Operating humidity	0 to 80.0 %rH
Weight	13.33 oz. / 378 g
Dimensions	9.8 x 3.8 x 1.7 in. / 249 x 96 x 43 mm
Operating temperature	14.0° to 122.0 °F / -10 to +50 °C
Connectable probes	1 x temperature probe (adapter required for type K thermocouples)
Product colour	Black
System requirements	requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
Standards	EN 61326-1; EN 61010-2-032; EN 61140
Battery type	3 x AAA
Display size	2 lines
Display type	LCD
Interface	2 measuring jacks
Storage temperature	5.0° to 140.0 °F / -15 to +60 °C
Overvoltage Category	CAT IV 600 V; CAT III 1000 V
Authorizations	CSA; CE
Internal_resistance	11 MOhm (AC / DC)

Resolution	max. 0.01 Ohm
Measuring range	0.10 to 60.0 MOhm
Accuracy	± (1.5 % of mv + 3 Digit)

Resolution	max. 0.01 nF
Measuring range	0.001 μF to 60000.00 μF
Accuracy	± (1.5 % of mv + 5 Digit)

Resolution	max. 0.1 Hz
Measuring range	0.00 Hz to -10 kHz
Accuracy	± (1 % of mv + 1 Digit)

Measuring range	0.1 W to 600 kW
Accuracy	± (5 % of mv + 5 Digit)
Resolution	0.1 W

Measuring range	0.1 to 600.0 kvar
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.1 var

Measuring range	0.1 VA to 600.0 kVA
Accuracy	± 1 Digit
Resolution	0.1 VA

Measuring range	0.1 W to 600.0 kW
Accuracy	± 1 Digit
Resolution	max. 0.1 W

Measuring range	-1.00 to +1.00
Accuracy	± (10 % of mv + 5 Digit)
Resolution	0.01

Diode test	yes
Continuity testing	yes
Display ligthing	yes
Hold	yes
MinMax	yes
Power Measurement	yes
Temperature measurement with adapter	yes
True RMS	yes
Inrush current measurement	yes
Bluetooth	yes
Display (counts)	6,000
Autom. measurement parameter detection	yes
μA current measuring range	yes
