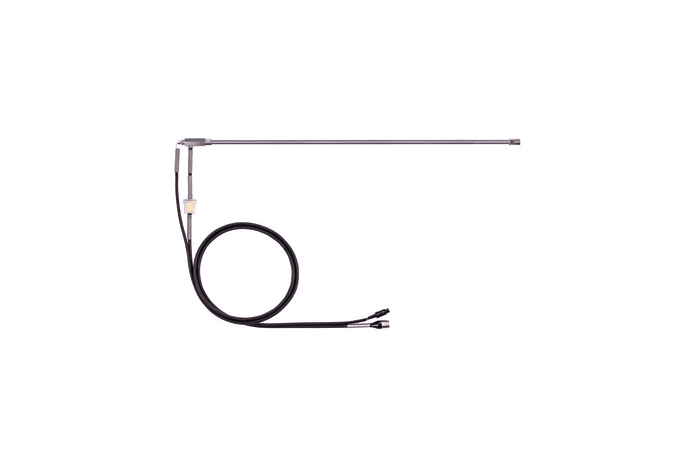

Industrial probe kit 2192°F (1200°C)

0600-7610
Ideal for the extractive sampling of flue gas at high flue gas temperatures. The Industrial Probe Kit comprises a handle, a 39" (1 meter) probe shaft,  up to 2,192°F (1,200 °C) flue gas temperature, a 13 foot (4 m) long gas sampling hose, including inline filter and a thermocouple type K.
  • Very easy to handle
  • Can be used in combination with testo 340 and testo 350
  • Unheated sampling tube - 39" (1 Meter) long, 2,192°F (1 200 °C) can be extended up to max. 9 feet 10 inches (3 m) long using optional extension tubes
  • Additional inline filter to protect the gas sampling hose from contamination
The industrial probe set can be used in combination with the testo 340 and testo 350 Emissions Analyzers. It is suitable for the extractive sampling of flue gas analyzed at high flue gas temperatures of up to 2,192 °F (1,200 °C) and for applications involving large flue gas pipe diameters.

The unheated sampling tube can be extended up to 9 feet 10 inches (3 m) using optional extension tubes. The optional thermocouple 7 feet 2 inches (2.2m) can be added as an accessory to enable you to carry out simultaneous temperature measurement with 2 extension tubes. An optional preliminary filter makes it possible to measure flue gas with a high dust load.

Applications

You can use the industrial probe set 2,192 °F (1,200 °C) in conjunction with the appropriate measuring instrument — for the following applications:
  • Measuring the furnace atmosphere
  • Emissions measurement for efficiency monitoring / commissioning industrial plants
  • Emissions measurements for the prior checking of limit values
  • Emissions measurements for checking Pollution Control cleaning systems
  • Emissions measurement to monitor for EPA or State permits

General technical data

Weight
41.98 oz. / 1190 g
Length probe shaft
41.457 in. / 1,053 mm
Housing
Metal housing
Cable length
13.123 ft. / 4 m
Diameter probe shaft
0.472 in. / 12 mm
Temperature maximum
2,192 °F / 1,200 °C
Product colour
Black; silver
  • Steel handle
  • 39 Inch (1 Meter) probe shaft up to 2,192 °F (1,200 °C) flue gas temperature
  • 13 Foot (4m) gas sampling hose, including inline filter
  • Thermocouple type K
You can use other accessories to put together an application-specific sampling solution.

testo 340 NO2 set

: 400563 3343

testo 340 - Engine Kit (for tuning and combustion maintenance)

testo 340

: 0632 3340

testo 340 - Combustion Analyzer for Commercial and Industrial Applications

testo 350

: 0632 3510

testo 350 - Portable emission analyzer

testo 350

: 400563 3511

testo 350 - Process Kit

Accessories

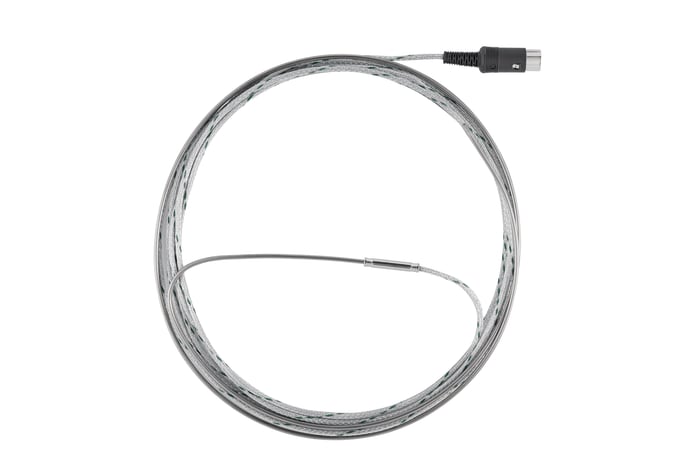

Thermoelement

: 0600 7616

Industrial probe preliminary filter

Prevents the probe shaft and sampling hose from becoming clogged with dust

$ 1,211.00
Transport case for probes

: 0516 7600

Transport bag for probes

For transporting probes with an overall length of > 335 mm

$ 343.00
Spare particle filter

: 0554 3371

Spare particle filter for flue gas analyzer (10/pkg) - Spare particle filter for flue gas analyzer

Spare particle filter for flue gas analyzer (10/pkg)

$ 68.00
Hose extension

: 0554 1202

Hose extension, 9 ft. - Probe-instrument extension hose (length 2.8 m)

Hose extension, 9 ft.
NOTE:
testo 340: max two extensions, plus standard hose = 25 ft. in length
testo 350: max five extensions, plus standard hose = 54 ft. in length

$ 305.00
