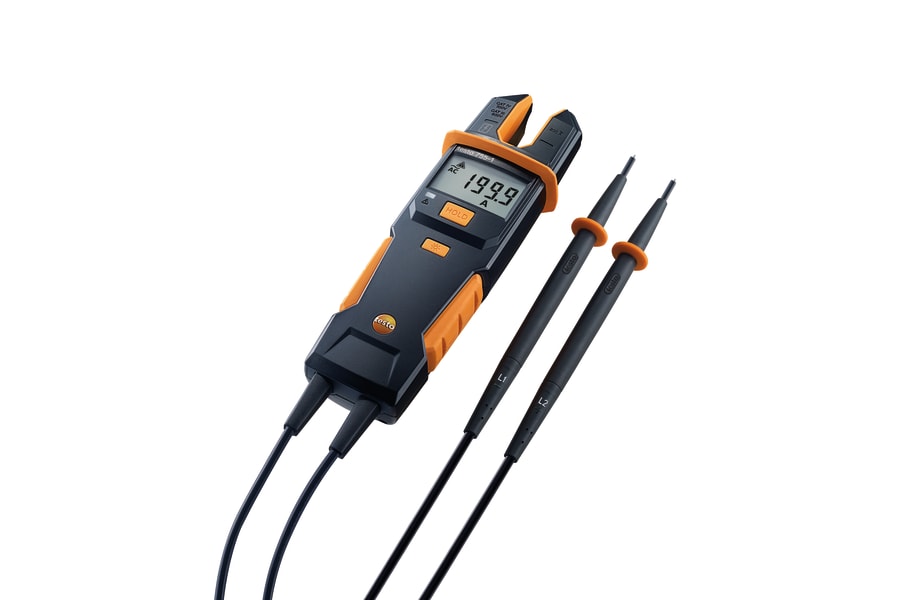

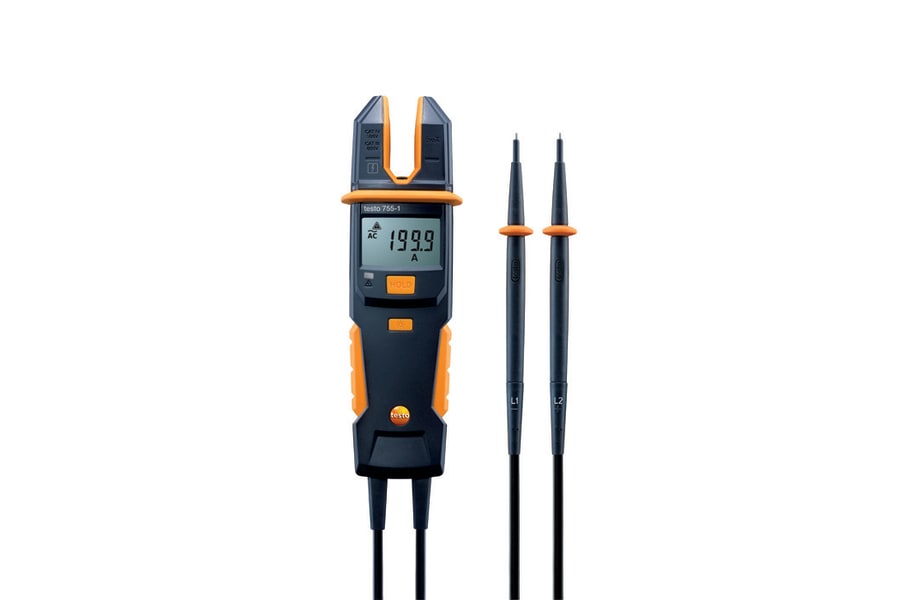

testo 755-1 - Current / Voltage Meter with 200 A AC, 600 V AC/DC, and Continuity

testo 755-1
testo 755-1
testo 755-1 delivery
testo 755-1
testo 755-1
testo 755-1
testo 755-1
testo 755-1
testo 755-1

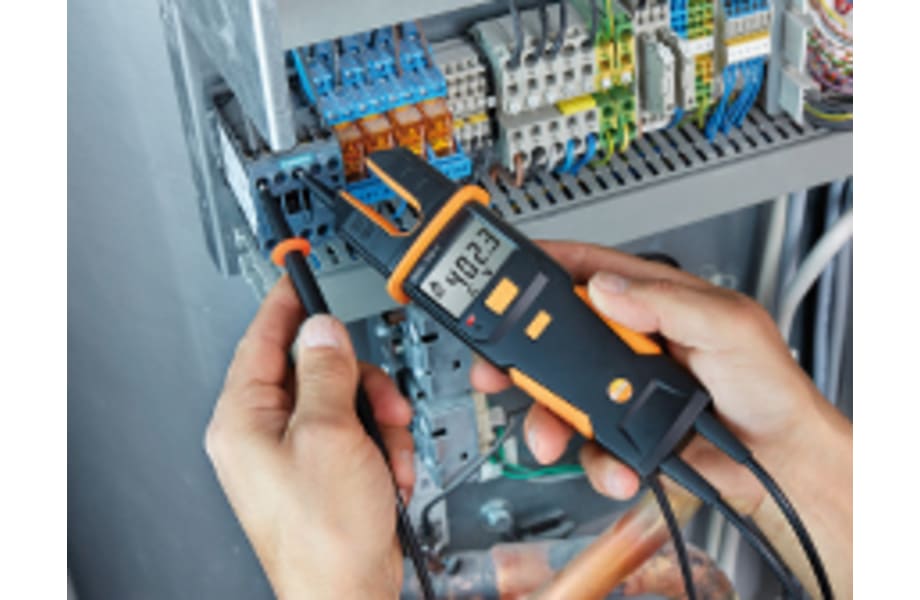

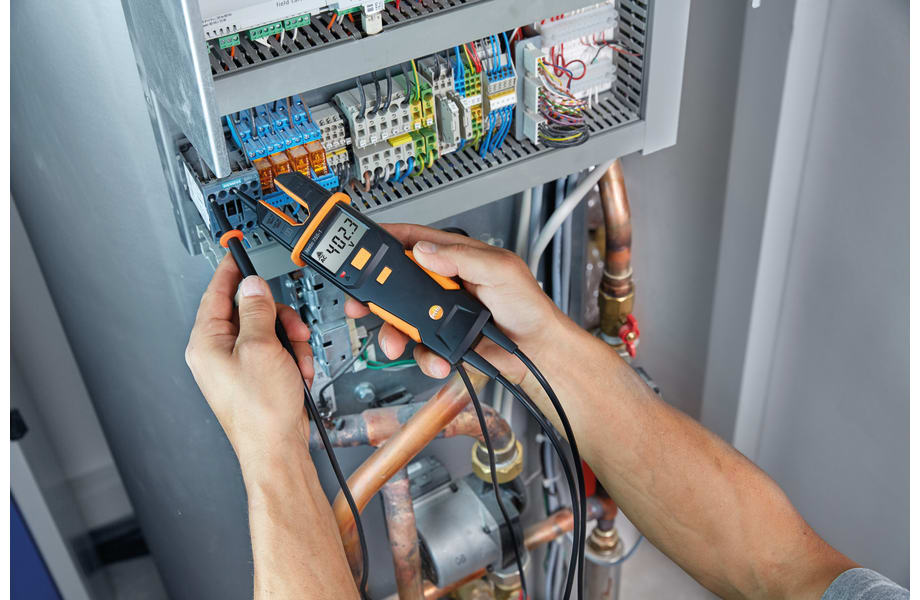

The testo 755 current/voltage testers are fast and easy to use, especially when you are testing many circuits. The convenient open-jaw current tester automatically turns on when voltage exceeds 6V. It then auto-selects the correct parameters and range for your test. These rugged testers are suitable for virtually all your daily electrical measuring tasks.
*Free testo 745 NCV with testo 755 purchase in the testo Web Shop!*
  • Meter automatically detects testing in-process and selects correct meter configuration which saves time and optimizes accuracy
  • Polarity detection for DC circuits
  • 3-phase sequence check with motor rotation indication
  • Single lead voltage test with audible indication

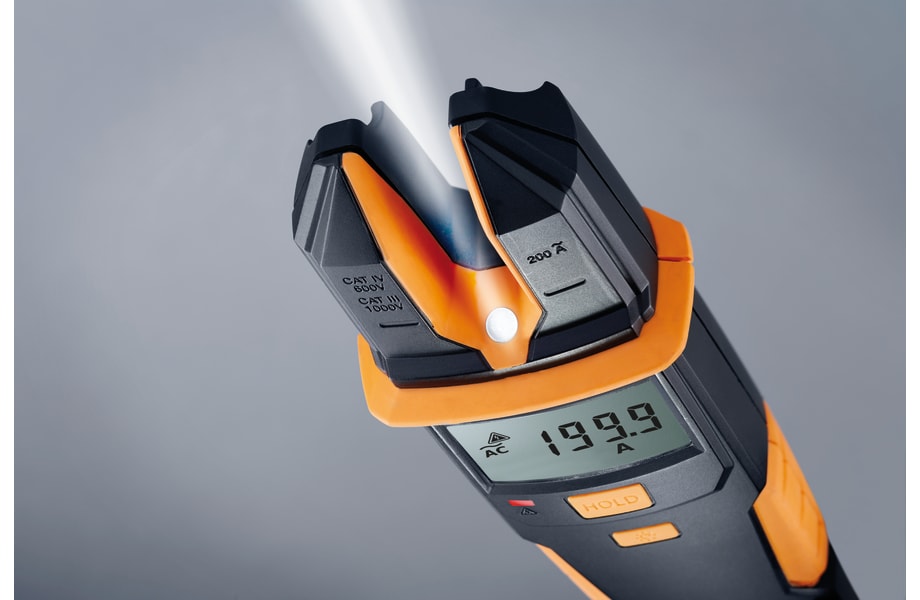

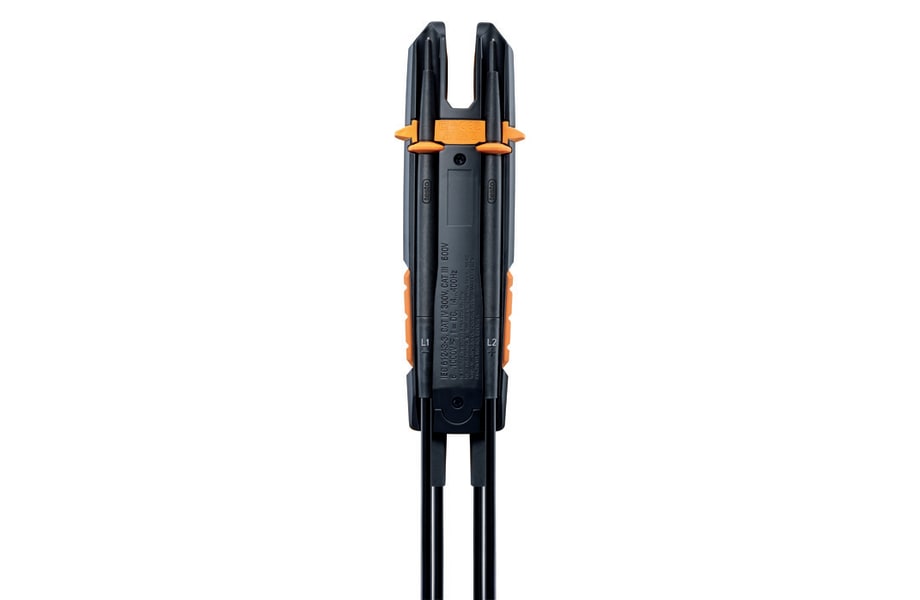

The instruments include important functions such as current, voltage, resistance & continuity. The integrated flashlight enables users to work in poorly lit areas. The overall design is for convenient testing including interchangable measuring tips which can be easily updated and maintained. A convenient lead holder is integrated into the housing for safe and easy storage.

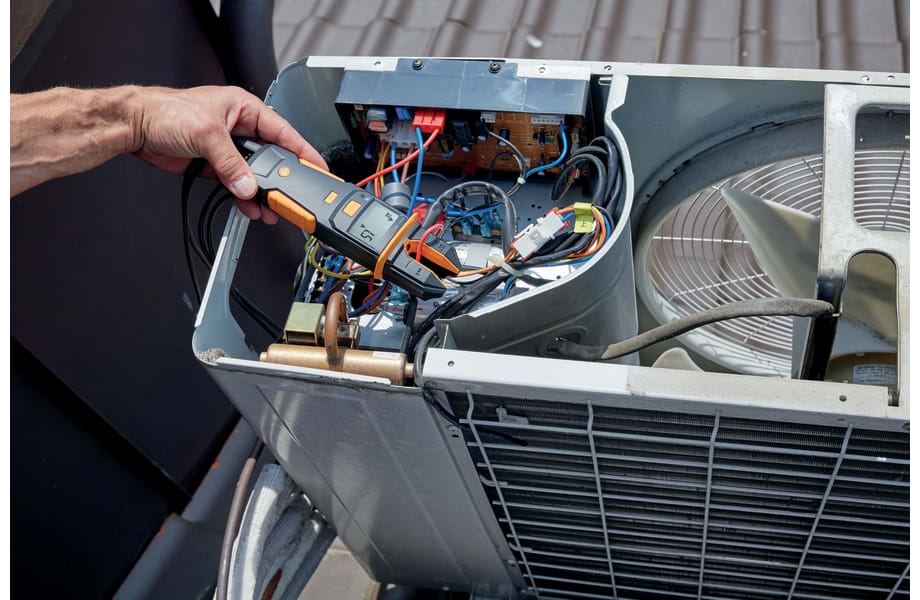

Testo’s history of efficiency, innovation, and quality now extends into the entire electrical lineup. Once again, Testo brings high value, feature-packed products to the HVAC contractor market.

DC voltage

Measuring range
6 to 600 V
Resolution
0.1 V
Accuracy
50 to 600.0 V: ± (1.5 % of mv + 3 Digits)
6 to 49.9 V: ± (1.5 % of mv + 5 Digits)

AC voltage

Measuring range
6 to 600 V
Resolution
0.1 V
Accuracy
50 to 600.0 V: ± (1.5 % of mv + 3 Digits)
6 to 49.9 V: ± (1.5 % of mv + 5 Digits)

AC current

Measuring range
0.1 to 200 A
Resolution
0.1 A
Accuracy
± (3 % of mv + 3 Digits)

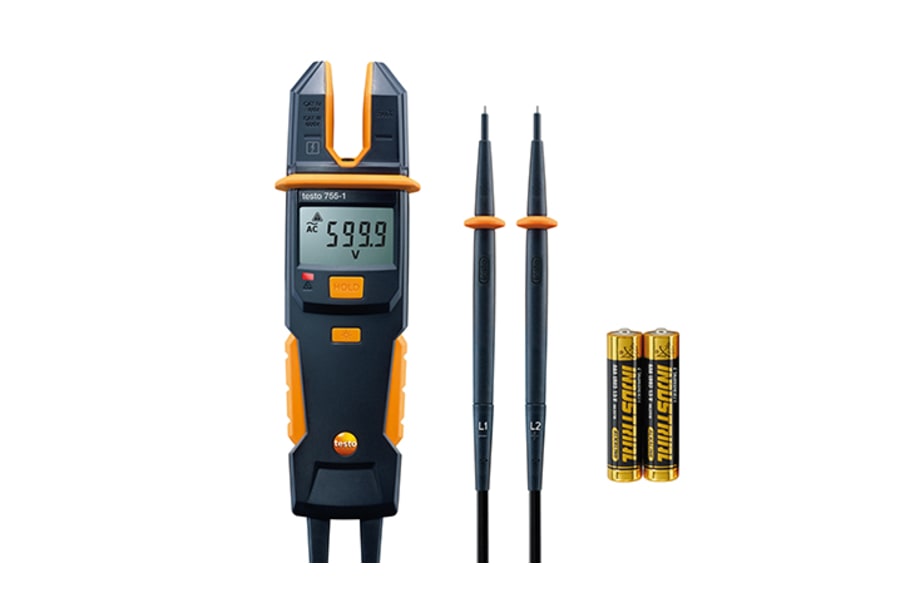

testo 755-1 current / voltage meter 200 A AC, 600 V AC/DC, with built-in flashlight includes batteries and measuring tips

Ideal for voltage testing and current measurement

  • Automatic measurement parameter detection, automatic switch-on, exchangeable measuring tips, integrated torch for measuring point illumination

Overview of applications

  • Test electrical circuits or systems for voltage or de-energization (according to DIN EN 61243-3:2010)
  • Current consumption measurement

Accessories

Replaceable Probes 0590 0015

: 0590 0015

Replacement measuring tips - 1 set

CAT IV 600 V / CAT III 1000 V measurement category

$ 29.00
Safety crocodile clips 0590 0008

: 0590 0008

Safety crocodile clips - 1 set

CAT III 600 V measurement category

$ 42.00

Transport Case

Transport bag 0590 0017

: 0590 0017

Transport bag

Outside: impact-resistant transport bag with zip fastener

$ 39.95
