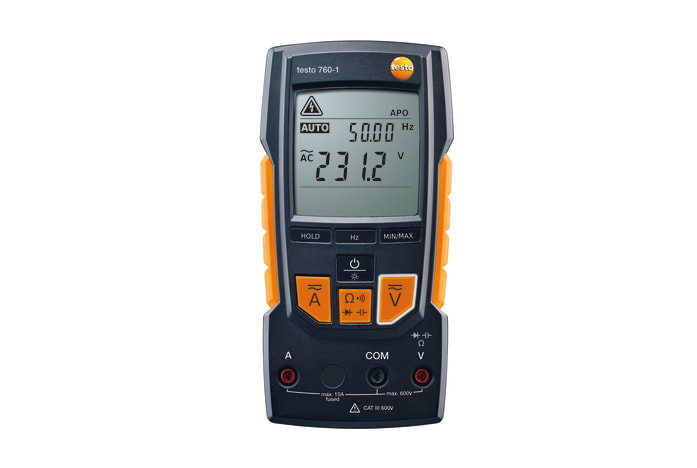

testo 760-1 - Digital multimeter

0590 7601
$ 131.75
1
  • Auto-test setup based upon lead connection prevents blown fuses in the meter
  • Meter prevents switching from V to A, or A to V, if the leads are not in the proper socket
  • Meter automatically detects testing in-process, and selects the correct meter configuration, saving time and optimizing accuracy
  • 3 buttons that illuminate for easy and clear selection of test functions
    • Testo’s exclusive auto-test setup enables the user to simply turn the unit on, connect the leads, and begin measuring.  The testo 760-1 digital multimeter detects the lead connection, and prevents switching from V to A, or A to V, if the leads are not in the proper socket.  This prevents accidentally blowing the meter’s fuse because of incorrect connections.
    This multimeter's function and range settings are always correct, because its measurement parameters are detected and set automatically.  Three easy to read buttons replace the traditional rotary switch for selecting manual test functions.

    Additional benefits:

    • APO (Auto Power Off) saves battery life
    • Rugged meter with overmold housing
    • Large, backlit, dual readout display with analog bar graph is easy to read

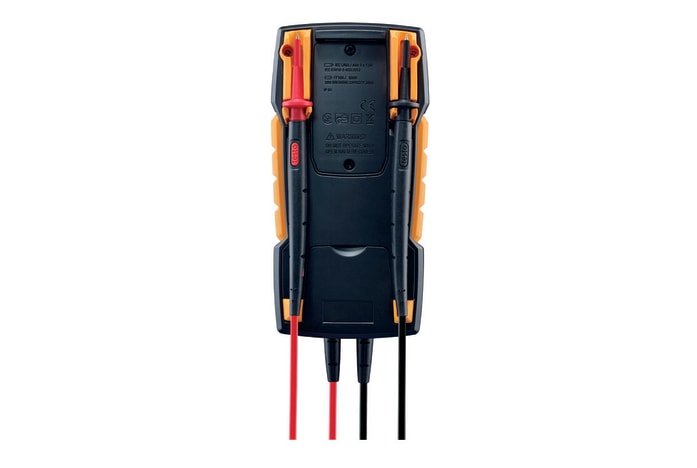

    • Lead holder conveniently molded into housing for easy storage

    Testo’s history of efficiency, innovation, and quality now extends into the entire electrical lineup.  Once again, Testo brings high value, feature-packed products to the HVAC contractor market.

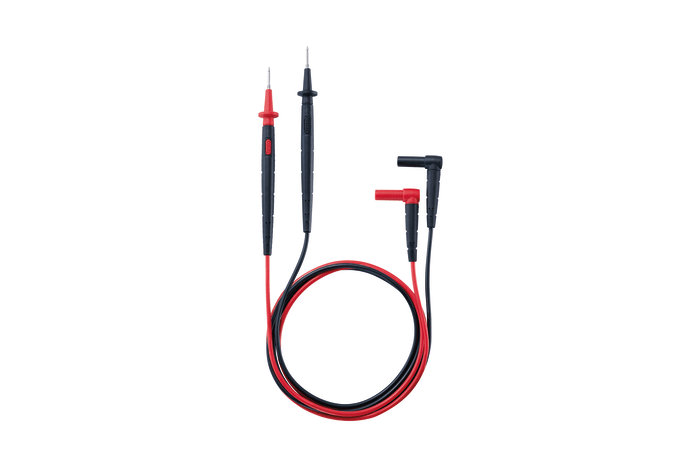

    testo 760-1 digital multimeter 600 V, including test leads, 3 AAA batteries, instruction manual, quick start guide, and certificate of conformity

    DC voltage

    Measuring range
    0.1 to 600 V
    Resolution
    max. 0.1 mV
    Accuracy
    ± (0.8 % of mv + 3 Digit)

    AC voltage

    Measuring range
    0.1 mV to 600 V
    Resolution
    max. 0.1 mV
    Accuracy
    ± (1.0 % of mv + 3 Digit)

    DC current

    Measuring range
    0.1 mA to 10 A
    Resolution
    max. 0.1
    Accuracy
    ± (1.5 % of mv + 5 Digit)

    Ideal for measuring all important electrical parameters

    • Automatic detection and selection of measurement parameters, operation via function keys, large illuminated display

    Overview of applications

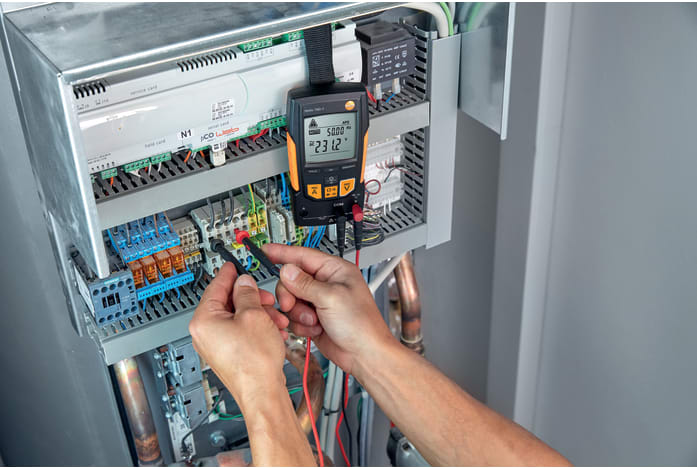

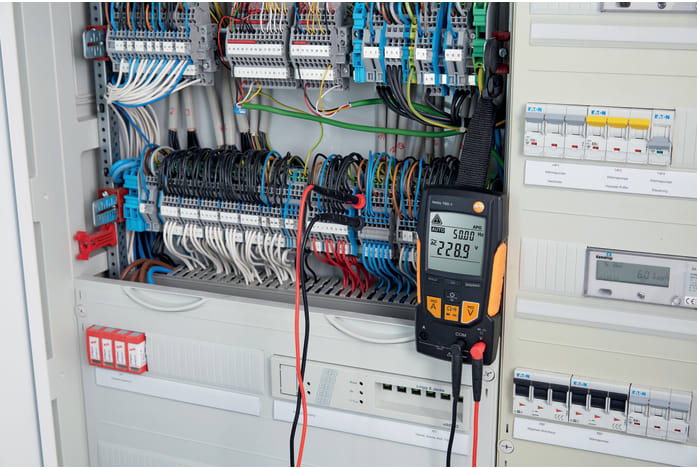

    • Testing voltage supply in live wires, current measurement in the lower measuring range, continuity tests on switching components, resistance measurement of sensors or motor windings
