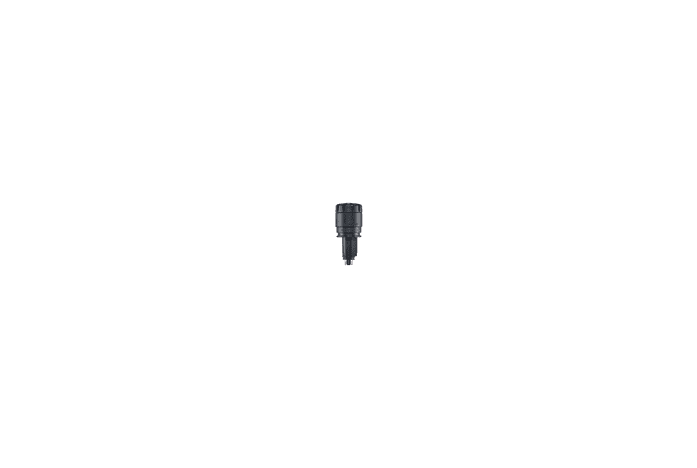

CO probe head
0632 1270CO probe head
0632 1270Intuitive: determine CO concentrations in indoor areas, e.g. in boiler rooms
Precise: long-term stable electrochemical sensor
Convenient: probe head is easy to attach to the universal handle with Bluetooth or cable (available to order separately)
Intelligent calibration concept: only send in the probe head for calibration
More applications, less equipment: if you already own one of our probes with a universal handle, you can easily expand your portfolio of probes with the CO probe head.
CO probe head including calibration protocol.
Ambient CO
| Measuring range | 0 to 100 ppm 100.1 to 500 ppm |
|---|---|
| Accuracy | ±10 % of mv (100.1 to 500 ppm) ±5 ppm (30.1 to 100 ppm) ±3 ppm (0 to 30 ppm) |
| Resolution | 0.1 ppm |
General technical data
| Storage temperature | 23° to 122 °F / -5 to +50 °C (recommended: 50° to 86 °F) / (recommended: +10 to +30 °C) |
|---|---|
| Weight | 0.9 oz. / 25 g |
| Dimensions | 2.8 x 1.2 x 1.2 in. / 70 x 30 x 30 mm |
| Operating temperature | 23° to 122 °F / -5 to +50 °C |
| Length probe shaft | 1.181 in. / 30 mm |
| Probe head diameter | 1.181 in. / 30 mm |
| Product colour | Black |
Accessories
- Testo 440 Data Sheet(pdf, 5.95 MB)
