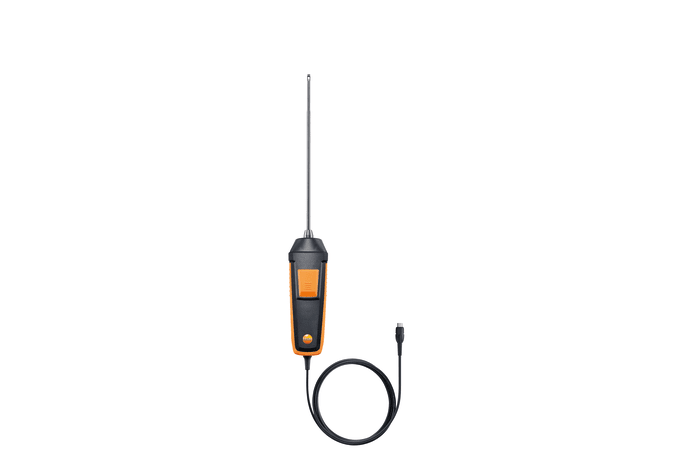

Robust, fast-action air probe (Pt100)

Ideal for measurements in laboratories, in industry and also in food quality control. The air probe with Pt100 temperature sensor, which features long-term stability, is ideal for these applications:

Fast, high-precision measurement of the air temperature
Calibrating stationary sensors
Monitoring production processes / production facilities
Reference measurements in the calibration laboratory

Particularly useful: Store individual readings directly in the measuring instrument itself (please order separately) by pressing the button on the probe. The measurement assistant in the measuring instrument makes for intuitive operation and error-free measurement. Reading trends are reliably recorded thanks to the convenient input of measurement time and measuring cycle.

Intelligent calibration concept

With the digital temperature probe you benefit from exceptionally accurate measurement results, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration – so the measuring instrument remains in continuous use. Thanks to the adjustment function in the measuring instrument, the calibration results can be stored at up to six measuring points. This ensures a zero-error display.

Měřicí rozsah	-100 do +400 °C
Přesnost	±(0,15 °C + 0,2 % z mv) (-100 do -0,01 °C) ±(0,5 °C + 0,5 % z mv) (+350,01 do +400 °C) ±(0,15 °C + 0,05 % z mv) (0 do +100 °C) ±(0,15 °C + 0,2 % z mv) (+100,01 do +350 °C)
Rozlišení	0,01 °C
Doba odezvy	t₉₀ <45 s

Měřicí rozsah

-100 do +400 °C

Přesnost

±(0,15 °C + 0,2 % z mv) (-100 do -0,01 °C)

±(0,5 °C + 0,5 % z mv) (+350,01 do +400 °C)

±(0,15 °C + 0,05 % z mv) (0 do +100 °C)

±(0,15 °C + 0,2 % z mv) (+100,01 do +350 °C)

Rozlišení

0,01 °C

Doba odezvy

t₉₀ <45 s

Skladovací teplota	-20 do +60 °C
Váha	182 g
Rozměry	360 x 50 x 40 mm (DxŠxV)
Provozní teplota	-5 do +50 °C
Průměr sondy	4 mm
Průměr špičky sondy	4 mm
Délka kabelu	1,4 m
Pouzdro	Plastický
Délka trubice sondy	200 mm
Barva produktu	černá/oranžová

Skladovací teplota

-20 do +60 °C

Váha

182 g

Rozměry

360 x 50 x 40 mm (DxŠxV)

Provozní teplota

-5 do +50 °C

Průměr sondy

4 mm

Průměr špičky sondy

4 mm

Délka kabelu

1,4 m

Pouzdro

Plastický

Délka trubice sondy

200 mm

Barva produktu

černá/oranžová

Robust, fast-action air probe (digital) - with Pt100 temperature sensor

Robust, fast-action air probe (digital) - with Pt100 temperature sensor

Intelligent calibration concept

Pt100
