testo 835-T1 - Infrared thermometer

0560 8351
AED 1.153
  • Reliable IR measurement up to 600 °C
  • IR measurements from a safe distance
  • Memory for up to 200 readings; easy analysis with free-to-download software
  • 4-point-laser and 50:1 optics for precise measurements over greater distances
  • The practical infrared thermometer testo 835-T1 offers maximum safety and precision when measuring the temperature of smaller objects from a medium distance.

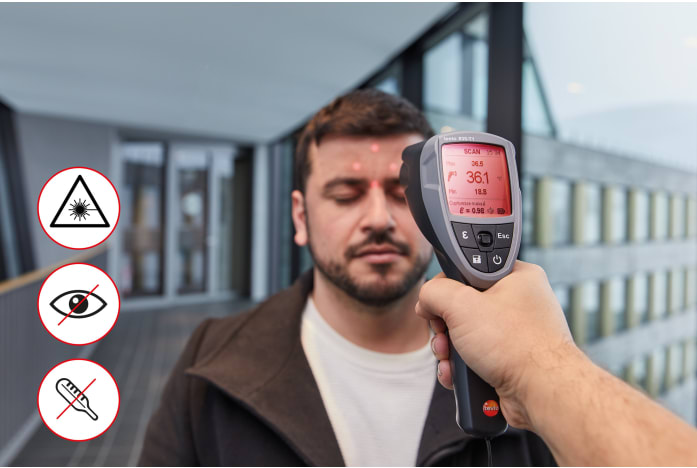

    Get started in the field of intelligent infrared measuring technology. The practical infrared thermometer testo 835-T1 offers maximum safety and precision when measuring the temperature of smaller objects from a medium distance, e.g. monitoring wall temperature, troubleshooting in heating and air conditioning systems, or the quality control of industrially manufactured products.

    • The 4-point laser clearly indicates the measuring area and prevents incorrect measurements
    • The 50:1 optics allow you to carry out measurements from a long distance and still obtain excellent results (distance 5 m = 10 cm measuring spot)
    • The integrated degree of emission table enables you to select the correct degree of emission of the measured surface
    • The backlit display allows you to use your infrared thermometer in all lighting conditions

    The testo 835-T1 also allows you to carry out contact temperature measurements. The thermometer is equipped with a connecting point for a wide range of optional temperature sensors. The temperature sensor can also be used to automatically measure the degree of emission of a particular surface. This makes it easier to carry out subsequent infrared measurements.

    There is also a wide range of optional accessories - including a tripod and a robust carry case – that allow you to customize your testo 835-T1 infrared thermometer to suit your needs.


    For easy analysis and easy use

    The testo 835-T1 comes with an easy-to-follow menu, self-explanatory icons and a user-friendly joystick. Your infrared thermometer can be used to create different measuring sites or save up to 200 readings while additional features including min/max values, adjustable thresholds and visual and acoustic alarms which are triggered when thresholds have been exceeded make work more efficient and life easier. The free-to-download “EasyClimate” software provides you with a quick and convenient means of analyzing your measuring data.

    testo 835-T1 high temperature infrared thermometer, 4-point laser marking, measuring data administration, PC software, batteries, calibration protocol.

    Temperature - TC Type K (NiCr-Ni)

    Measuring range
    -50 to +600 °C
    Accuracy
    ±(0.5 °C + 0.5 % of mv)
    Resolution
    0.1 °C

    Temperature - Infrared

    Measuring range
    -30 to +600 °C
    Accuracy
    ±2.5 °C (-30.0 to -20.1 °C)
    ±1.0 °C (0.0 to +99.9 °C)
    ±1 % of mv (Remaining Range)
    ±1.5 °C (-20.0 to -0.1 °C)
    Infrared resolution
    0.1 °C

    General technical data

    Weight
    514 g
    Dimensions
    193 x 166 x 63 mm
    Operating temperature
    -20 to +50 °C
    Product-/housing material
    ABS + PC
    Emissivity table
    20 values
    Laser spot
    on / off
    Standards
    EN 61326-1:2006
    Alarm function
    audible; Optical
    Auto-off backlight
    30 s*
    Auto-off instrument
    120 s*
    Battery type
    3 batteries type AA (or USB operating with PC-Software)
    Battery life
    25 h (typical 25°C without laser and backlight) 10 h (typical 25°C without backlight)
    Display type
    Dot Matrix
    Memory
    200 measuring values
    Storage temperature
    -30 to +50 °C
    *disabled for continuous measurement and USB connection

    Air probes

    Food probes

    Surface probes

  • Surface probes
    Spare meas. head for pipe wrap probe, TC Type K
    Spare measuring head for pipe wrap probes (TC type K) - Measuring range: -60 to +130°C
      :
      0602 0092
      AED 269
    • Surface probes
      Fast-reaction paddle surface probe
      Fast-reaction paddle surface probe (TC type K) - Measuring range: - 0 to +300°C
        :
        0602 0193
        AED 672
      • Surface probes
        Fast-action surface probe with sprung thermocouple strip
        Fast-action surface probe (TC type K) – measuring range -60 to +300 °C, short-term up to +500 °C
          :
          0602 0393
          AED 649
        • Surface probes
          Waterproof surface temperature probe with a small measuring head (TC type K) – measuring range: -60 °C to +1000 °C
            :
            0602 0693
            AED 588
          • Surface probes
            Fast-action surface probe with sprung thermocouple strip
            Fast-action, angled surface temperature probe (TC type K) for flat and uneven surfaces – measuring range: -60 to +300 °C
              :
              0602 0993
              AED 764
            • Surface probes
              Waterproof surface probe with widened measurement tip
              Waterproof surface temperature probe with widened measuring tip (TC type K) for flat surfaces – measuring range -60 to +400 °C
                :
                0602 1993
                AED 324
              • Surface probes
                Pipe wrap probe for pipe diameter 5 to 65 mm
                Temperature probe (TC type K) with clamping bracket for measurements on pipes with Ø 5-65 mm – Measuring range -60 to +130°C, briefly up to +280°C
                  :
                  0602 4592
                  AED 686
                • Surface probes
                  Clamp probe for measurements on pipes
                  Clamp probe (TC type K) for temperature measurements on pipes with Ø 15-25 mm – Measuring range -50 to +100°C, briefly up to +130°C
                    :
                    0602 4692
                    AED 357
                  • Surface probes
                    Magnetic probe (TC type K) - for surface temperatures
                    Surface temperature probe with magnet (TC type K), adhesive power 20 N – Measuring range -50 to +170°C
                      :
                      0602 4792
                      AED 815
                    • Surface probes
                      Magnetfühler, Haftkraft ca. 10 N, mit Haft-Magneten
                      Surface temperature probe with magnet (TC type K), adhesive power 10 N – Measuring range -50 to +400°C
                        :
                        0602 4892
                        AED 908
                      • Surface probes
                        Pipe wrap probe with velcro strip
                        Temperature probe with Velcro (TC Type K)
                          :
                          0628 0020
                          AED 235
                        • Surface probes
                          Flat head surface probe with telescopic handle max. 680 mm
                          Surface temperature probe (TC Type K) with telescope
                            :
                            0602 2394
