Details Technical Data Accessories

Flue gas probe, modular, 2.3 ft. immersion depth, incl. prob...

Order-Nr. 0600 8765

Find a distributor

1-484-602-4318

Inquiry

Easy probe shaft replacement via quick-change click system
NO₂/SO₂ special hose (length: 2.2 m)
Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
Integrated thermocouple probe for temperature measurements up to 1,832 °F

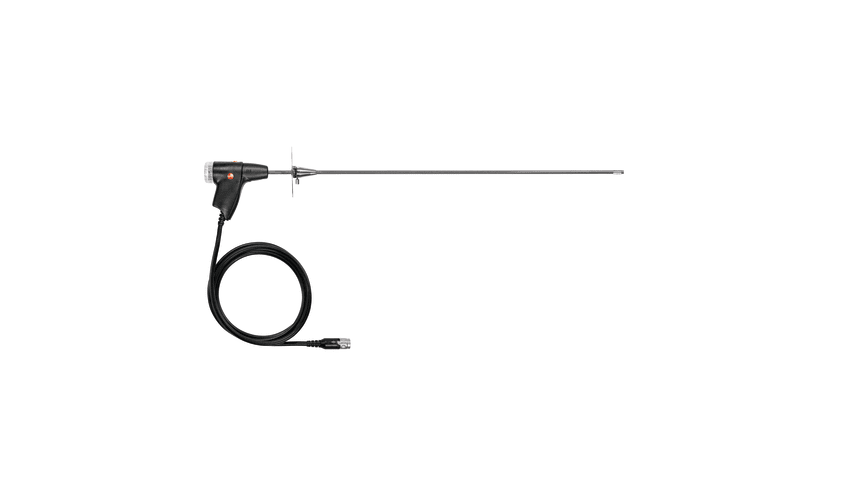

Flue gas probe, modular, 2.3 ft. immersion depth, incl. probe stop, thermocouple NiCr-Ni Tmax 1832°F and hose 7 ft.

Details

Product Description

On the modular flue gas probe with 27.5 in. long probe shaft, the flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock. The probe shaft is also easy to replace, thanks to the quick-change click system on the handle. The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 1832 °F. The probe is also supplied with a cone for attachment.

Delivery Scope

Modular flue gas probe 27.5 in. including cone for attachment, thermocouple NiCr-Ni Tmax 1832 °F and NO₂/SO₂ special hose 7.2 ft.

Related products

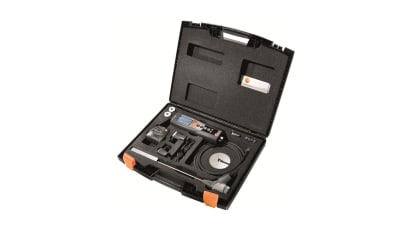

testo 340 - Combustion Analyzer for Commercial and Industrial Applications

Order-Nr. 0632 3340
- Flue gas analysis with up to 4 gas sensors - freely configurable with sensor change on site by the user
- testo 340 flue gas analyzer, calibration protocol, shoulder strap, O₂ sensor and integrated flow and pressure difference measurements
Details
testo 340 - Boiler and Burner Combustion Analyzer Kit

Order-Nr. 400563 3342
- Flue gas analysis with up to 4 gas sensors - freely configurable with sensor change on site by the user
- Optimize the combustion process and increasing fuel efficiency
Details
testo 340 - Engine Kit (for tuning and combustion maintenance)

Order-Nr. 400563 3343
- Flue gas analysis with up to 4 gas sensors - freely configurable with sensor change on site by the user
- For combustion tuning IC engines (spark-Ignited rich and lean burn and compression-ignited diesel engines)
Details

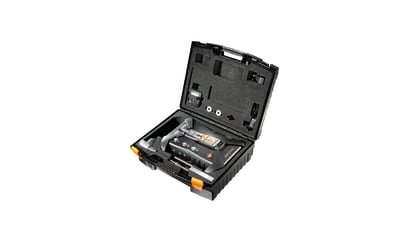

testo 350 - Portable emission analyzer

Order-Nr. 0632 3510
- Flue gas analysis with up to 6 gas sensors - freely configurable with sensor change on site by the user
- Increased measurement range for unlimited measurements even when gas concentrations are higher
Details
testo 350 - Control Unit (operates the 350 analyzer box)

Order-Nr. 0632 3511
- Flue gas analysis with up to 6 gas sensors - freely configurable with sensor change on site by the user
- testo 350 Analysis Box just as easy to use when not positioned at measurement site
Details
testo 350 - Boiler and Burner Kit

Order-Nr. 400563 3512
- Optimize fuel efficiency and reduce emissions
- Identify and troubleshoot bad burners, inlet air, or fuel delivery problems
Details
testo 350 - Engine Kit (for Compliance testing & tuning and combustion maintenance)

Order-Nr. 400563 3513
- For EPA Emissions Compliance testing – EPA test methods OTM 39, OTM 38, 7E, CTM-030, CTM-034, ASTM D6522, SCAQMD 1110.2, SCAQMD 1146. Its also used for state, local and company testing.
- For combustion tuning IC engines (spark-Ignited rich and lean burn and compression-ignited diesel engines)
Details
testo 350 - Turbine Kit for Low NOx and Low CO emissions testing

Order-Nr. 400563 3514
- Measures Low NOx (NO + NO2 with 0.1 ppm) Low CO (0.1 ppm), O2, on EPA dry basis
- Confirm emissions baseline and permit status
Details

Technical Data

General technical data
Weight	24.34 oz. / 690 g
Length probe shaft	27.559 in. / 700 mm
Housing	Metal housing
Cable length	7.218 ft. / 2.2 m
Diameter probe shaft	0.315 in. / 8 mm
Product colour	Black; silver
Temperature maximum	1,832 °F / 1,000 °C
Connection	Bayonet
