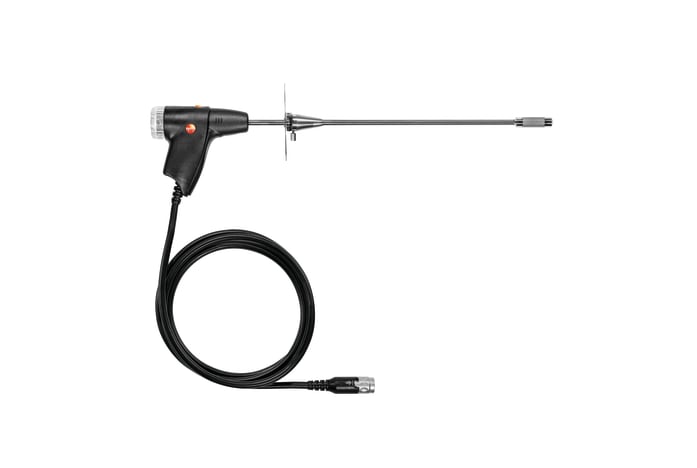

Flue gas probe, modular, with preliminary filter, 2.3 ft. im...

Order-Nr. 0600 8767

Find a distributor

Easy probe shaft replacement via quick-change click system
Preliminary filter offers protection from dusty flue gases
Flue gas path and temperature channel can be connected to the instrument via a bayonet lock
Integrated thermocouple probe for temperature measurements up to 1,832 °F

Flue gas probe, modular, with preliminary filter, 2.3 ft. immersion depth, incl. probe stop, thermocouple NiCr-Ni (TI) Tmax 1832°F and hose 7 ft.

Details

Product Description

The modular flue gas probe contains a preliminary filter with a diameter of 14 mm, which protects the measuring instrument and its sensors from dusty flue gases. The probe also features a quick-change click system on the handle, enabling easy replacement of the probe shaft. The thermocouple NiCr-Ni, which is integrated in the probe shaft, enables temperature measurement up to 1000 °C. Flue gas path and temperature channel can be conveniently connected to the measuring instrument via a practical bayonet lock.

Delivery Scope

Modular flue gas probe 700 mm with preliminary filter Ø 14 mm, including cone for attachment, thermocouple NiCr-Ni (TI) Tmax 1000 °C and NO₂/SO₂ special hose 2.2 m.

Related products

testo 340 - Combustion Analyzer for Commercial and Industrial Applications

Order-Nr. 0632 3340
- Flue gas analysis with up to 4 gas sensors - freely configurable with sensor change on site by the user
- testo 340 flue gas analyzer, calibration protocol, shoulder strap, O₂ sensor and integrated flow and pressure difference measurements
Details
testo 340 - Boiler and Burner Combustion Analyzer Kit

Order-Nr. 400563 3342
- Flue gas analysis with up to 4 gas sensors - freely configurable with sensor change on site by the user
- Optimize the combustion process and increasing fuel efficiency
Details
testo 340 - Engine Kit (for tuning and combustion maintenance)

Order-Nr. 400563 3343
- Flue gas analysis with up to 4 gas sensors - freely configurable with sensor change on site by the user
- For combustion tuning IC engines (spark-Ignited rich and lean burn and compression-ignited diesel engines)
Details
testo 350 - Portable emission analyzer

Order-Nr. 0632 3510
- Flue gas analysis with up to 6 gas sensors - freely configurable with sensor change on site by the user
- Increased measurement range for unlimited measurements even when gas concentrations are higher
Details
testo 350 - Control Unit (operates the 350 analyzer box)

Order-Nr. 0632 3511
- Flue gas analysis with up to 6 gas sensors - freely configurable with sensor change on site by the user
- testo 350 Analysis Box just as easy to use when not positioned at measurement site
Details
testo 350 - Boiler and Burner Kit

Order-Nr. 400563 3512
- Optimize fuel efficiency and reduce emissions
- Identify and troubleshoot bad burners, inlet air, or fuel delivery problems
Details
testo 350 - Engine Kit (for Compliance testing & tuning and combustion maintenance)

Order-Nr. 400563 3513
- For EPA Emissions Compliance testing – EPA test methods OTM 39, OTM 38, 7E, CTM-030, CTM-034, ASTM D6522, SCAQMD 1110.2, SCAQMD 1146. Its also used for state, local and company testing.
- For combustion tuning IC engines (spark-Ignited rich and lean burn and compression-ignited diesel engines)
Details
testo 350 - Turbine Kit for Low NOx and Low CO emissions testing

Order-Nr. 400563 3514
- Measures Low NOx (NO + NO2 with 0.1 ppm) Low CO (0.1 ppm), O2, on EPA dry basis
- Confirm emissions baseline and permit status
Details

Technical Data

General technical data
Weight	25.61 oz. / 726 g
Length probe shaft	27.559 in. / 700 mm
Housing	Metal housing
Cable length	7.218 ft. / 2.2 m
Diameter probe shaft tip	0.551 in. / 14 mm
Diameter probe shaft	0.315 in. / 8 mm
Product colour	Black; silver
Temperature maximum	1,832 °F / 1,000 °C
