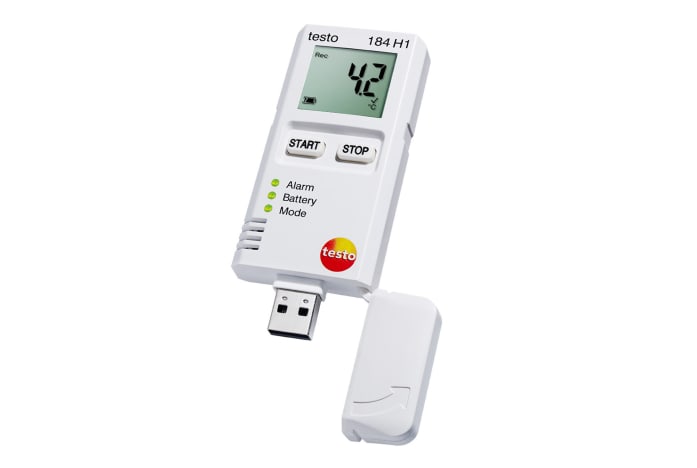

testo 184 H1 - Temperature and humidity USB transport data logger with LCD display

0572 1845
  • Easy programming and reporting without additional software (plug and play)
  • Measurement data memory for up to 60,000 readings
  • Easy-to-change battery
  • Battery life up to 500 days
  • Professional software for programming the logger and data analysis
  • Convenient Excel export functions
    • The testo 184 H1 logger is capable of monitoring temperature and humidity levels during cold chain transportation. Its large, easy to read LCD display shows readouts in real time. Its LED status lights alert when specified limits have been exceeded. With configuration, reports, and calibration certificates on-board, the 184 makes transport monitoring and documentation of sensitive goods easy.

    • Easy programming and reporting without additional software (plug and play).

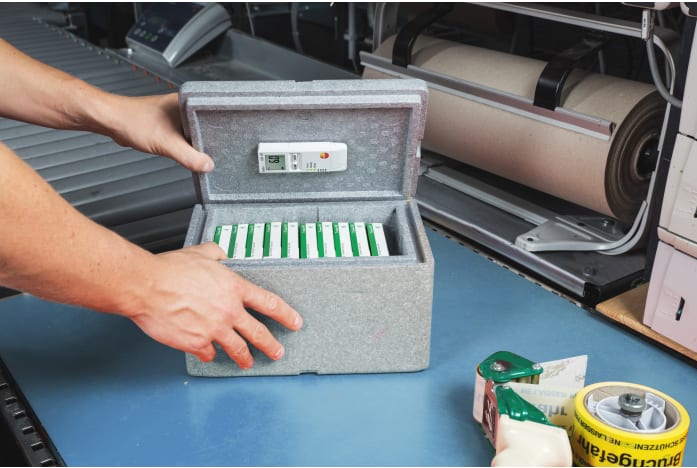

    The testo 184 H1 temperature and humidity logger is ideal for both pharmaceutical and food cold chain logistics. Configuration of the testo 184 logger is as simple as plugging into a USB port and customizing the included PDF file. With clear indication of configurable alarm settings, including measurement frequency, temperature or humidty range, and start and end times, ensuring proper cold chain transportation has never been easier. For international shipping, different languages can be independently configured for the recipient or shipper. Available in packs of 1, 10, or 50, configuring mutiple devices is as simple as drag and drop.

    • NFC communication to compatible devices allows for unaltered documentation to display immediately
    • Easy configuration on any computer with pre-loaded files
    • On-board electronic calibration certificate eliminates the hassles of maintaining traceabilty
    • IP30 protection class
    • GxP, ISO 9001:2008, FDA 21 CFR Part 11, EN 12830, and HACCP International compliant

    Temperature - NTC

    Measuring range
    -4.0° to 158.0 °F / -20 to +70 °C
    Accuracy
    ±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to 0 °C)
    ±0.9 °F (32° to 158 °F) / ±0.5 °C (0 to +70 °C)
    Resolution
    0.1 °F / 0.1 °C
    Reaction time
    t90 = 30 min
    Measuring rate
    1 min to 24 hr

    Humidity - Capacitive

    Measuring range
    0 to 100 %rH
    Accuracy
    ±0.03 %rF/K (at 32.0° to 140 °F) / ±0.03 %RH/K (at 0 to 60 °C)
    ±1.8 %rH, +3 % of mv (at 77 °F , 5 % to 80 %rH) / ±1.8 %RH, +3 % of mv (at 25 °C , 5 % to 80 %RH) / ±1.8 %RH, +3 % of mv (at 25 °C, 5 % to 80 %RH)
    ±1 %rF/year Drift
    ±1 %rF Hysterese
    Resolution
    0.1 %rH
    Measuring rate
    1 min to 24 hr

    General technical data

    Weight
    0,2 oz. / 44 g
    Dimensions
    0,2 x 0,0 x 0,04 in. (t4) / 40 x 12.5 x 96.5 mm
    Operating temperature
    -4.0° to 158.0 °F / -20 to +70 °C
    Housing
    ABS
    Protection class
    IP30
    System requirements
    Adobe® Acrobat Reader
    Product colour
    white
    Standards
    CE 2014/30/EU; CFR 21 Part 11 (in use with testo ComSoft CFR-Software)
    Certificate type
    Certified by HACCP International
    Channels
    2 internal
    Operating time
    Unlimited
    Authorizations
    CE
    Alarmsignal
    by LED and Display
    Battery type
    Lithium battery CR2450, 3V, exchangeable
    Battery life
    500 days (at +25 °C and 15 mins measurement rate).
    Display type
    segment LCD
    Display size
    one-line
    Display ligthing
    no
    Interface
    USB; NFC
    Memory
    60,000 measuring values
    Storage temperature
    -67.0° to 158.0 °F / -55 to +70 °C

    Humidity Certificates

  • Humidity Certificates
    Calibration certificate
    With a Testo ISO Calibration Certificate, we will calibrate your Testo meter for humidity.
      :
      0520 0076

      • Printer and accessories

    • Printer and accessories
      Mobile Printer 0572 0576
      Mobile printer for data loggers
        :
        0572 0576

        • Software and Accessories

      • Software and Accessories
        ComSoft Professional 4
          :
          0554 1704
        • Software and Accessories
          ComSoft CFR 21 Part 11
            :
            0554 1705

            • testo 184 H1 Configuration(v1.16, pdf, 277.43 kB)
              This pdf document is a configuration file, therefore you might not be able to open it in your web browser. Please download the data and open it using your Adobe Acrobat Reader.
