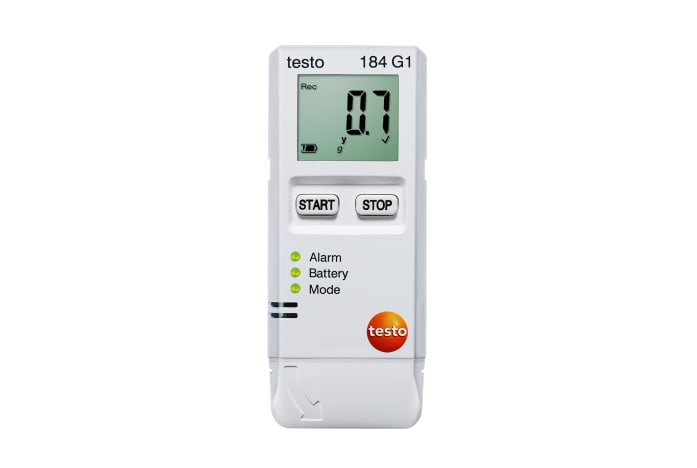

testo 184 G1 - Temperature, humidity and shock USB transport data logger

0572 1846
  • Easy programming and reporting without additional software (plug and play)
  • Measurement data memory for up to 65,000 readings
  • Easy-to-change battery
  • Battery life up to 120 days
  • Professional software for programming the logger and data analysis
  • Convenient Excel export functions
  • The testo 184 G1 data logger is suited for cold chain transportation, monitoring fragile or sensitive items and is capable of monitoring temperature, humidity, and shock. With configuration, reports, calibration certificates on-board, and LED lights that indicate when specified limits have been exceeded, transport monitoring and documentation of sensitive goods is easy.
    • testo-184-Programmierung-Reporting_2000x1500.jpg

      Easy programming and reporting without additional software (plug and play).

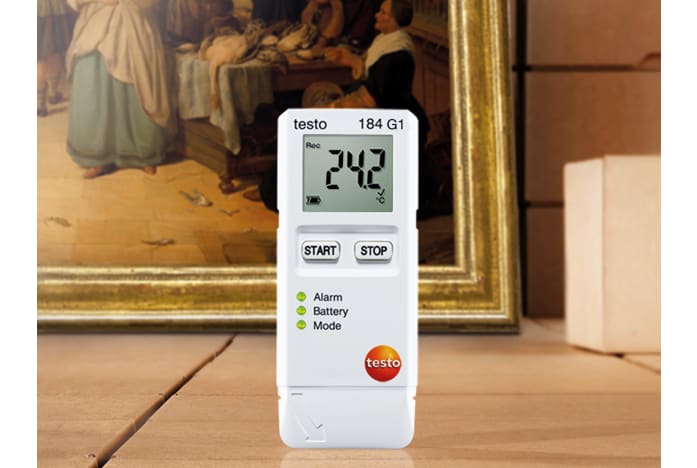

    The testo 184 G1 data logger is ideal for the transport of fragile items. Configuration of the testo 184 logger is as simple as plugging into a USB port and customizing the included PDF file. With clear indication of configurable alarm settings, including measurement frequency, temperature, humidity or shock range, and start and end times, ensuring proper cold chain transportation has never been easier. For international shipping, different languages can be independently configured for the recipient or shipper. Available in packs of 1, 10, or 50, configuring mutiple devices is as simple as drag and drop.

    • NFC communication to compatible devices allows for unaltered documentation to display immediately
    • Easy configuration on any computer with pre-loaded files
    • On-board electronic calibration certificate eliminates the hassles of maintaining traceabilty
    • IP30 protection class
    • GxP, ISO 9001:2008, FDA 21 CFR Part 11, EN 12830, and HACCP International compliant
    • Includes Wall Mount with lock and keys
      Dimensions are: 4.125” Hx 1.75”W x 0.68” D (104.7mm H x 44.5mm W x 14.5mm D)
      Distance between holes (center to center): 1.25” (31.7mm)

    testo 184 G1 data logger, wall mount (with lock and keys) and adhesive installation pad

    Temperature - NTC

    Measuring range
    -4° to 158 °F / -20 to +70 °C
    Accuracy
    ±0.9 °F (32° to 158 °F) / ±0.5 °C (0 to +70 °C)
    ±1.4 °F (-4° to 32 °F) / ±0.8 °C (-20 to +0 °C)
    Resolution
    0.1 °F / 0.1 °C
    Reaction time
    t90 = 30 min
    Measuring rate
    1 min to 24 hr

    Humidity - Capacitive

    Measuring range
    0 to 100 %rH
    Accuracy
    ±0.03 %rF/K (at 32.0° to 140 °F) / ±0.03 %RH/K (at 0 to 60 °C)
    ±1 %rF/year Drift
    ±1.8 %rH, +3 % of mv (at 77 °F , 5 % to 80 %rH) / ±1.8 %RH, +3 % of mv (at 25 °C , 5 % to 80 %RH)
    ±1.00 %rF Hysterese (n2{#0}° t1 n3{#0} {%S3})
    Resolution
    0.1 %rH
    Measuring rate
    1 min to 24 hr

    Shock

    Measuring range
    0 to 27 g
    0 to 265 m/s²
    Accuracy
    ±(0.1 g + 5 % of mv)
    ±1 / 1 / 1 m/s²
    Resolution
    0.1 g
    1 m/s²
    Measuring rate
    1 sec
