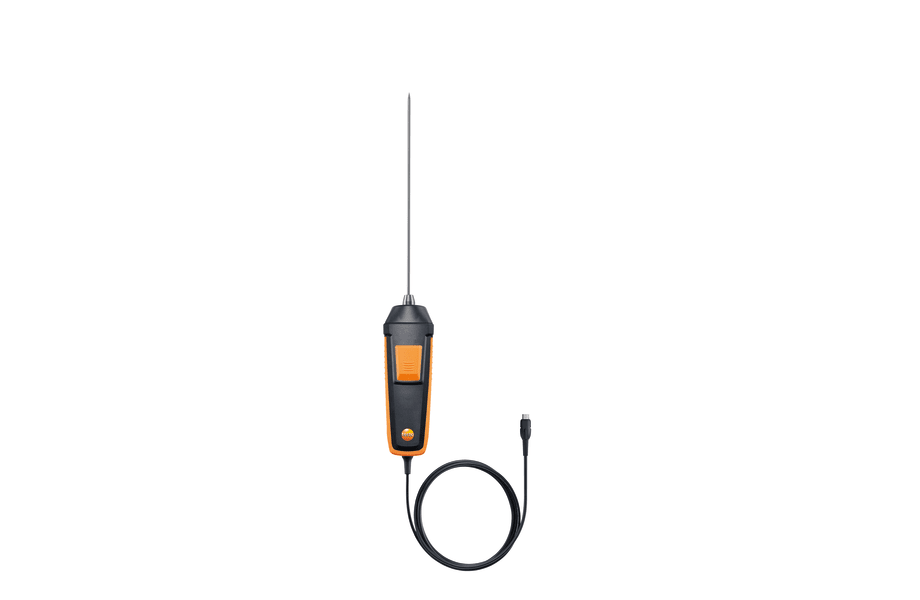

Immersion/penetration probe (Pt100)

Ideal for measurements in laboratories, in industry and also in food quality control. The high-precision immersion/penetration probe with a Pt100 temperature sensor, which features long-term stability, is particularly suitable for carrying out temperature measurements in liquids and pastes.

Particularly useful: Store individual readings directly in the measuring instrument itself (please order separately) by pressing the button on the probe. The measurement assistant in the measuring instrument makes for intuitive operation and error-free measurement. Reading trends are reliably recorded thanks to the convenient input of measurement time and measuring cycle.

Intelligent calibration concept

With the digital temperature probe you benefit from exceptionally accurate measurement results, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe in for calibration – so the measuring instrument remains in continuous use. Thanks to the adjustment function in the measuring instrument, the calibration results can be stored at up to six measuring points. This ensures a zero-error display.

Temperature - Pt100	Measuring range -148° to 752 °F / -100 to +400 °C
Accuracy ±(0.9 °F + 0.5 % of mv) (+350.01 to +752.0 °F) / ±(0.5 °C + 0.5 % of mv) (+350.01 to +400 °C) ±(0.27 °F + 0.05 % of mv) (0.0° to +212.0 °F) / ±(0.15 °C + 0.05 % of mv) (0 to +100 °C) {±(#0.00} °F + 0.2 % of mv) (-100.0° to 31.98 °F) / ±(0.15 °C + 0.2 % of mv) (-100 to -0.01 °C) ±(0.27 °F + 0.2 % of mv) (100.01+° to +662.0 °F) / ±(0.15 °C + 0.2 % of mv) (+100.01 to +350 °C)
Resolution 0.01 °F / 0.01 °C
Reaction time t90 <45 sec

Measuring range

-148° to 752 °F / -100 to +400 °C

Accuracy

±(0.9 °F + 0.5 % of mv) (+350.01 to +752.0 °F) / ±(0.5 °C + 0.5 % of mv) (+350.01 to +400 °C)

±(0.27 °F + 0.05 % of mv) (0.0° to +212.0 °F) / ±(0.15 °C + 0.05 % of mv) (0 to +100 °C)

{±(#0.00} °F + 0.2 % of mv) (-100.0° to 31.98 °F) / ±(0.15 °C + 0.2 % of mv) (-100 to -0.01 °C)

±(0.27 °F + 0.2 % of mv) (100.01+° to +662.0 °F) / ±(0.15 °C + 0.2 % of mv) (+100.01 to +350 °C)

Resolution

0.01 °F / 0.01 °C

Reaction time

t90 <45 sec

General technical data	Storage temperature -4° to 140 °F / -20 to +60 °C
Weight 6.42 oz. / 182 g
Dimensions 14.2 x 2.0 x 1.6 in. (LxWxH) / 360 x 50 x 40 mm (LxWxH)
Operating temperature 23° to 122 °F / -5 to +50 °C
Length probe shaft 7.874 in. / 200 mm
Housing PC - ABS
Cable length 4.593 ft. / 1.4 m
Diameter probe shaft tip 0.118 in. / 3 mm
Diameter probe shaft 0.118 in. / 3 mm
Product colour black/orange

Storage temperature

-4° to 140 °F / -20 to +60 °C

Weight

6.42 oz. / 182 g

Dimensions

14.2 x 2.0 x 1.6 in. (LxWxH) / 360 x 50 x 40 mm (LxWxH)

Operating temperature

23° to 122 °F / -5 to +50 °C

Length probe shaft

7.874 in. / 200 mm

Housing

PC - ABS
