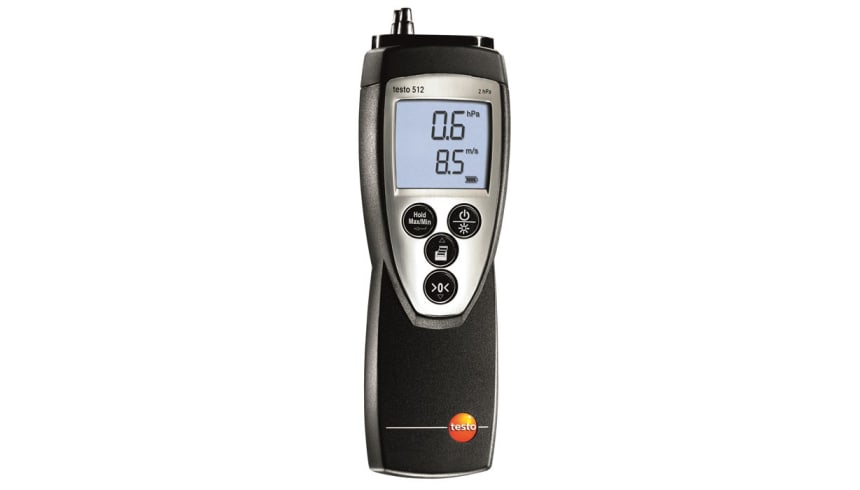

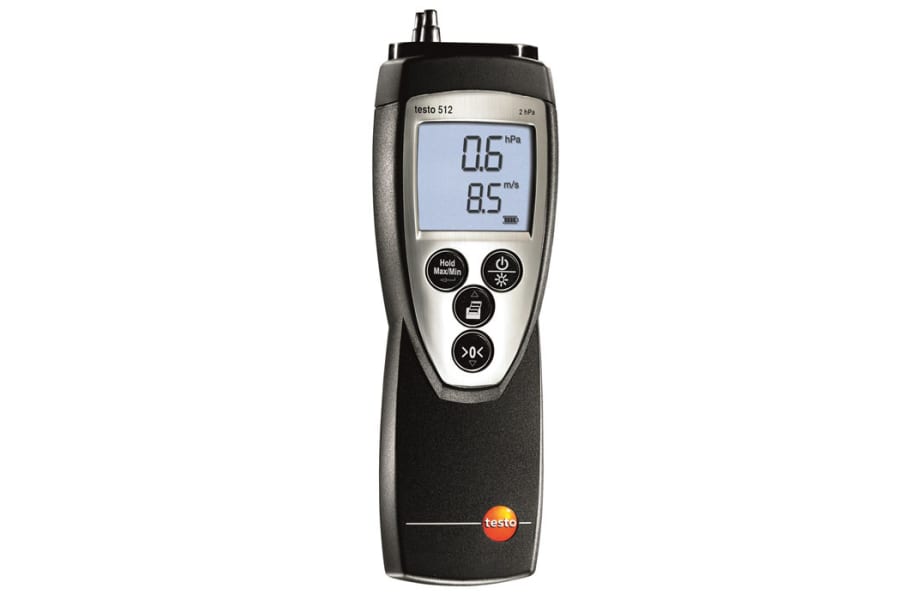

testo 512 - Pressure and flow velocity measuring instrument 0 to 200 hPa

0560 5128
  • 8 measurement units to choose from: psi, kPa, hPa, Pa, mmH2O, mmHg, inH2O, inHg
  • 2 air flow units to select from: fpm, m/s
  • Integrated density compensation
  • Backlit display / min and max values / hold function
  • Product no longer available. Have you checked out its successor?
    Why not enjoy the benefits that it has to offer: >> To the product

    The testo 512, with a measuring range of 0 to 200 hPa, can be used to help you carry out quick and easy filter checks, when performing differential pressure checks on ventilation and air conditioning systems. Differential pressure measurements are carried out to determine whether filters still work properly, or if they are used up and clogged, and need to be replaced.

    This differential pressure meter is ideal for carrying out pitot static tube measurements in air ducts at very high air flow speeds, or when the air stream is strongly polluted. This compact, rugged meter shows both the pressure and the air flow speed, and has a measuring range of 10 to 100 m/s.

    The damper for adjustable averaging can be programmed individually, while the density compensation is already integrated.

    The pitot static tube that you will need to carry out your air flow measurements can be ordered together with your differential pressure meter. Choose from one of three models to select the model that is best suited to your individual requirements. The pitot static tube is inserted into the air duct, where it measures the air flow quickly and reliably.

    The testo 512 displays the pressure and air flow speed simultaneously. You can choose between two different units of measurement, m/s and fpm, to indicate the air flow speed, and from eight different units, psi, kPa, hPa, Pa, mmH2O, mmHg, inH2O, and inHg, to measure the pressure.



    More accessories for even more benefits in the field

    By deciding to invest in some of the practical accessories, you are also actively taking a step towards ensuring that you will be able to make the most of your differential pressure meter for years to come. The all-in-one carrying case and transport case protect both your meter and the pitot static tube during transport and storage, and the TopSafe protective cover protects the meter against impact, dirt, and water ingress.

    And last, but by no means least, there’s the testo turbo printer, which can provide you with quick and easy printouts with time and date, while you are still on site.

    testo 512 differential pressure meter (measuring range of 0 to 200 hPa), calibration certificate, and batteries

    Customers who viewed this product also viewed

  • Customers who viewed this product also viewed
    testo 440 Delta P Air Flow ComboKit 1 with Bluetooth®
    testo 440 dP - Air flow ComboKit 1 with Bluetooth and delta P
    • A measuring instrument for all climate-related parameters
    • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts or at ventilation outlets
    :
    0563 4409
    1
  • Customers who viewed this product also viewed
    testo 440 Delta P Air Flow ComboKit 2 with Bluetooth®
    testo 440 dP - Air flow ComboKit 2 with Bluetooth and delta P
    • A measuring instrument for all climate-related parameters
    • Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, differential pressure, humidity and temperature in ventilation ducts, at ventilation outlets and in work rooms
    :
    0563 4410
    1
  • Customers who viewed this product also viewed
    testo 510 Set
    testo 510 - Digital manometer
    • Pocket-sized temperature and air density-compensated differential pressure measurement
    • Illuminated display
    :
    0563 0510
  • Customers who viewed this product also viewed
    testo 420
    testo 420 - Differential pressure manometer
    • Differential pressure measurement, useful for checking filters in air conditioning and ventilation systems
    • Calculate flow velocity and volume flow using an optional pitot tube
    :
    0560 0420
    1
  • Customers who viewed this product also viewed
    testo 440 dP Air velocity and IAQ measuring instrument including differential pressure sensor
    testo 440 dP - Air velocity and IAQ measuring instrument with differential pressure sensor
    • A measuring instrument for all climate-related parameters
    • Includes a differential pressure sensor: for Pitot tube measurement and monitoring filters
    :
    0560 4402
  • Customers who viewed this product also viewed
    testo 400 Universal IAQ instrument
    testo 400 - Universal Air Flow and IAQ Instrument
    • A measuring instrument for all climate-related parameters
    • Smart, intuitive measurement programs including HVAC grid measurement as per EN ISO 12599 and ASHRAE 111, PMV/PPD and turbulence as per EN ISO 7730 and ASHRAE 55
    :
    0560 0400
  • Customers who viewed this product also viewed
    testo 512-1
    testo 512-1 - Digital differential pressure measuring instrument with App connection
    • Simple, fast and precise differential pressure measurement (0 to 200 hPa) for checking filters and for Pitot tube measurement in the ventilation duct
    • Reliable measurement results due to position-independent differential pressure sensor with high accuracy
    :
    0563 1512
    1
  • Differential Pressure

    Measuring range
    0 to +80 InH₂O / 0 to +200 hPa
    1970 to 19690 fpm
    +1969 to +19685 fpm / +10 to +100 m/s
    Accuracy
    0.5 % Fs
    Resolution
    0.1 fpm
    0.1 InH₂O / 0.1 hPa
    0.1 fpm / 0.1 m/s
    Overload
    ±800 InH₂O / ±2000 hPa

    General technical data

    Dimensions
    8 x 2 x 2 in. / 202 x 57 x 42 mm
    Operating temperature
    32° to 140 °F / 0 to +60 °C
    Measuring medium
    All non-corrosive gases
    Seceltable units
    hPa, Pa, mmH₂O, inH₂O, inHg, mmHg, kPa, psi, m/s, fpm
    Battery type
    9V block battery, 6F22
    Battery life
    120 h
    Display type
    LCD
    Display size
    2 lines
    Storage temperature
    14° to 158 °F / -10 to +70 °C
    Weight
    11 oz. / 300 g
