    testo 327-1 - Flue Gas Analyser (advanced kit)

    0563 3203 81
    £ 699.00 £ 838.80
    1
  1. Robust & reliable
  2. Best value flue gas analyser on the market
  3. Measures O₂ & CO, will calculate ratio, CO₂, and more
  4. Soft carry case with shoulder strap
  5. Testo IR Printer (advanced kit only)
  6. The testo 327-1 Flue Gas Analyser offers a robust and simple entry into flue gas analysis for domestic boilers. It measures O2 & CO , and will calculate ratio, CO2, etc. The 4-line LED  display can be configured to the users requirements, and its back-lighting function guarantees an easy-to-read display even if lighting conditions are unfavourable. The analyser stands out on account of its easy menu navigation and ergonomic housing as well as its durability.
    • not available

      Product registration

      When you register your product, we will extend the regular manufacturer's warranty by one year.

      Register now

    Overview

    The testo 327-1 Flue Gas Analyser offers a robust and simple entry into flue gas analysis for domestic boilers. It measures O2 & CO , and will calculate ratio, CO2, etc. The 4-line LED  display can be configured to the users requirements, and its back-lighting function guarantees an easy-to-read display even if lighting conditions are unfavourable. The analyser stands out on account of its easy menu navigation and ergonomic housing as well as its durability.

    Advanced kit features include :
    • 4,000ppm CO sensor with automatic pump shut off to help prevent saturation.
    • 7 user selectable fuels
    • Rechargable Li-ion battery
    • Adaptors and accesories for  pressure measurement, and differential temperature clamp probes supplied
    • Testo IR printer
    • Soft carry case with shoulder strap

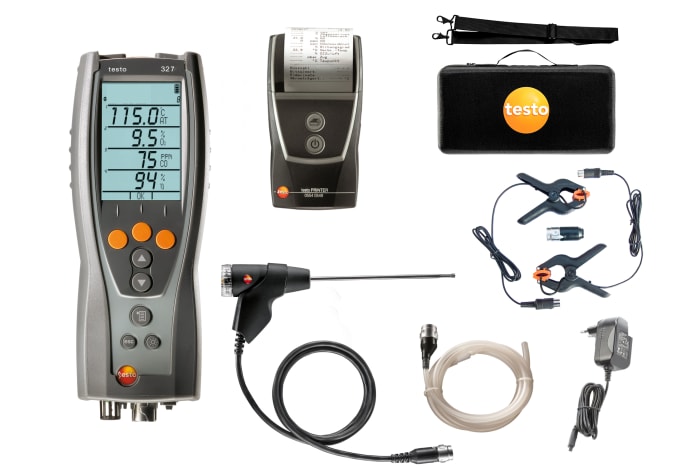

    testo 327 Flue Gas Analyser, rechargeable battery and calibration protocol, Flue Gas Probe (180mm x 6mm diameter), Pressure hose connection kit, Differential temperature kit (2 x pipe clamp probes), testo infrared printer, soft carry case with shoulder strap, AC power supply.

    General technical data

    Weight
    (with probe) Approx. 700 g
    Dimensions
    201 x 83 x 44 mm
    Operating temperature
    -5 to +45 °C
    Display type
    LCD (Liquid Crystal Display)
    Display function
    Backlit 2-line display
    Power supply
    Battery: 1500 mAh, mains unit 5V/1A
    Storage temperature
    -20 to +50 °C

    Temperature - TC Type K (NiCr-Ni)

    Measuring range
    -40.00 to +600.00 °C
    Accuracy
    ±0.50 °C (0 to 99.90 °C)
    ±0.50 °C (100 to 600 °C)
    Resolution
    0.1 °C
    Reaction time
    < 50 s
    Temperature (ambient temperature)

    Flue gas O₂

    Measuring range
    0 to 21 Vol.%
    Accuracy
    ±0.2 Vol.%
    Resolution
    0.1 Vol.%
    Reaction time t₉₀
    30 s

    Flue gas probes

    Temperature probes

  7. Temperature probes
      :
      0554 7223
      £ 60.00 £ 72.00
      1
    • Temperature probes
      Differenztemperatur-Set testo
      Differential temperature set consisting of 2 Velcro probes and temperature adaper testo 327
        :
        0554 1208
        £ 67.00 £ 80.40
        1
      • Accessories

      • Accessories
        Hose connection set for separate gas pressure measurement
        Hose connection set for separate gas pressure measurement testo 300, testo 330 LL and testo 320
          :
          0554 1203
          £ 28.00 £ 33.60
        • Accessories
          testo-Schnelldrucker IRDA mit kabelloser Infrarot-Schnittstelle
          testo fast printer IRDA
            :
            0554 0549
            £ 209.00 £ 250.80
            1
          • Accessories
            testo 320-330 case
            Instrument case (height: 130 mm) - for instrument, probes and accessories
              :
              0516 3300
              £ 92.00 £ 110.40
              1
            • Accessories
              Instrument bag
              Instrument bag with carrying strap
                :
                0516 3001
                £ 66.00 £ 79.20
                1
              • Accessories
                Mains unit international
                International mains unit
                  :
                  0554 1096
                  £ 52.00 £ 62.40
                  1
