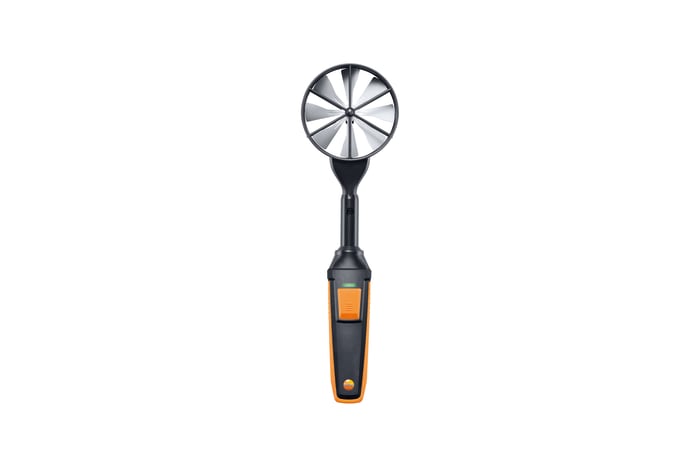

    High-precision vane probe (Ø 100 mm, digital) - with Bluetooth® including temperature sensor

    0635 9371
  1. Intuitive: clearly structured measurement menu for volume flow and parallel determination of air velocity, volume flow and air temperature
  2. Precise: detects the smallest air velocities from as little as 0.1 m/s – ideal for laminar flow measurements in cleanrooms
  3. Convenient: Bluetooth connection between measuring instrument and probe, with a practical button on the handle for storing individual readings, convenient measurement at ceiling outlets with optional telescope (up to 1 m)
  4. Intelligent calibration concept
  5. Ideal for air outlets in cleanrooms: use the high-precision vane probe (with the compatible measuring instrument) to measure even the lowest air velocities and volume flows as well as the temperature. The readings are transmitted directly to your measuring instrument via Bluetooth, making your measurements particularly convenient.
    Use the vane probe with the compatible testo multifunction measuring instrument (please order separately) to measure air velocity, volume flow and temperatures up to +70 °C.



    High-precision vane probe with Bluetooth including temperature sensor – features

    The readings of the vane probe are transmitted to your measuring instrument via Bluetooth, up to a distance of 20 m.

    The clearly structured measurement menu for volume flow enables the measuring instrument to be operated intuitively. The volume flow is precisely calculated thanks to convenient input of the size and geometry of the duct cross-section. Timed and multi-point mean calculation, average volume flow, current reading and min./max. values are displayed in the measuring instrument.

    Particularly useful: press the button on the vane probe to operate the measuring instrument. For example, to store individual readings for multi-point mean calculation or to start and stop measurement series for mean calculation over time.



    Wireless and space-saving: more applications, less equipment

    Endlessly versatile: a universal handle can be connected to all probe heads – so you can master more applications using less equipment and save space. The Bluetooth handle makes it more convenient to carry out your measurement and guarantees less cable clutter in the case.

    Or order the cable handle to connect testo probe heads. This is an advantage if Bluetooth signals are not permitted. If the vane needs to be replaced in the distant future, you can change the probe head.

    If required, you can also fit the vane probe with the extendable telescope with 90° angle and, if necessary, the telescope extension (both can be ordered separately; in combination 2 m long). This makes it easy to measure at ceiling outlets.



    Intelligent calibration concept

    You will get exceptionally accurate measurement results with the digital vane probe, because the measuring instrument makes measurement uncertainty a thing of the past. You only need to send the probe head in for calibration – so the measuring instrument remains in continuous use.



    Areas of application for the high-precision vane probe with Bluetooth

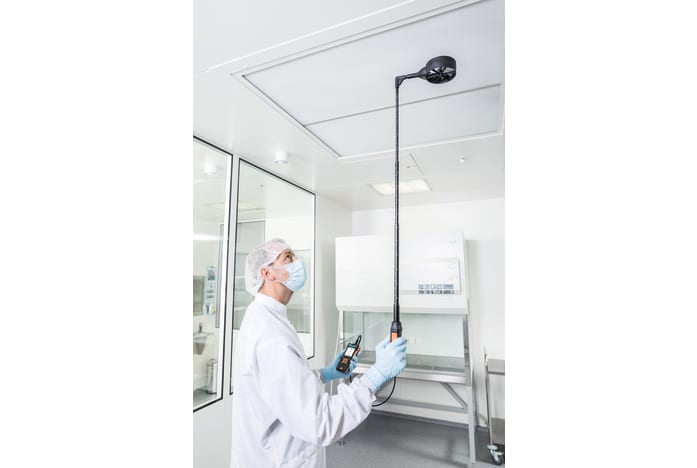

    Air/ceiling outlets: Use the vane probe to determine air velocity and volume flow at air outlets. Thanks to the low start-up speed of 0.1 m/s, the vane probe is ideal for laminar flow measurements in cleanrooms.

    During loop-pattern scanning of the grille’s cross section, the air velocity values are integrated and averaged across a large area of 100 mm. As a result, precise measurement results are achieved with the loop measurement.

    For measurements at ceiling outlets: the extendable telescope (1.0 m long) with easy-to-read scaling and 90° angle is easy to attach to the vane probe. The 90° angle ensures that the probe is positioned correctly under the ceiling. For high ceilings, you can also use the telescope extension, attaining a total length of 2 metres (please order the extendable telescope and telescope extension separately).

    Plate outlets, ventilation grilles and swirl outlets: For convenient, accurate measurements at plate outlets and ventilation grilles, we recommend using the vane probe with the testovent 417 funnel set (please order separately). This guarantees simple testing of incoming/outgoing air – such as in the controlled ventilation of living spaces.
    If you add in the volume flow straightener (please order separately), an impressively high level of precision can be achieved when carrying out measurements at swirl outlets.


    High-precision vane probe (Ø 100 mm) with Bluetooth including temperature sensor (consisting of high-precision 100 mm vane probe head, handle adapter and Bluetooth handle), bracket for testovent measurement funnel, 4 x AA batteries and calibration protocol.

    General technical data

    Storage temperature
    -4° to 140 °F / -20 to +60 °C
    Weight
    12.5 oz. / 355 g
    Dimensions
    14.8 x 4.1 x 1.8 in. / 375 x 105 x 46 mm
    Operating temperature
    23° to 122 °F / -5 to +50 °C
    Probe head diameter
    3.937 in. / 100 mm
    Product colour
    black/orange
    Battery type
    4 x AA batteries
    Battery life
    60 h
    Data transfer
    Bluetooth®
    Radio range
    65.616 ft. / 20 m

    Temperature - NTC

    Measuring range
    -4° to 158 °F / -20 to +70 °C
    Accuracy
    ±0.9 °F / ±0.5 °C
    Resolution
    0.1 °F / 0.1 °C

    Accessories

    Sensor heads

  6. Sensor heads
    16 mm vane probe head including temperature sensor
    16 mm vane probe head including temperature sensor; for attachment to extendable telescope for air velocity probes with universal handle – measuring range +0.6 to +50 m/s, -10 to +70 °C
      :
      0635 9570
    • Sensor heads
      High-precision 100 mm vane probe head including temperature sensor
      High-precision 100 mm vane probe head including temperature sensor: for attachment to extendable telescope for air velocity probes with universal handle or to a universal Bluetooth® or cable handle – measuring range +0.1 to +15 m/s, -20 to +70 °C
        :
        0635 9370
      • Sensor heads
        100 mm vane probe head
        100 mm vane probe head: for attachment to extendable telescope for air velocity probes with universal handle or to universal Bluetooth® or cable handle – measuring range +0.3 to +35 m/s, -20 to +70 °C
          :
          0635 9430
        • Sensor heads
          Hot wire probe head including temperature and humidity sensor
          Hot wire probe head including temperature and humidity sensor: for attachment to extendable telescope for air velocity probes with universal handle – measuring range 0 to +50 m/s, -20 to +70 °C, 5 to 95% RH
            :
            0635 1570
          • Sensor heads
            Humidity/temperature probe head
            Humidity/temperature probe head: for attachment to universal Bluetooth® or cable handle – accuracy ±2% RH / ±0.5 °C, measuring range 0 to 100% RH / -20 to +70 °C
              :
              0636 9730
            • Sensor heads
              High-precision humidity/temperature probe head: for attachment to a universal Bluetooth® or cable handle – accuracy: ±(0.6% RH + 0.7 % of m.v.) (0 to 90% RH) / ±0.3 °C (+15 to +30 °C)
                :
                0636 9770
              • Sensor heads
                CO2 probe head including temperature and humidity sensor
                CO₂ probe head including temperature and humidity sensor: for attachment to universal Bluetooth® or cable handle – measuring range 0 to 10,000 ppm, -10 to +50 °C, 5 to 95% RH
                  :
                  0632 1550
                • Sensor heads
                  CO probe head
                  CO probe head: for attachment to universal Bluetooth® or cable handle – measuring range 0 to 500 ppm
                    :
                    0632 1270
