testo 922 - Digital temperature meter

Order-Nr.  0560 9221

  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
  • testo 922
This meter uses a sensor to start up. Click here for probe selection.
$ 220.00
excl. tax
Where to buy
1-484-773-0111
Inquiry

  • Temperature measurements / temperature difference display

  • Wide measuring range from -58 °to 1832 °F

  • Connecting points for two type K temperature sensors and wireless connectivity for a third temperature sensor

  • Wide range of optional sensors

Product no longer available. Have you checked out its successor?
Why not enjoy the benefits that it has to offer: >> To the product

Details

Product Description

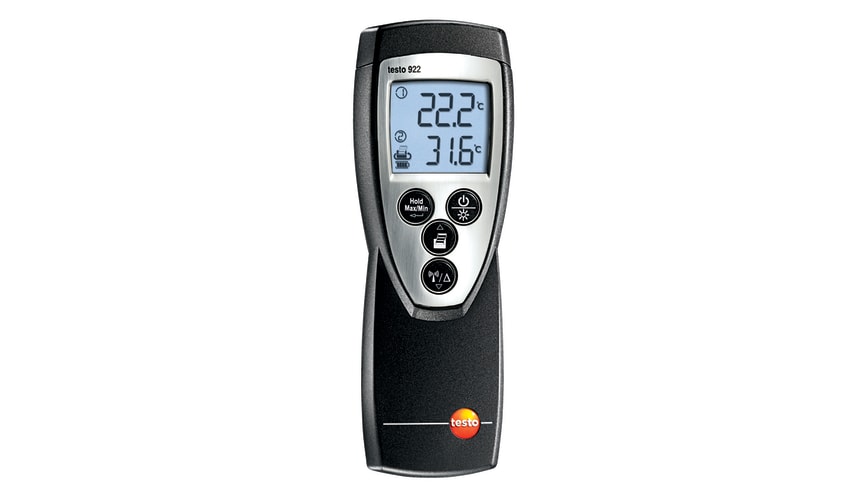

The testo 922 digital temperature meter measures temperatures and determines the temperature difference in a matter of seconds. The meter comes with connecting points for up to two temperature sensors and wireless connectivity for a third sensor.

At-a-glance look at all the features

  • Connecting points for 2 optional type K temperature sensors
  • Wireless connectivity for a third temperature sensor
  • Temperature values and temperature difference directly visible in display
  • Permanent display of min and max values
  • Hold function that freezes the last reading

The testo 922 digital temperature meter - accessories and sensors

  • There is a wide selection of optional temperature and wireless sensors
  • The testo protocol printer allows you to print out on site; the cyclic printing can be used in  adjustable (i.e. one-minute) intervals

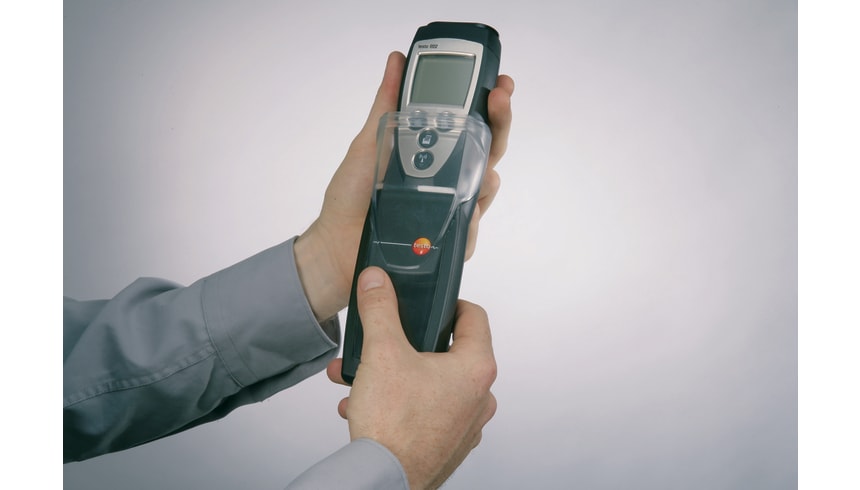

  • The IP65 rated TopSafe protective case protects against impact and dirt and water ingress

The testo 922 digital temperature meter - areas of application

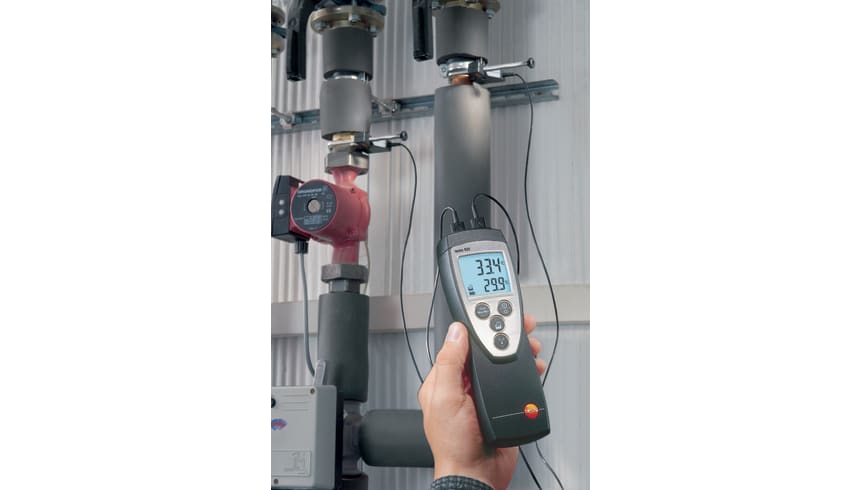

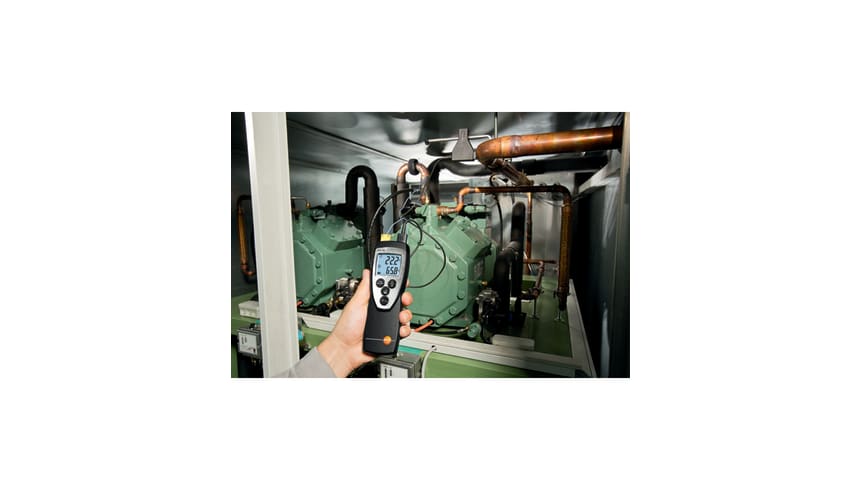

Professionals in the fields of heating, plumbing and air conditioning can benefit from the compact, easy-to-use digital temperature meter. The testo 922 measures temperatures quickly and accurately and determines the temperature difference directly. This allows you to carry out quick and efficient inspections and checks. The optional testo turbo printer allows you to print out on site.

Delivery Scope

testo 922 digital temperature meter, calibration certificate, batteries.

Technical Data

Temperature - Type K TC

Measuring range

-58.0° to 1832.0 °F / -50 to +1000 °C

Accuracy

±(0.9 °F + 0.3 % of mv) (-40.0° to 1652.0 ) / ±(0.5 °C + 0.3 % of mv) (-40 to +900 °C)

±(1.3 °F + 0.5 % of mv) (Remaining Range) / ±(0.7 °C + 0.5 % of mv) (Remaining Range)

Resolution

0.1 °F (-58° to 391.8 °F) / 0.1 °C (-50 to +199.9 °C)

1.0 °F (Remaining Range) / 1 °C (Remaining Range)
General technical data

Weight

6 oz. / 171 g

Dimensions

7 x 3 x 2 in. / 182 x 64 x 40 mm

Operating temperature

-4.0° to 122.0 °F / -20 to +50 °C

Housing

ABS

Number of channels

2-channel

Battery type

9V block battery, 6F22

Battery life

200 h (connected probe, backlight off); 45 h (radio mode, backlight off); 68 h (connected probe, backlight always on); 33 h (radio mode, backlight always on)

Storage temperature

-40.0° to 158.0 °F / -40 to +70 °C

Probes

Air Probes

Cross-Seller Robuster Luftfühler, TE Typ K
  Rugged air probe, T/C Type K

Order Number: 0602 1793

Air and Immersion / Penetration RFID Probe

Cross-Seller T/C probe head for air/immersion/penetration measurement
T/C probe head for air/immersion/penetration measurement (T/C Type K)

Order Number: 0602 0293

Food Probe

Cross-Seller Wasserdichter Lebensmittelfühler aus Edelstahl (IP65)
Waterproof food probe made of stainless steel (IP65)

Order Number: 0602 2292

Cross-Seller Wasserdichter Tauch-/Einstechfühler mit Metallschutzschlauch
Waterproof rugged immersion/penetration probe with metal protection hose Tmax 450°F, e.g. for checking the temperature in cooking oil

Order Number: 0628 1292

Immersion / Penetration Probe

Cross-Seller Efficient and fast-action immersion probe, waterproof
Efficient and fast-action immersion probe, waterproof, T/C Type K

Order Number: 0602 0593

Cross-Seller Waterproof immersion/penetration probe, TC Type K
Waterproof immerstion/penetration probe, T/C Type K

Order Number: 0602 1293

Cross-Seller Fast-action, waterproof immersion/penetration probe
Super-quick, waterproof immersion/penetration probe, T/C Type K

Order Number: 0602 2693

Cross-Seller Immersion measurement tip, flexible, for measurements in air
Flexible immersion measurement tip for measurements in air/exhaust gases (not suitable for measurements in smelters), TC Type K -104 to +1832 °F, 39" long, Ø 0.12"

Order Number: 0602 5693

Cross-Seller Tauch-Messspitze, biegsam, TE Typ K
Immersion tip, flexible
Measuring range: -328° to 1832 °F (-200° to 1000 °C)

Order Number: 0602 5792

Cross-Seller Immersion tip, flexible, TC Type K
Immersion tip, flexible

Order Number: 0602 5793

Immersion / Penetration RFID Probe

Cross-Seller No picture available
Wireless immersion/penetration probe, NTC, approved for USA

Order Number: 0613 1002

Surface RFID Probe

Cross-Seller Radio handle for plug-in probe heads
Wireless handle for attachable plug-in probe heads, incl. T/C adapter, approved for USA & Canada

Order Number: 0554 0191

Cross-Seller T/C probe head for surface measurement
T/C probe head for surface measurement (T/C Type K)

Order Number: 0602 0394

Surface probes

Cross-Seller Spare meas. head for pipe wrap probe, TC Type K
Spare measuring head with thermocouple strip for temperature probe with clamping bracket

Order Number: 0602 0092

Cross-Seller Fast-reaction paddle surface probe
Fast-reaction paddle surface probe, for measurements in inaccessible places, e.g. narrow apertures and slots, TC Type K

Order Number: 0602 0193

Cross-Seller Fast-action surface probe with sprung thermocouple strip
Fast-action surface probe with spring thermocouple , for uneven surfaces, short-term range to +932°F, T/C Type K

Order Number: 0602 0393

Cross-Seller Efficient, waterproof surface probe with small measurement head
Efficient, waterproof surface probe with small measurement head for flat surfaces, T/C Type K

Order Number: 0602 0693

Cross-Seller Fast-action surface probe with sprung thermocouple strip
Fast-action surface probe with spring thermocouple for uneven surfaces, short-term to +932°F, T/C Type K

Order Number: 0602 0993

Cross-Seller Waterproof surface probe with widened measurement tip
Waterproof surface probe with widenend measurement tip for flat surfaces, T/C Type K

Order Number: 0602 1993

Cross-Seller Flat head surface probe with telescopic handle max. 680 mm
Flat head surface probe with telescopic handle (max. 24 in.) for hard-to-reach areas, T/C Type K

Order Number: 0602 2394

Cross-Seller Pipe wrap probe for pipe diameter 5 to 65 mm
Pipe clamp probe for pipe diameter 0.2 to 2.5'', with replaceable measuring head. Measuring range to 536 °F short-term

Order Number: 0602 4592

Cross-Seller Clamp probe for measurements on pipes
Clamp probe for measurements on pipes, pipe diameter 0.6 to 1'' (max. 1''), meas. range to +266 °F short-term

Order Number: 0602 4692

Cross-Seller Magnetic probe (TC type K) - for surface temperatures
Magnetic probe, adhesive force approx. 20 N, with magnets, for measurements on metal surfaces

Order Number: 0602 4792

Cross-Seller Magnetfühler, Haftkraft ca. 10 N, mit Haft-Magneten
Surface temperature probe with magnet (TC type K), adhesive power 10 N – Measuring range -50 to +400°C

Order Number: 0602 4892

Cross-Seller Pipe wrap probe with velcro strip
Temperature probe with Velcro (TC Type K)

Order Number: 0628 0020

Thermocouples

Cross-Seller Thermocouple with TC adapter, flexible, 800 mm long
Thermocouple with T/C adapter, flexible, 32 in. long, fibre glass, T/C Type K

Order Number: 0602 0644

Cross-Seller Thermocouple with TC adapter, flexible, length 1500 mm
Thermocouple with T/C adapter, flexible, 60 in. long, fibre glass, T/C Type K

Order Number: 0602 0645

Cross-Seller Thermocouple with TC adapter, flexible, 1500 mm long, PTFE
Thermocouple with T/C adapter, flexible, 60 in. long, PTFE, T/C Type K

Order Number: 0602 0646

Accessories

Accessories

Cross-Seller 9V rech. battery for instrument
9V rechargeable battery for instrument

Order Number: 0515 0025

Additional accessories

Cross-Seller Handle for attachable measurement tips
Handle for attachable measuring tips

Order Number: 0409 1092

Cross-Seller Silicone heat paste
Silicone heat paste (14g), Tmax = +260°C

Order Number: 0554 0004

$ 32.00
excl. tax
Cross-Seller Extension cable
Extension cable, 15 ft., for Type K thermocouple probe

Order Number: 0554 0592

Cases

Cross-Seller testo 0516 1200 case

Order Number: 0516 1200

$ 101.00
excl. tax
Cross-Seller testo 0516 1201 case

Order Number: 0516 1201

$ 71.00
excl. tax

Humidity RFID Probe

Cross-Seller Radio Module for measuring instrument
Radio module for measuring instrument, 869.85 MHz, approval for the countries: DE, FR, UK, BE, NL, ES, IT, SE, AT, DK, FI, HU, CZ, PL, GR, CH, PT, SI, MT, CY, SK, LU, EE, LT, IE, LV, NO

Order Number: 0554 0188

Cross-Seller Radio Module for measuring 915.00 MHz
Wireless module for measuring instrument, 915.00 MHz FSK, approved for USA & Canada

Order Number: 0554 0190

Printer and accessories

Cross-Seller testo-Schnelldrucker IRDA mit kabelloser Infrarot-Schnittstelle
Compact printer, with IRDA technology offers fast, easy to read printouts of measurements at every job site.  Internal magnets will hold the printer to magnetic surfaces for hands free operation. *Compatible with any Testo device capable of IR or IRDA

Order Number: 0554 0549

Cross-Seller Spare thermal paper
Spare thermal paper, permanent ink

Order Number: 0554 0568

Transport Case

Cross-Seller TopSave
TopSafe, protects from impact and dirt

Order Number: 0516 0222

$ 54.00
excl. tax
