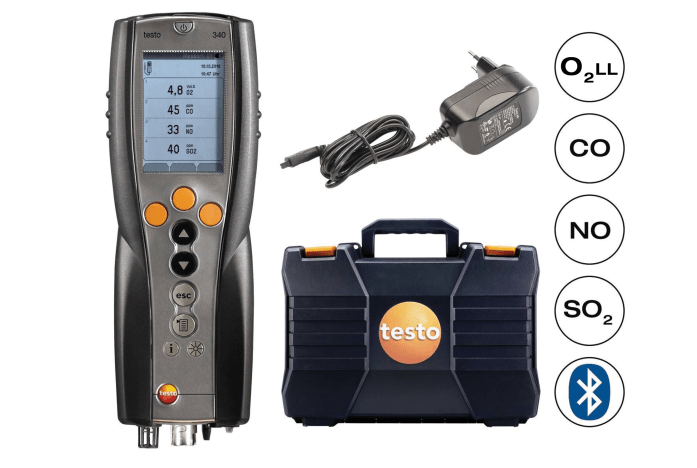

    testo 340 - Flue Gas Analyser (SO2 Kit)

    0563 9351
    £ 3,399.00 £ 4,078.80
    1
  1. Customisable Gas Sensors – Supports up to four configurable gas sensors for flexible and on-site replacements.
  2. Specialised SO2 Kit – Includes O2, CO, NO, and SO2 sensors for accurate sulfur dioxide monitoring.
  3. Extended Measurement Range - Accurately measures high gas concentrations without sensor overload.
  4. Designed for Industrial Use – Built for robust and demanding industrial applications.
  5. Seamless Data Management – Transfer and analyse measurement data easily on a PC or notebook.
    6. The testo 340 Flue Gas Analyser (SO2 Kit) is a high-performance emissions monitoring tool designed for industrial applications. With support for up to four gas sensors, extended measurement capabilities, and seamless PC integration, it ensures precise and reliable flue gas analysis. The specialised SO2 kit includes sensors for O2, CO, NO, and SO2, making it ideal for industries that require accurate sulfur dioxide measurement.
    The testo 340 Flue Gas Analyser (SO2 Kit) is engineered for professionals who require precise emissions monitoring in industrial environments. This advanced combustion gas analyser can be fitted with up to four configurable gas sensors, allowing for flexible and on-site customisation. The included SO2 kit features O2, CO, NO, and SO2 sensors, ensuring accurate total emissions measurements, particularly for sulfur dioxide-heavy applications.

    Designed to withstand industrial demands, the testo 340 offers an extended measurement range, allowing for accurate readings even in high-concentration gas environments. The automatic sensor protection system prevents overloads and ensures continuous operation without interruptions. Its precalibrated gas sensors enable quick replacements, reducing downtime and maintenance efforts.

    With seamless data management capabilities, users can transfer and analyse emissions data directly on a PC or notebook for detailed reporting and compliance tracking. Additionally, the measurement range of CO, NO, NOlow, and SO2 sensors can be increased by a factor of five, ensuring flexibility across different industrial applications.

    (Note: The sampling probe is sold separately and must be selected based on the application.)

    For leasing options and additional accessories, contact us today.

    testo 340 flue gas analyser, calibration certificate, shoulder strap, O2, CO, NO, SO2 sensors fitted, AC power supply.

    General technical data

    Weight
    960 g
    Dimensions
    283 x 103 x 65 mm
    Operating temperature
    -5 to +50 °C
    Product-/housing material
    TPE PC
    Protection class
    IP40
    Connectable probes
    1 x flue gas probe; 1 x temperature probe; 1 x differential pressure
    Product colour
    Black
    Battery life
    > 6h (Pumpe an, Displaybeleuchtung aus, bei 20°C)
    Display type
    graphic Display
    Display size
    160 x 240 pixels
    Display function
    Graphic display
    Power supply
    Battery block 3.7 V / 2.4 Ah, Mains unit 6.3 V / 2 A
    User defined fuels
    10 user-defined fuels incl. test gas as fuel
    Pump flow
    0.6 l/min (regulated)
    Hose length
    max. 7.8 m (corresponds to two probe hose extensions)
    Max. pos. press./flue gas
    50 mbar
    Max. neg. press./flue gas
    -200 mbar
    Maximum memory
    100 folders
    Storage per folder
    Max. 10 sites
    Storage per site
    Max. 200 logs
    Miscellaneous
    The max. number of logs is determined by the number of folders or sites
    Interface
    Bluetooth®; USB; IR/IRDA interface; gas outlet; Mains connection; probe input/ probe inputs; Differential Pressure
    Storage temperature
    -20 to +50 °C

    Flue gas probes

  6. Flue gas probes
    Modular flue gas probe, 700 mm, 500 °C
    Modular flue gas probe, 700 mm probe shaft length, Ø 8 mm, Tmax 500°C
      :
      0600 9767
      £ 449.00 £ 538.80
      1
    • Flue gas probes
      0600-9766-modular-flue-gas-probe
      Modular flue gas probe, 335 mm probe shaft length, Ø 8 mm, Tmax 500°C
        :
        0600 9766
        £ 370.00 £ 444.00
        1
      • Flue gas probes
        Modular flue gas probe
        Modular flue gas probe, 335 mm probe shaft length, Ø 8 mm, Tmax 1000°C
          :
          0600 8764
          £ 499.00 £ 598.80
          1
        • Flue gas probes
          Flue gas probe modular 700 mm 500 °C 0600 876
          Modular flue gas probe, 700 mm probe shaft length, Ø 8 mm, Tmax 1000°C
            :
            0600 8765
            £ 695.00 £ 834.00
            1
          • Flue gas probes
            Modular flue gas probe
            Modular flue gas probe with pre-filter, Ø 14 mm, 335 mm probe shaft length, Tmax 1000°C
              :
              0600 8766
              £ 860.00 £ 1,032.00
              1
            • Flue gas probes
              Flue gas probe modular 335 mm 1000 °C prefilter 0600 8767
              Modular flue gas probe with pre-filter, Ø 14 mm, 700 mm probe shaft length, Tmax 1000°C
                :
                0600 8767
                £ 943.00 £ 1,131.60
                1
              • Flue gas probes
                0600-7610
                The industrial probe set 1 200 °C enables the extractive sampling of flue gas analysed at high flue gas temperatures (up to 1 200 °C) or for applications involving large flue gas pipe diameters.
                  :
                  0600 7610
                  £ 1,313.00 £ 1,575.60
                  1
                • Flue gas probes
                  Flue gas probe for industrial engines
                  Flue gas probe for industrial engines, length 335 mm, Tmax +1000°C
                    :
                    0600 7555
                    £ 626.00 £ 751.20
                    1
                  • Flue gas probes
                    Flue gas probe with preliminary filter
                    Flue gas probe with pre-filter for industrial engines, length 335 mm, Tmax +1000°C
                      :
                      0600 7556
                      £ 665.00 £ 798.00
                      1

                      • Pitot tubes

                    • Pitot tubes
                      Staurohr
                      Stainless steel Pitot tube, length 350 mm, Ø 7 mm - for measuring flow velocity
                        :
                        0635 2145
                        £ 150.00 £ 180.00
                        1
                      • Pitot tubes
                        Staurohr
                        Stainless steel Pitot tube, length 1000 mm, Ø 7 mm - for measuring flow velocity
                          :
                          0635 2345
                          £ 439.00 £ 526.80
                          1

                          • Temperature probes

                        • Temperature probes
                          Combustion air temperatur probe
                          Combustion air temperature probe, immersion depth 60 mm
                            :
                            0600 9797
                            £ 110.00 £ 132.00
                            1

                            • Accessories

                          • Accessories
                            Hose extension
                            Hose extension - probe-instrument extension hose (length 2.8 m)
                              :
                              0554 1202
                              £ 199.00 £ 238.80
                              1
                            • Accessories
                              testo-Schnelldrucker IRDA mit kabelloser Infrarot-Schnittstelle
                              testo fast printer IRDA
                                :
                                0554 0549
                                £ 219.00 £ 262.80
                                1
                              • Accessories
                                Mains unit international
                                International mains unit
                                  :
                                  0554 1096
                                  £ 54.00 £ 64.80
                                  1
                                • Accessories
                                  testo easyEmission software
                                  testo easyEmission software
                                    :
                                    0554 3334
                                    £ 270.00 £ 324.00
                                    1
                                  • Accessories
                                    Battery charging station
                                    Battery-charging station, desktop charging station for optimizing the charge time
                                      :
                                      0554 1103
                                      £ 45.00 £ 54.00

                                      • Analysis of the gas atmosphere (thermal processes)

                                      Flue gas analysis is used for thermal manufacturing processes, from ongoing emission control, via setting and optimisation of combustion systems, through to process monitoring. Flue gas analysis instruments serve to optimise operations and save fuel. At the same time, flue gas measurement enables checking and monitoring of flue gas emission limit values laid down by the authorities, along with functional testing of permanently installed emission instruments. Flue gas analysis instruments are increasingly used for monitoring process and product quality.

                                      Advantages of the testo 340

                                      Ideal for measurements at high concentrations

                                      • When recording extremely high concentrations, the measuring range extension is automatically activated. This enables continuation of the measurement. The gas sensor is not subjected to any higher stress than it is at low gas concentrations. This ensures the sensor has the longest possible service life.

                                      Service measurement on industrial engines

                                      Flue gas analysis instruments are one of the items of equipment that are used on a daily basis by service engineers to achieve optimum tuning of engines. Flue gas measurement is used on industrial engines when they are commissioned, at regular maintenance intervals or for troubleshooting when they are running in an unstable way. The background to flue gas measurement is tuning the engine to the optimum operating parameters while complying with the limit value regulations in force. Maintenance work that is carried out regularly makes an important contribution to avoiding downtimes over the long term, to ensuring the quality of the system and thus a high level of efficiency and to having a significant influence on emission levels.

                                      Advantages of the testo 340
                                      Separate NO and NO2 measurement

                                      • The real NOx value is measured with the NO and NO2 sensor combination. In gas engines, the NO2 component of the NOx value can fluctuate greatly, so the separate measurement of each of the gases is necessary for correct NOx values.

                                      Measurements even at high CO concentrations

                                      • At unexpectedly high concentrations (up to 50,000 ppm), the automatic dilution of the sensor with fresh air allows measurements even when the engine conditions are not defined, without negatively affecting the service life of the sensor.

                                      Special flue gas probes for industrial engines as an accessory

                                      • These probes are highly heat-resistant and specially designed to compensate for different pressure conditions, e. g. for measurements before and after the catalytic converter.

                                      Engine-specific parameters

                                      • The most important parameters for industrial engines such as O2, CO, NO, NO2, NOx and Lambda can be displayed simultaneously.

                                      Service measurement on industrial burners

                                      The testo 340 flue gas analysis instrument offers service engineers a vast range of technical functions. In addition to compliance with environmental regulations, it can also be used to check correct functioning and to optimise burner efficiency. Flue gas measurement is used on industrial burners for safe and efficient commissioning, at regular maintenance intervals or for troubleshooting when they are running in an unstable way.

                                      Advantages of the testo 340
                                      Time saving through helpful instrument pre-settings

                                      • Typical fuels, a sensible sequence of flue gas parameters in the display and useful instrument settings are preset for each application. Tips on the display take the user through the measurement (no prior knowledge specific to the instrument needed). The testo 340 is ready for operation within just a few minutes.

                                      Unrestricted measuring at high concentrations

                                      • When commissioning burners or carrying out measurements on unfamiliar systems, very high concentrations can occur unexpectedly. The measuring range extension is automatically activated in such cases.

                                      Always ready for use – even in tough day-to-day work

                                      • The robust housing protects the measuring instrument from knocks.
