Thermocouple for exhaust gas temperature measurement (NiCr-N... - Thermocouple for exhaust gas temperature measurement

Order-Nr. 0600 8898

Find a distributor

Temperature measurement in parallel with the flue gas measurement on industrial engines
Thermocouple with fast response time
Can be installed on-site by the user
Heat protection handle for comfortable handling even at high temperatures

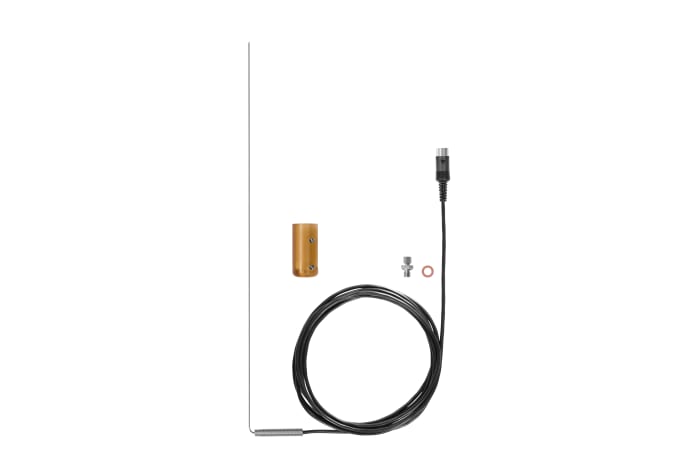

Thermocouple for exhaust gas temperature measurement (NiCr-Ni, length 15.7 in., Tmax. +1832 °F), with 94.5 in. connection cable and additional temperature protection

Details

Product Description

The thermocouple is available as an accessory for the Testo flue gas probes for industrial engines. The thermocouple can therefore be used in combination with the flue gas probe and compatible measuring instrument. This makes it possible to measure the flue gas temperature, in parallel with the flue gas measurement.

The thermocouple delivers the results of the temperature measurement very quickly thanks to its extremely short response time. It can be installed on-site by the user prior to the measurement. The heat protection handle provided also makes it easier to handle. Because this minimizes the risk of getting burned on the metal handle and guarantees safe work.

Applications

The thermocouple can be used (in combination with flue gas probe and measuring instrument) for the following purposes:

Measuring temperature during the flue gas measurement on industrial engines
Measuring temperature during the flue gas measurement on catalytic converters
Measuring temperature during the flue gas measurement on other industrial installations

Delivery Scope

NiCr-Ni thermocouple (430 mm long, connection cable 4 m long) including heat protection handle.

Related products

Flue gas probe for industrial engines

Order-Nr. 0600 7555
- Made of metal: no melting of the handle due to radiated heat from the flue gas duct
- Additional particle filter in the hose provides protection from contamination
Details
Flue gas probe with preliminary filter for industrial engines

Order-Nr. 0600 7556
- Useful for measurements on diesel engines: preliminary filter provides protection from diesel particulates
- Made of metal: no melting of the handle due to radiated heat from the flue gas duct
Details
testo 340 - Combustion Analyzer for Commercial and Industrial Applications

Order-Nr. 0632 3340
- Flue gas analysis with up to 4 gas sensors - freely configurable with sensor change on site by the user
- testo 340 flue gas analyzer, calibration protocol, shoulder strap, O₂ sensor and integrated flow and pressure difference measurements
Details
testo 340 - Boiler and Burner Combustion Analyzer Kit

Order-Nr. 400563 3342
- Flue gas analysis with up to 4 gas sensors - freely configurable with sensor change on site by the user
- Optimize the combustion process and increasing fuel efficiency
Details
testo 340 - Engine Kit (for tuning and combustion maintenance)

Order-Nr. 400563 3343
- Flue gas analysis with up to 4 gas sensors - freely configurable with sensor change on site by the user
- For combustion tuning IC engines (spark-Ignited rich and lean burn and compression-ignited diesel engines)
Details
testo 350 - Portable emission analyzer

Order-Nr. 0632 3510
- Flue gas analysis with up to 6 gas sensors - freely configurable with sensor change on site by the user
- Increased measurement range for unlimited measurements even when gas concentrations are higher
Details
testo 350 - Control Unit (operates the 350 analyzer box)

Order-Nr. 0632 3511
- Flue gas analysis with up to 6 gas sensors - freely configurable with sensor change on site by the user
- testo 350 Analysis Box just as easy to use when not positioned at measurement site
Details
testo 350 - Boiler and Burner Kit

Order-Nr. 400563 3512
- Optimize fuel efficiency and reduce emissions
- Identify and troubleshoot bad burners, inlet air, or fuel delivery problems
Details
testo 350 - Engine Kit (for Compliance testing & tuning and combustion maintenance)

Order-Nr. 400563 3513
- For EPA Emissions Compliance testing – EPA test methods OTM 39, OTM 38, 7E, CTM-030, CTM-034, ASTM D6522, SCAQMD 1110.2, SCAQMD 1146. Its also used for state, local and company testing.
- For combustion tuning IC engines (spark-Ignited rich and lean burn and compression-ignited diesel engines)
Details
testo 350 - Turbine Kit for Low NOx and Low CO emissions testing

Order-Nr. 400563 3514
- Measures Low NOx (NO + NO2 with 0.1 ppm) Low CO (0.1 ppm), O2, on EPA dry basis
- Confirm emissions baseline and permit status
Details

Technical Data

General technical data
Weight	6.42 oz. / 182 g
Length probe shaft	16.929 in. / 430 mm
Housing	Metal housing
Cable length	13.123 ft. / 4 m
Diameter probe shaft	0.079 in. / 2 mm
Temperature maximum	1,832 °F / 1,000 °C
Product colour	Black; silver
