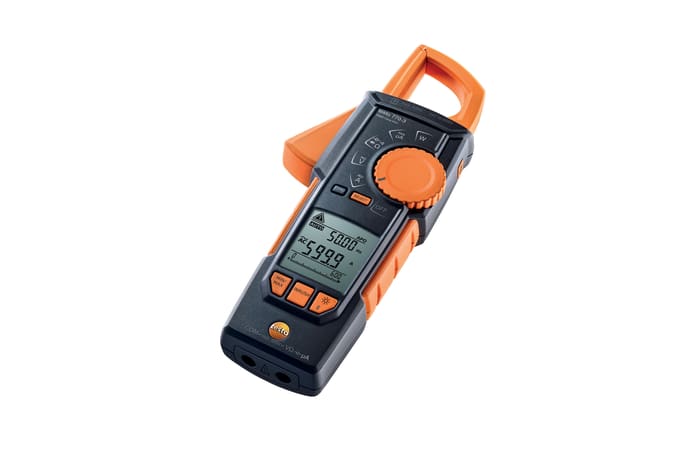

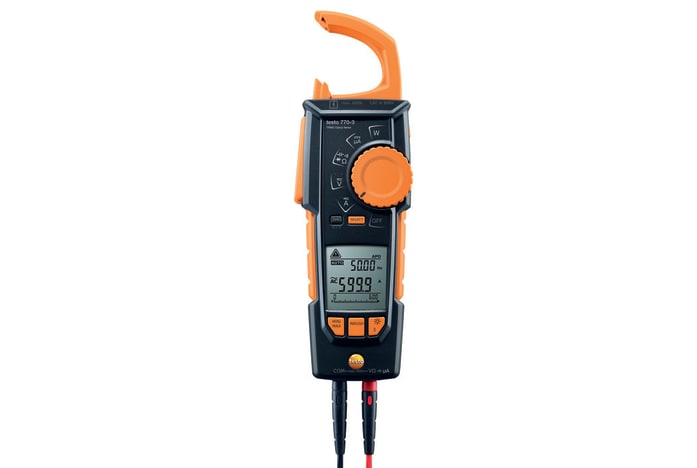

testo 770-3 - TRMS Clamp meter with Bluetooth

0590 7703
£ 179.00 £ 214.80
1
  • Easy to operate thanks to the fully retractable pincer arm
  • Auto AC/DC and large two-line display
  • Improved TRMS method
  • Bluetooth connection to your smartphone (with the testo Smart App)
  • Non-contact measurement on tightly packed cables is really easy and reliable with the testo 770-3 clamp meter. Its innovative grab mechanism will make your work easy. The most powerful model in the clamp meter series, it offers lots of additional functions for those challenging tasks that you are faced with on a daily basis, e.g. communication with the testo smart app via Bluetooth.

    Overview

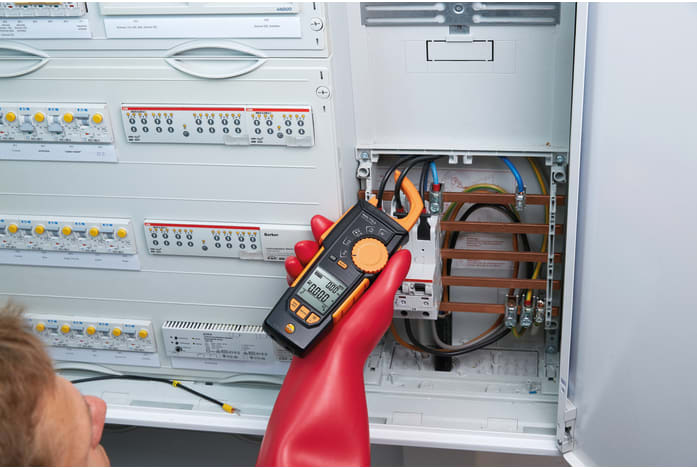

    The three instruments in the testo 770 clamp meter family are ideally suited for current measurement in switching cabinets. One of the two pincer arms can be fully retracted into the instrument. This unique grab mechanism means that cables in tight switching cabinets can be easily grabbed. The automatic measurement parameter detection also ensures reliable work: in the current and voltage area, all three instruments detect direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically.
    The testo 770-1 model is the standard version for daily measuring tasks, including starting current measurement.
    The testo 770-2 also has a μA range as well as an integrated temperature adapter for all type K thermocouples.
    In addition to that, the testo 770-3 includes real-time power measurements (Watts), Power Factor, and Bluetooth. The free Testo Smart App can be used for remote viewing, monitoring, data logging, and creating reports via Bluetooth. The powerful app allows you to create custom reports that include photos, data, and graphs that can be saved or sent via email.


    testo 770-3 Clamp Meter includes batteries, 1 set of measuring cables. Additional features: True RMS measurement function, μA measurement range, integrated temperature adapter for all type K thermocouples. Connects to testo Smart App via bluetooth for performance measurement function and downloadable reports. Also auto-calculates Power/Wattage.

    Temperature - TC Type K (NiCr-Ni)

    Measuring range
    -20 to +500 °C
    Accuracy
    ±1 °C (0 to +100 °C)
    Resolution
    0.2 °C

    DC voltage

    Measuring range
    1.0 to 600.0 V
    Resolution
    max. 1 mV
    Accuracy
    ± (0.8 % of mv + 3 Digit)

    AC voltage

    Measuring range
    1.0 mV to 600.0 V
    Resolution
    max. 1 mV
    Accuracy
    ± (1 % of mv + 3 Digit)

    Air probes

    Surface probes

  • Surface probes
    Pipe wrap probe for pipe diameter 5 to 65 mm
    Temperature probe (TC type K) with clamping bracket for measurements on pipes with Ø 5-65 mm – Measuring range -60 to +130°C, briefly up to +280°C
      :
      0602 4592
      £ 126.00 £ 151.20
      1
    • Surface probes
      Clamp probe for measurements on pipes
      Clamp probe (TC type K) for temperature measurements on pipes with Ø 15-25 mm – Measuring range -50 to +100°C, briefly up to +130°C
        :
        0602 4692
        £ 70.00 £ 84.00
        1
      • Surface probes
        Pipe wrap probe with velcro strip
        Temperature probe with Velcro (TC Type K)
          :
          0628 0020
          £ 45.00 £ 54.00
          1
        • Surface probes
          Magnetic probe (TC type K) - for surface temperatures
          Surface temperature probe with magnet (TC type K), adhesive power 20 N – Measuring range -50 to +170°C
            :
            0602 4792
            £ 151.00 £ 181.20
            1
          • Surface probes
            Magnetfühler, Haftkraft ca. 10 N, mit Haft-Magneten
            Surface temperature probe with magnet (TC type K), adhesive power 10 N – Measuring range -50 to +400°C
              :
              0602 4892
              £ 168.00 £ 201.60
              1
            • Surface probes
              Fast-action surface probe with sprung thermocouple strip
              Fast-action surface probe (TC type K) – measuring range -60 to +300 °C, short-term up to +500 °C
                :
                0602 0393
                £ 128.00 £ 153.60
                1
              • Surface probes
                Fast-action surface probe with sprung thermocouple strip
                Fast-action, angled surface temperature probe (TC type K) for flat and uneven surfaces – measuring range: -60 to +300 °C
                  :
                  0602 0993
                  £ 147.00 £ 176.40
                  1
                • Surface probes
                  Fast-reaction paddle surface probe
                  Fast-reaction paddle surface probe (TC type K) - Measuring range: - 0 to +300°C
                    :
                    0602 0193
                    £ 128.00 £ 153.60
                    1
                  • Surface probes
                    Waterproof surface probe with widened measurement tip
                    Waterproof surface temperature probe with widened measuring tip (TC type K) for flat surfaces – measuring range -60 to +400 °C
                      :
                      0602 1993
                      £ 63.00 £ 75.60
                      1
                    • Surface probes
                      Efficient, waterproof surface probe with small measurement head
                      Waterproof surface temperature probe with a small measuring head (TC type K) – measuring range: -60 °C to +1000 °C
                        :
                        0602 0693
                        £ 110.00 £ 132.00
                        1
                      • Thermocouples


                        Ideal for non-contact current measurement on tightly packed cables

                        • Fully retractable pincer arm, auto AC/DC, large two-line display, true root mean square (TRMS) measurement, starting current, power and μA measurement, temperature adapter, Bluetooth®, in combination with the testo Smart App or testo Thermography App, display of readings on smartphones/tablets, easy documentation and sending of reports by e-mail
                        Overview of applications

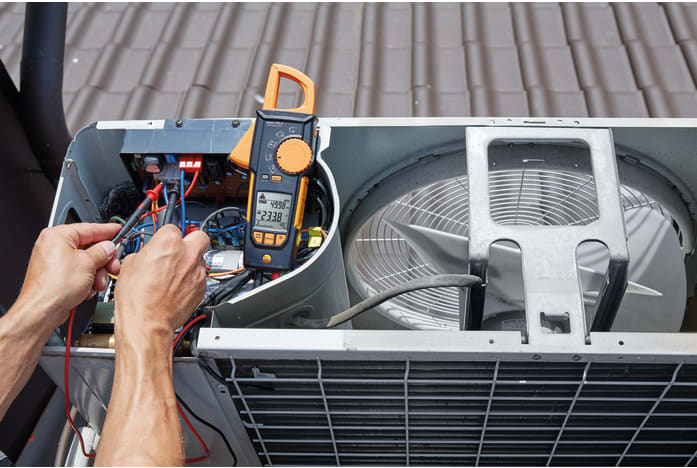

                        • Current consumption measurement, testing voltage supply in live wires, measuring the ionization flow of heating systems, power measurement, easy temperature checking
